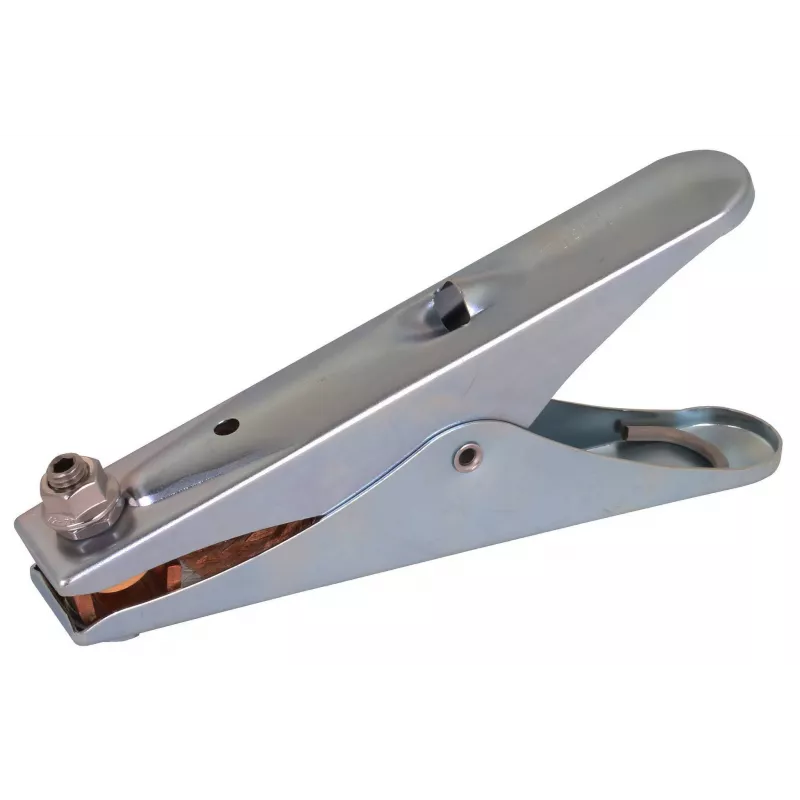

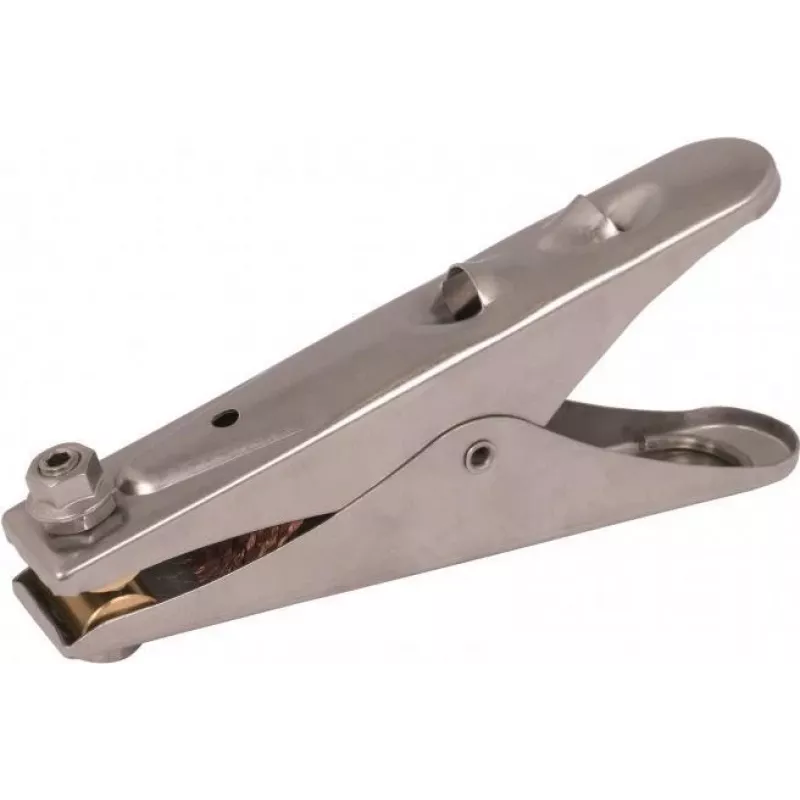

DEHN 546000 Terminal de ligação à terra L 205 mm aço zincado a quente

For reliable temporary earthing and potential equalization in outdoor and industrial environments, this DEHN earthing clamp provides a low-resistance connection to round and flat conductors. Its hot-dip galvanized steel construction ensures long-term corrosion resistance, making it suitable for lightning protection systems and other demanding applications.

Who is it for

Electricians, lightning protection installers, and maintenance personnel who need a robust, weather-resistant clamp for earthing and bonding tasks.

Main features

• Hot-dip galvanized steel for excellent corrosion protection
• Accepts round conductors 8–10 mm diameter and flat conductors up to 30 mm width
• M10 screw terminal for secure, low-resistance connection
• Clamp-on installation without special tools
• Overall length 205 mm for easy handling

Specifications

• Product Type: Earthing Clamp
• Material: Steel, hot-dip galvanized
• Overall Length: 205 mm
• Compatible Round Conductor Diameter: 8 - 10 mm
• Compatible Flat Conductor Width: Up to 30 mm
• Connection Terminal: M10 Screw
• Application: Temporary earthing, potential equalization, lightning protection
• Corrosion Protection: Hot-dip galvanized
• Installation Method: Clamp-on
• Color: Metallic Grey

Tips

Ensure the conductor surface is clean before clamping to achieve the lowest possible contact resistance. Periodically check the clamp for signs of corrosion or loosening in harsh environments.
