DEHN 610020 Conector de ligação para elétrodos de terra de 20 mm

Connect reliably to 20 mm deep earth electrodes with the DEHN 610020 connection clamp. Hot-dip galvanized steel construction ensures long-term corrosion resistance in buried applications, compliant with DIN EN 62561-1.

Overview

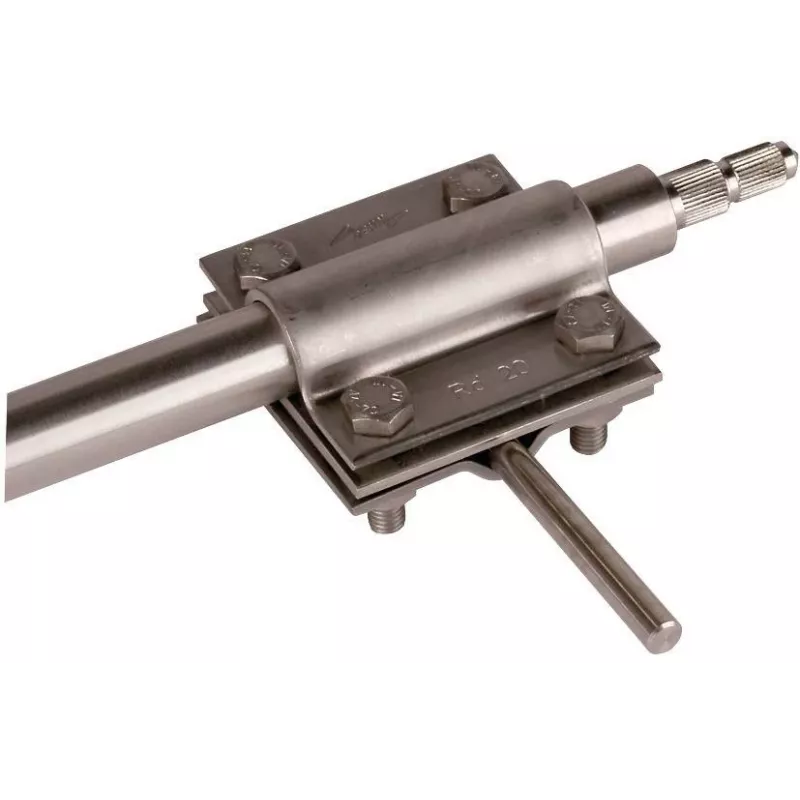

The DEHN 610020 is a screw clamp designed for earthing and lightning protection systems. It accommodates a 20 mm diameter earth electrode and accepts round conductors from 8 to 10 mm or flat conductors up to 30 x 3.5 mm.

What stands out

• Hot-dip galvanized steel for durability in soil
• Accepts both round and flat conductors
• Meets DIN EN 62561-1 standard
• Simple screw clamp installation

Technical details

• Product type: Connection clamp
• Application: Deep earth electrode connection
• Earth electrode diameter: 20 mm
• Round conductor diameter: 8 - 10 mm
• Flat conductor dimensions: 30 x 3.5 mm
• Material: Hot-dip galvanized steel (St/tZn)
• Corrosion protection: Hot-dip galvanized
• Connection method: Screw clamp
• Standard compliance: DIN EN 62561-1
• Intended use: Earthing and lightning protection systems
• Installation environment: Outdoor, buried
• Number of conductor connections: 1
• Mounting type: Clamp-on

Our verdict

A robust, standard-compliant clamp for secure earthing connections in outdoor and buried environments.
