DEHN abraçadeira universal VK A UNI V2, aço galvanizado a quente, para condutor redondo 8-10 mm e condutor plano 30x3,5/30x4 mm 308026

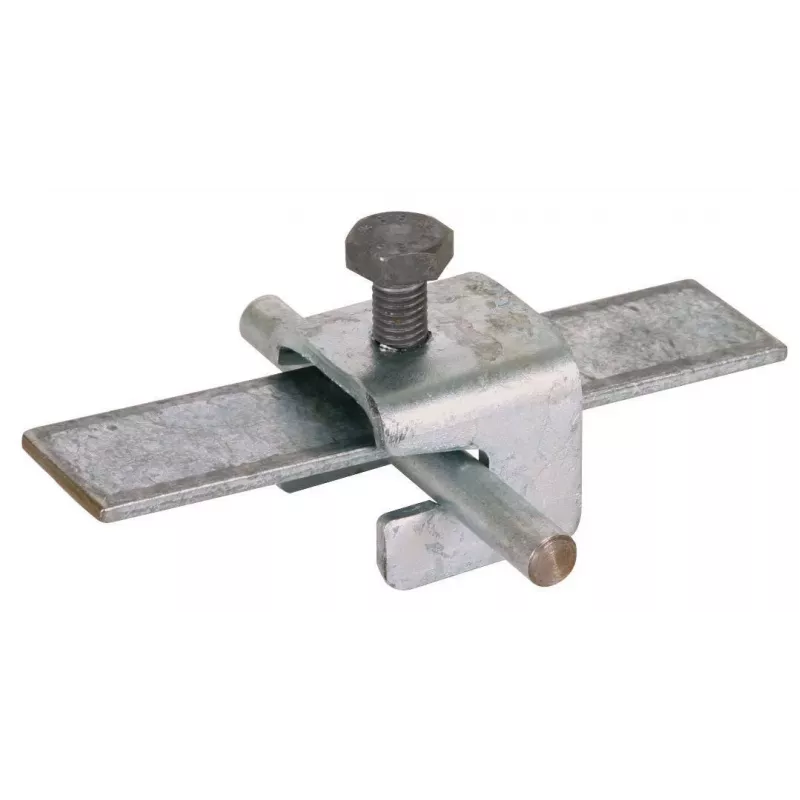

Installers working on lightning protection and earthing systems need a reliable way to join different conductor types. The DEHN Universal Connection Clamp VK A UNI V2 (308026) connects round conductors of 8–10 mm diameter and flat or strip conductors of 30 x 3.5 mm or 30 x 4 mm in cross or parallel configurations. Its steel body with hot-dip galvanization provides high corrosion resistance for outdoor and indoor use.

Key specifications

• Universal connection: cross and parallel
• Round conductor diameter: 8–10 mm
• Flat/strip conductor dimensions: 30 x 3.5 mm, 30 x 4 mm
• Number of conductors: 2
• Screw: M8 hexagon, steel, hot-dip galvanized
• Material: steel, hot-dip galvanized (tZn)
• Complies with EN 62561-1

Why choose it

The clamp's universal design reduces inventory by handling multiple conductor types. Hot-dip galvanization ensures long-term durability even in harsh environments, and the M8 hexagon screw allows secure tightening with standard tools.

Ideal use cases

• Lightning protection system connections
• Earthing and bonding applications
• Joining round to flat conductors
• Outdoor installations subject to weather

Good to know

The clamp is designed for two conductors and is suitable for both cross and parallel arrangements. No additional surface treatment is required after installation.
