DEHN DEHNgrip suporte de condutor pré-montado 207109

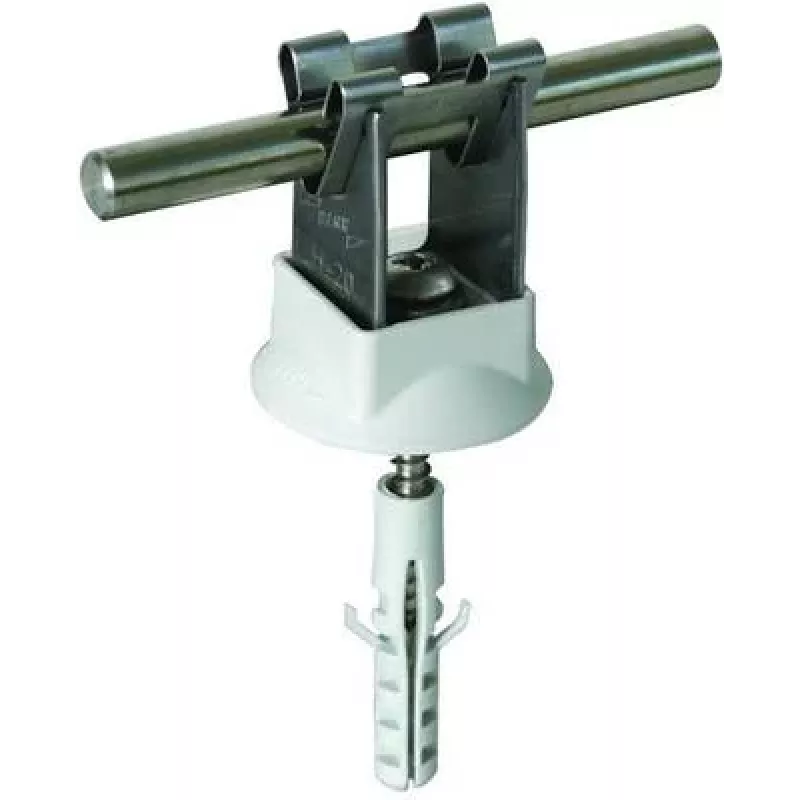

Conductor holder for external lightning protection systems, pre-assembled and ready for immediate installation. The DEHNgrip 207109 securely fastens a single round conductor with a diameter of 8 to 10 mm, providing reliable fixation on building facades and roofs.

Advantages

Pre-assembled design saves installation time and ensures consistent quality. The holder is made of UV-stabilized plastic, offering excellent weather resistance and long service life even in harsh outdoor conditions. Its grey colour (RAL 7035) blends discreetly with most building exteriors.

Suitable for

• External lightning protection systems on residential and commercial buildings
• Mounting round conductors with diameters from 8 to 10 mm
• Installations requiring screw mounting on flat surfaces

Key specifications

• Conductor diameter range: 8 – 10 mm
• Mounting type: Screw mounting (M6)
• Material: UV-stabilized plastic
• Stand-off height: 20 mm
• Base plate dimensions: 40 x 40 mm
• Operating temperature range: -50 °C to +100 °C

Recommendations

For best results, pair with DEHN round conductors and appropriate fasteners. Ensure the mounting surface is clean and stable. Use one holder every 0.8 to 1.0 m along vertical runs and every 0.5 m along horizontal runs, following local lightning protection standards.
