DEHN DM RD8.10 FL30X3.5 D114MM TPE478597 TPE (478597)

Flexible connection component for lightning protection and earthing systems, accommodating thermal expansion and movement with high corrosion resistance.

Overview

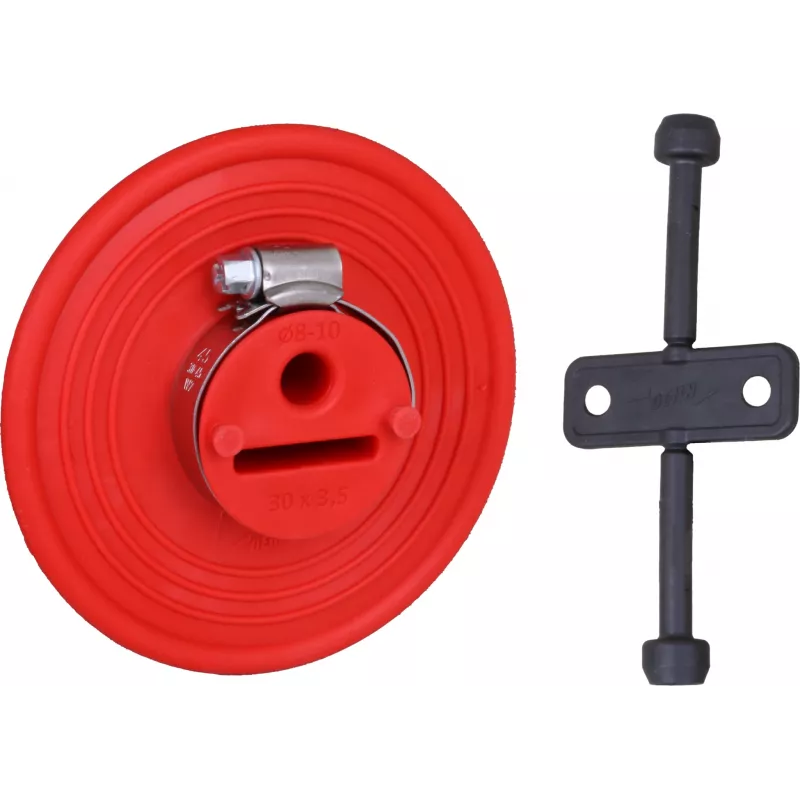

The DEHN DM RD8.10 FL30X3.5 D114MM TPE478597 TPE (478597) is a flexible connection component designed for use in lightning protection and earthing systems. It provides a reliable connection between round and flat conductors while accommodating thermal expansion and movement.

What stands out

• Connects round conductors (8-10 mm diameter) and flat conductors (30 x 3.5 mm) via clamp connections.
• Base plate diameter of 114 mm ensures stable surface mounting.
• Made from stainless steel (V2A) for high corrosion resistance and durability.
• Suitable for outdoor and indoor use, with UV resistance and a wide temperature range (-40°C to +80°C).

Technical details

• Product Type: Flexible Connection Component
• Material: Stainless Steel (V2A)
• Round Conductor Diameter Range: 8 - 10 mm
• Flat Conductor Dimensions: 30 x 3.5 mm
• Base Plate Diameter: 114 mm
• Mounting Type: Surface mounting
• Number of Connections: 1x Round, 1x Flat
• Screw Material: Stainless Steel
• UV Resistance: Yes
• Temperature Range: -40°C to +80°C

Our verdict

A robust and flexible connection solution for lightning protection and earthing systems, offering reliable performance in demanding environments.
