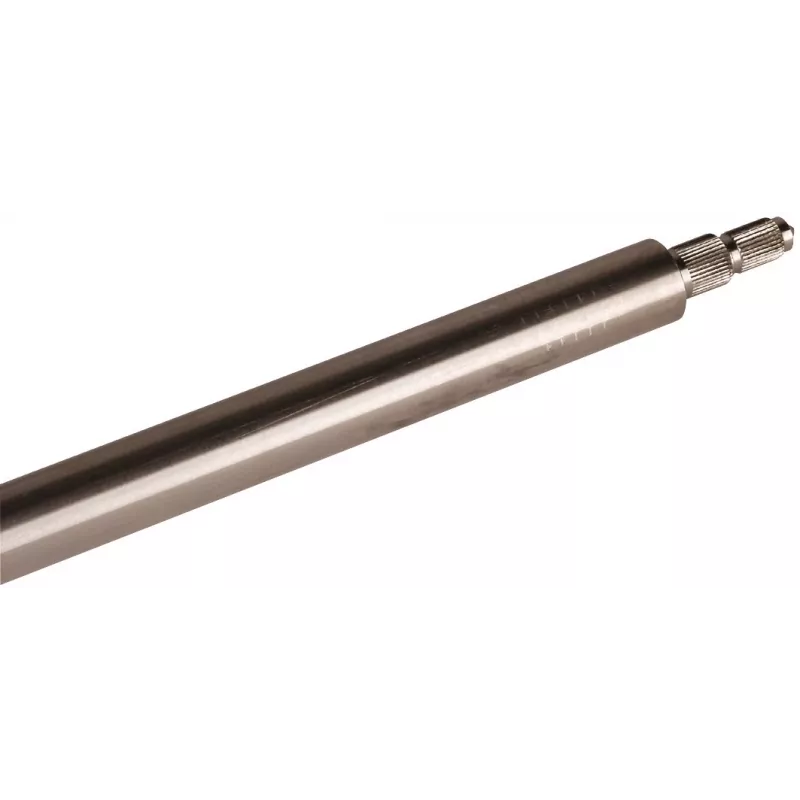

DEHN elétrodo de terra profundo D 20mm L 1000mm NIRO TE 20 1000 AZ V4A (620903)

Stainless steel V4A deep earth electrode with 20 mm diameter and 1000 mm length, engineered for highly corrosive soil conditions in earthing and lightning protection systems.

Overview

The DEHN TE 20 1000 AZ V4A is a solid rod electrode made from high-grade stainless steel (V4A, material 1.4571). It is designed for driven installation into the ground to dissipate fault currents and lightning currents. The threaded connection allows coupling with additional rods for deeper installations.

What stands out

• Corrosion-resistant stainless steel V4A for aggressive soils
• Threaded design for easy extension
• High mechanical and chemical stress resistance
• Compatible with DEHN earthing system components

Technical details

• Material: Stainless steel V4A (1.4571)
• Diameter: 20 mm
• Length: 1000 mm
• Connection: Threaded for coupling
• Application: Earthing and lightning protection

Our verdict

A robust deep earth electrode for demanding environments, ensuring reliable earthing in corrosive soils.
