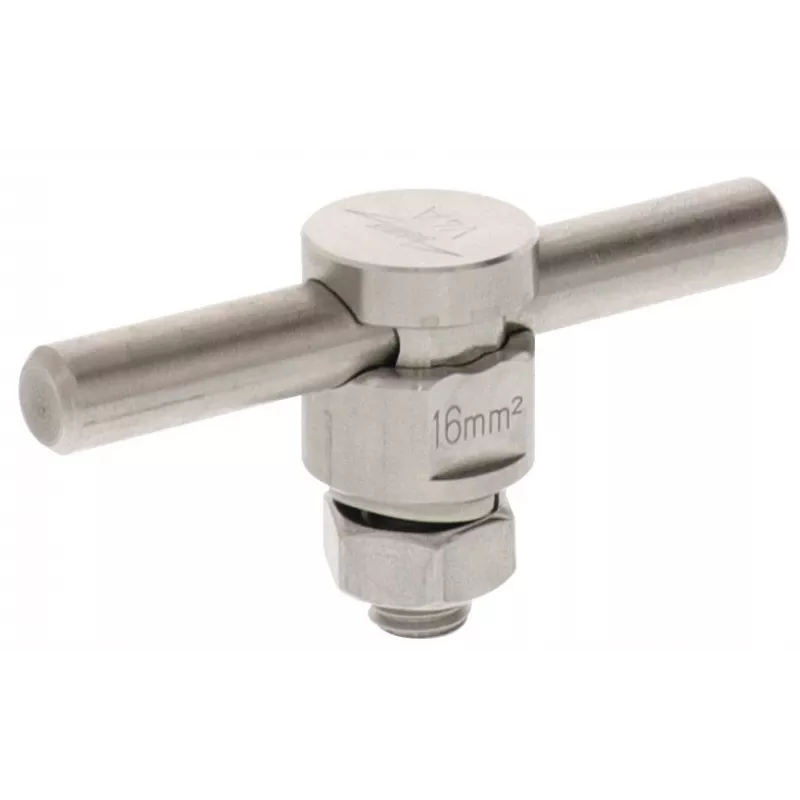

DEHN KSV 6.10 AQ16 50 V4A conector em cruz para condutor redondo 6-10 mm 540122

The DEHN KSV 6.10 AQ16 50 V4A cross-rod connector stands out for its high-grade stainless steel (V4A) construction, engineered for demanding outdoor and industrial environments where corrosion resistance is critical. It provides a robust cross connection for round conductors with diameters from 6 to 10 mm, ensuring reliable equipotential bonding and earthing in lightning protection systems.

Highlights

• Material: Stainless steel V4A (e.g., 1.4404 / AISI 316L) for superior corrosion resistance
• Compatible with round conductors 6–10 mm diameter
• Cross connection design for two intersecting conductors
• Hexagon screw M8 with 15 Nm tightening torque
• Complies with EN 62561-1

In daily use

This connector is intended for outdoor and aggressive environments, including industrial sites, where long-term durability is essential. Its clamp/screw terminal mounting method provides a secure and permanent connection, and the metallic silver finish blends with standard installation hardware.

Full specifications

• Product type: Cross-rod connector
• Application: Lightning protection, earthing, equipotential bonding
• Material: Stainless steel V4A
• Conductor type: Round conductors (Rd)
• Conductor diameter range: 6–10 mm
• Connection type: Cross connection
• Number of conductors: 2 (crossing)
• Screw type: Hexagon screw
• Screw size: M8
• Tightening torque: 15 Nm
• Installation environment: Outdoor, industrial, aggressive environments
• Mounting method: Clamp / screw terminal
• Colour: Metallic silver (natural stainless steel)

Final note

For reliable, corrosion-resistant cross connections in lightning protection and earthing systems, the DEHN KSV 6.10 AQ16 50 V4A delivers the performance expected from a specialist in surge protection and earthing technology.
