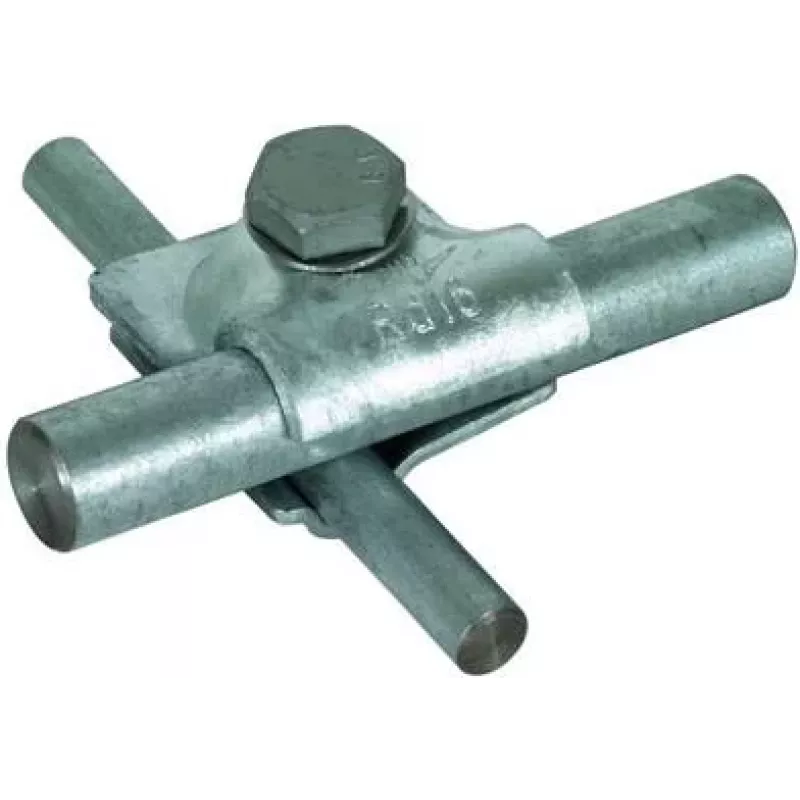

DEHN MV abraçadeira 392050 St/tZn conector universal em cruz e paralelo

The DEHN MV Clamp 392050 is a universal connector for lightning protection and earthing systems, engineered to join round and flat conductors with a cross or parallel connection. Made from hot-dip galvanized steel, it ensures high corrosion resistance and mechanical strength for outdoor and indoor installations.

Advantages

This clamp accommodates round conductors with diameters from 8 to 10 mm and flat conductors up to 30 mm wide, providing flexibility across various conductor types. The M8 screw connection delivers a secure and durable joint, while the hot-dip galvanized finish offers long-lasting protection against environmental factors.

Suitable for

• Lightning protection systems
• Earthing and bonding applications
• Cross and parallel conductor connections
• Outdoor and indoor environments

Key specifications

• Material: Steel (St)
• Surface treatment: Hot-dip galvanized (tZn)
• Round conductor diameter: 8 - 10 mm
• Flat conductor width: up to 30 mm
• Connection type: Cross and parallel
• Screw size: M8
• Short-circuit current (I_k): 50 kA (1s)
• Standard compliance: EN 62561-1

Recommendations

For reliable and code-compliant bonding in lightning protection systems, pair this clamp with DEHN conductors and accessories. Ensure proper tightening of the M8 screw to achieve the specified short-circuit current rating.
