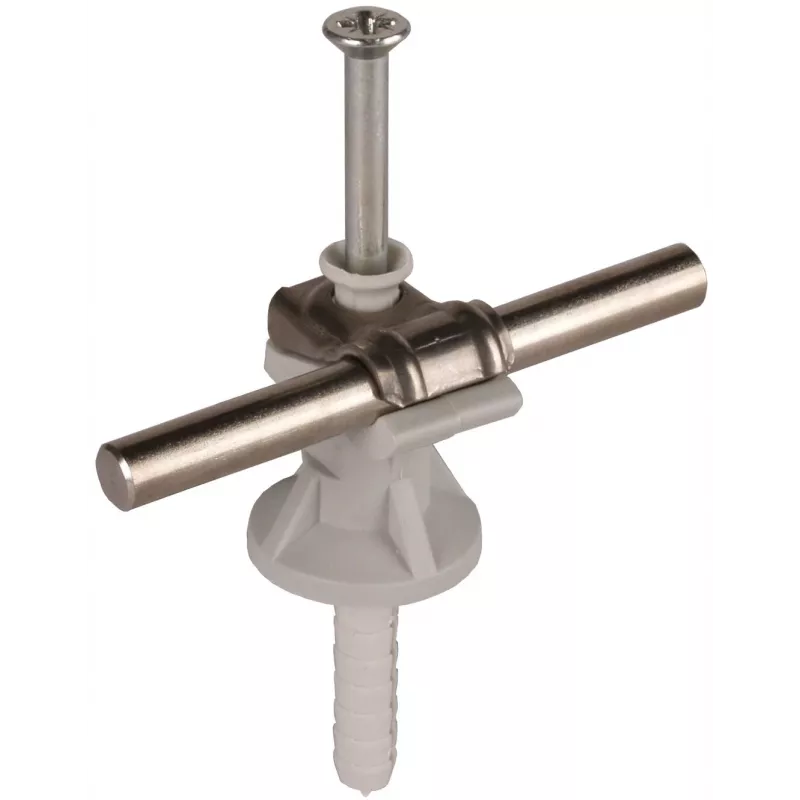

DEHN + SÖHNE NIRO-K suporte de condutor cinzento para cabos redondos 6-10 mm, altura 30 mm 250001

This conductor holder from the NIRO-K series provides a secure and corrosion-resistant mounting solution for round conductors in lightning protection and earthing systems. Unlike standard holders, it features a stainless steel construction that withstands harsh environmental conditions, making it suitable for both outdoor and indoor use.

Highlights

• Stainless steel (NIRO-K) for high corrosion resistance
• Accommodates round conductors with diameter 6–10 mm
• Mounting height 30 mm for proper clearance
• Surface mount design with screw fastening (screws not included)
• Grey colour for discreet installation

In daily use

The holder is engineered for reliable conductor fixing in lightning protection systems. Its stainless steel body resists weathering, UV exposure, and temperature extremes from -40°C to +80°C, ensuring long-term performance. The 40 x 40 mm base provides stable support, and the single-conductor design simplifies installation.

Full specifications

• Product type: Conductor Holder
• Material: Stainless Steel (NIRO-K)
• Colour: Grey
• Conductor diameter range: 6 - 10 mm
• Mounting height (H): 30 mm
• Application: Lightning Protection, Earthing Systems
• Mounting type: Surface Mount
• Corrosion resistance: High
• UV resistance: Yes
• Suitable conductor shape: Round
• Standard compliance: IEC 62561-1
• Temperature range: -40°C to +80°C
• Base dimensions (approx.): 40 x 40 mm
• Number of conductors: 1
• Environmental use: Outdoor / Indoor
• Manufacturer series: NIRO-K
• Fastening method: Screws (not included)
• Resistance to weathering: Excellent

Final note

A robust stainless steel holder for secure conductor fixing in demanding environments.
