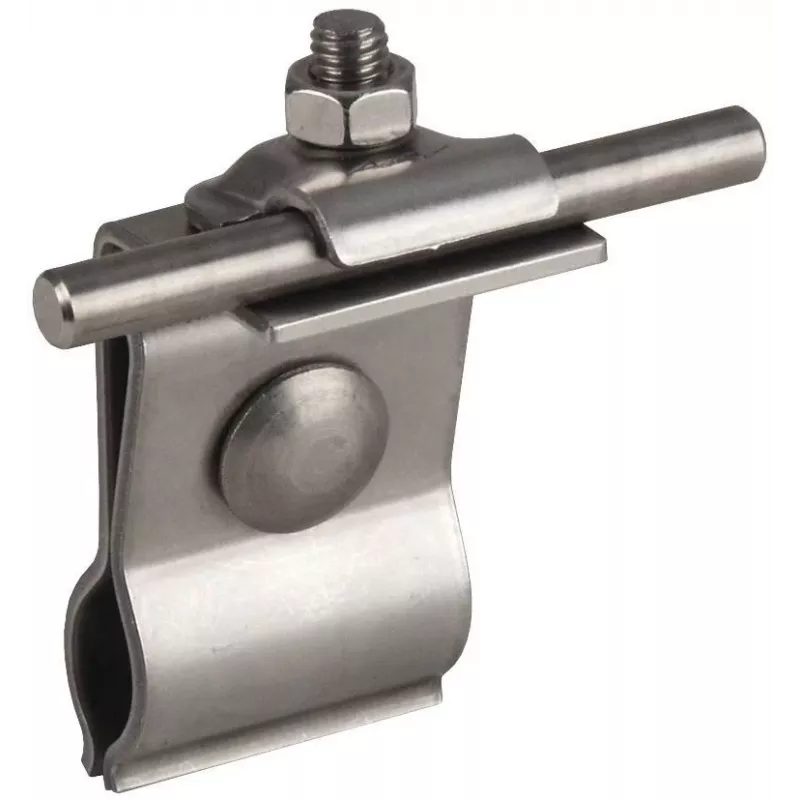

DEHN suporte de condutor de telhado para telhados metálicos, aço inoxidável, fio redondo de 8 mm, fixação por abraçadeira, 223010

On a standing seam metal roof, a lightning protection installer needs a reliable way to secure an 8 mm round conductor without piercing the roof skin. The DEHN 223010 roof conductor holder clamps directly onto the seam, providing a corrosion-resistant stainless steel fastening point that maintains the roof's weathertight integrity.

Key specifications

• Material: Stainless steel (V2A)
• Conductor type: Round conductor
• Conductor diameter: 8 mm
• Roof type compatibility: Metal roofs, standing seam roofs
• Mounting type: Clamp-on
• Roof penetration: No roof skin penetration required
• Corrosion resistance: High
• UV resistance: High
• Application: Lightning protection systems, earthing systems
• Installation method: Screw clamping
• Operating temperature range: -40°C to +80°C
• Color: Metallic (stainless steel)
• Product function: Conductor fastening
• Fastening element: Hexagon screw
• Resistance to weathering: Excellent

Why choose it

The DEHN 223010 is engineered for long-term durability on exposed metal roofs. Its stainless steel construction resists corrosion and UV degradation, ensuring a secure hold for the conductor across a wide temperature range. The clamp-on design eliminates the need for roof penetration, preserving the roof's waterproofing and simplifying installation.

Ideal use cases

• Lightning protection on standing seam metal roofs
• Earthing system conductor routing on metal roof surfaces
• Retrofit installations where roof penetration is not desired

Good to know

The holder is designed for 8 mm round conductors and is fastened using a hexagon screw. It is suitable for use in lightning protection and earthing systems where a non-penetrating, corrosion-resistant fixing is required.
