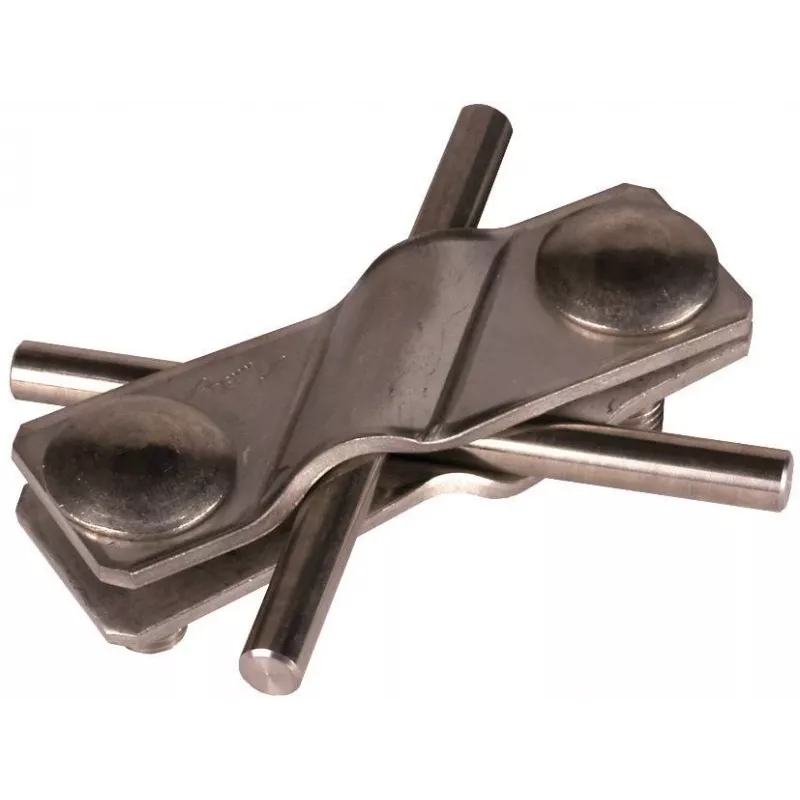

DEHN SV Terminal NIRO Terminal de ligação equipotencial de proteção para condutor redondo 7-10 mm, aço inoxidável, 308229

In earthing and lightning protection systems, creating a reliable connection between a round conductor and a secondary conductor can be a challenge, especially in corrosive environments. The DEHN SV-Klemme NIRO solves this by providing a robust clamp made entirely of stainless steel, ensuring long-lasting performance and high corrosion resistance.

Who is it for

This clamp is intended for electricians, lightning protection installers, and maintenance professionals who need to bond round conductors with diameters from 7 to 10 mm to other conductors with a cross-section of up to 10 mm². It is suitable for both indoor and outdoor use, making it versatile for various installation scenarios.

Main features

• Stainless steel construction for high corrosion resistance.
• Accepts round conductors with diameters from 7 to 10 mm.
• Connects to round or flat conductors with cross-section up to 10 mm².
• Screw connection method for secure and reliable bonding.
• Compliant with DIN EN 62561-1 for lightning protection components.

Specifications

• Product type: Protective bonding clamp
• Material: Stainless steel
• Main conductor type: Round
• Main conductor diameter: 7 - 10 mm
• Secondary conductor type: Round or flat
• Secondary conductor cross-section: 10 mm²
• Connection method: Screw
• Application: Earthing, equipotential bonding, lightning protection
• Corrosion resistance: High
• Mounting type: Clamp-on
• Number of connections: 2
• Standard compliance: DIN EN 62561-1

Tips

Ensure the conductor surfaces are clean before clamping to achieve optimal electrical contact. Tighten the screw to the recommended torque to avoid damage while maintaining a secure connection. For outdoor installations, the stainless steel material provides excellent durability against weather and environmental factors.
