DEHN terminal de ligação 620915 aço inoxidável 20mm para ligação à terra e proteção contra raios

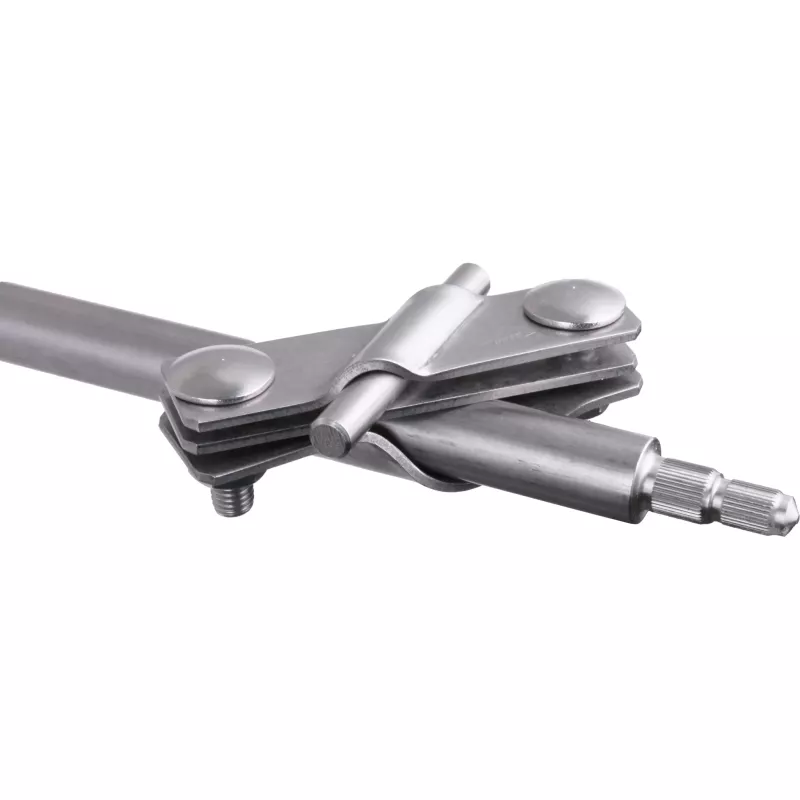

Connection clamp for earthing, lightning protection, and potential equalization, crafted from stainless steel (V2A) for high corrosion resistance. Suitable for pipes with a diameter of 20 mm and round conductors from 8 to 10 mm, or flat conductors up to 30 mm wide. The M10 connection thread ensures a secure and reliable connection. Designed for both indoor and outdoor use, this clamp offers robust and durable performance with easy installation.

Key specifications

• Material: Stainless steel (V2A)
• Suitable pipe diameter: 20 mm
• Conductor connection thread: M10
• Compatible round conductor diameter: 8 - 10 mm
• Compatible flat conductor width: up to 30 mm
• Mounting type: Pipe clamp / screw connection
• Corrosion resistance: High
• Standard compliance: DIN EN 62561-1 (VDE 0185-561-1)
• Series: DEHN 620 Series
• Usage environment: Indoor and outdoor
• Number of connection points: 1
• Design: Robust and durable
• Installation: Easy installation
