Delock 3 ventoinhas axiais 230 V AC com filtro 418 x 180 x 84 mm

Move up to 480 m³/h of air quietly and reliably with this triple-fan cooling solution, engineered for 230 V AC operation and continuous duty in enclosures and cabinets.

Overview

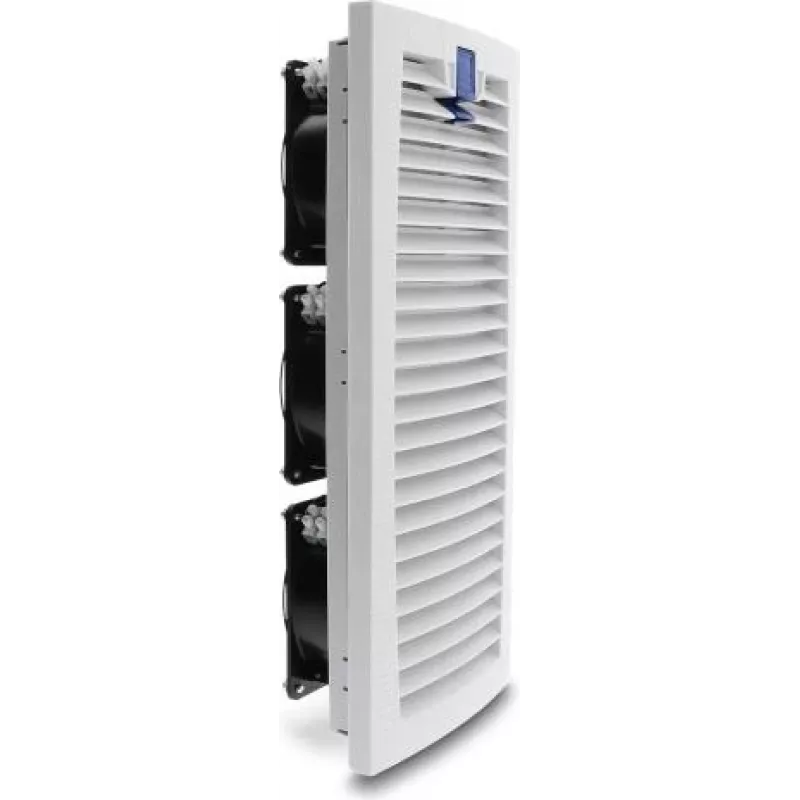

The Delock 67549 integrates three 120 mm axial fans into a single metal housing, complete with a synthetic fiber filter to keep dust and debris out of your equipment. Each fan consumes just 14 W, for a total of 42 W, while delivering a combined airflow of 480 m³/h. The unit operates on standard 230 V AC at 50/60 Hz and connects via a terminal block (L, N, PE) for secure, permanent wiring.

What stands out

• Three high-performance axial fans for superior airflow
• Integrated synthetic fiber filter protects against dust
• Robust metal housing with IP20 protection
• Sleeve bearings rated for 30,000 hours at 40°C
• Simple screw mounting for easy installation

Technical details

• Fan type: Axial
• Number of fans: 3
• Operating voltage: 230 V AC
• Frequency: 50/60 Hz
• Total power consumption: 42 W (3 x 14 W)
• Total airflow: 480 m³/h (3 x 160 m³/h)
• Noise level per fan: 45 dB(A)
• Bearing type: Sleeve
• Filter material: Synthetic fiber
• Housing material: Metal
• Protection class: IP20
• Operating temperature: -10 °C to 70 °C
• Connection: Terminal block (L, N, PE)
• Mounting: Screw
• Individual fan dimensions: 120 x 120 x 38 mm
• Overall dimensions: 418 x 180 x 84 mm

Our verdict

A dependable cooling solution for demanding environments, the Delock 67549 combines high airflow, effective filtration, and rugged construction in one ready-to-install unit.
