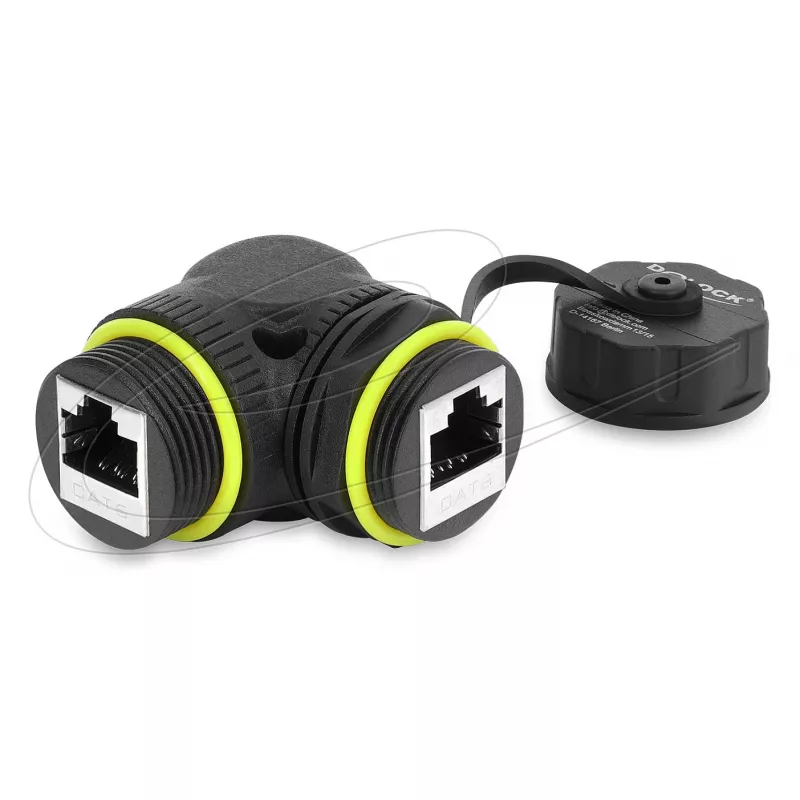

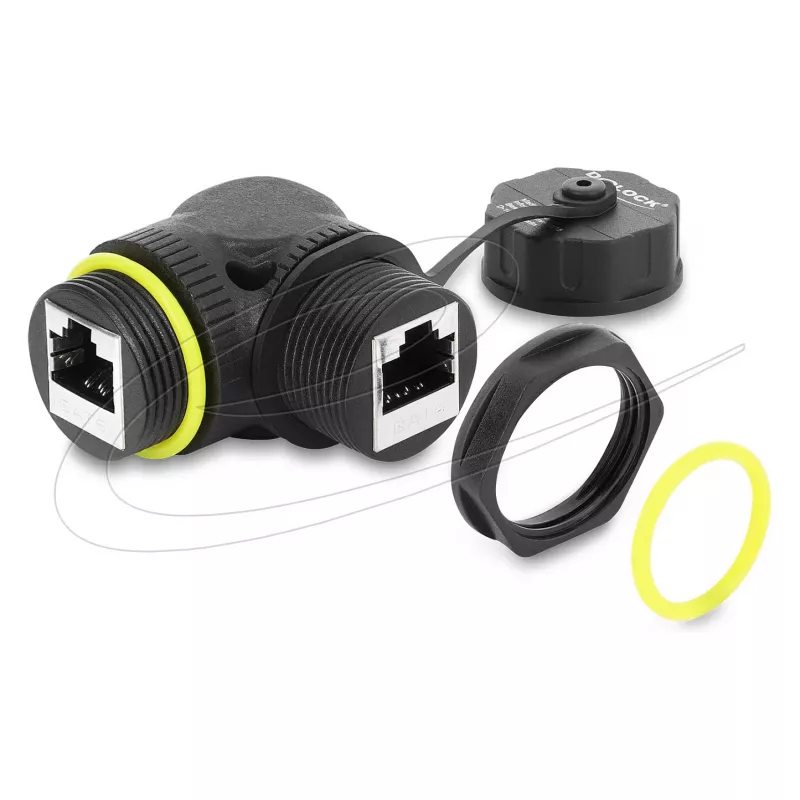

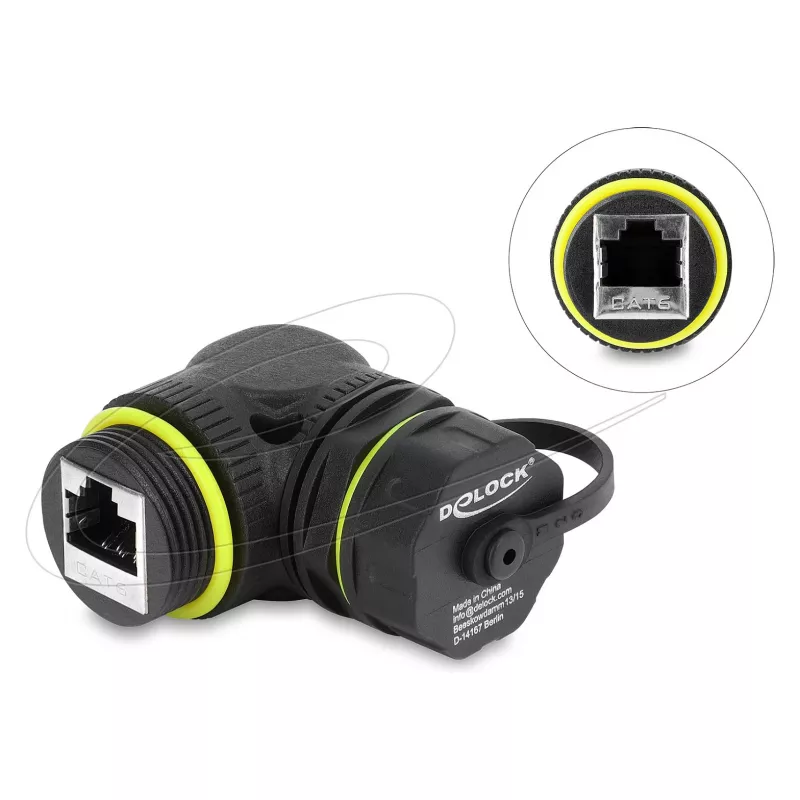

Delock Acoplador RJ45 Cat.6 Fêmea para Fêmea com Rosca M23 x 1,5 mm e Tampa de Proteção, Ângulo de 90°, IP68, Preto

Unlike standard inline couplers, this Delock 87407 joins two RJ45 cables at a right angle through a panel cutout, sealing the connection against dust and water. The M23 x 1.5 mm thread and included cap turn a simple junction into an industrial-grade link that survives outdoor washdowns and factory floors.

Highlights

• Cat.6 performance for Gigabit Ethernet up to 1000BASE-T
• 90° angled female-to-female RJ45 coupler for tight spaces
• IP68-rated housing with M23 x 1.5 mm mounting thread
• Shielded (STP) construction blocks EMI/RFI interference
• Includes protective cap for unused port or storage

In daily use

Mount the coupler through an enclosure wall, tighten the M23 nut, and connect two shielded Cat.6 patch cables. The right-angle body keeps cable runs flat against the panel, while the full metal shielding and IP68 seal maintain signal integrity even when submerged or exposed to high-pressure jets. The protective cap snaps over the front port when no cable is attached, preventing contamination.

Full specifications

• Connector A: RJ45 female
• Connector B: RJ45 female
• Category: Cat.6 (Class E)
• Shielding: Shielded (STP)
• Data rate: Up to 1 Gbps (1000BASE-T)
• Ingress protection: IP68
• Mounting: Panel mount, M23 x 1.5 mm thread
• Orientation: 90° angled
• Housing material: Plastic
• Colour: Black
• Operating temperature: -20 °C to 85 °C
• Included: Protective cap

Final note

For harsh-environment Ethernet extension, the Delock 87407 provides a sealed, right-angle junction that keeps your network running where ordinary couplers fail.
