Delock Acoplador RJ45 Fêmea para Fêmea Cat.6A com Rosca M23,5 x 1,5 mm IP68 à Prova de Poeira e Água Branco (90661)

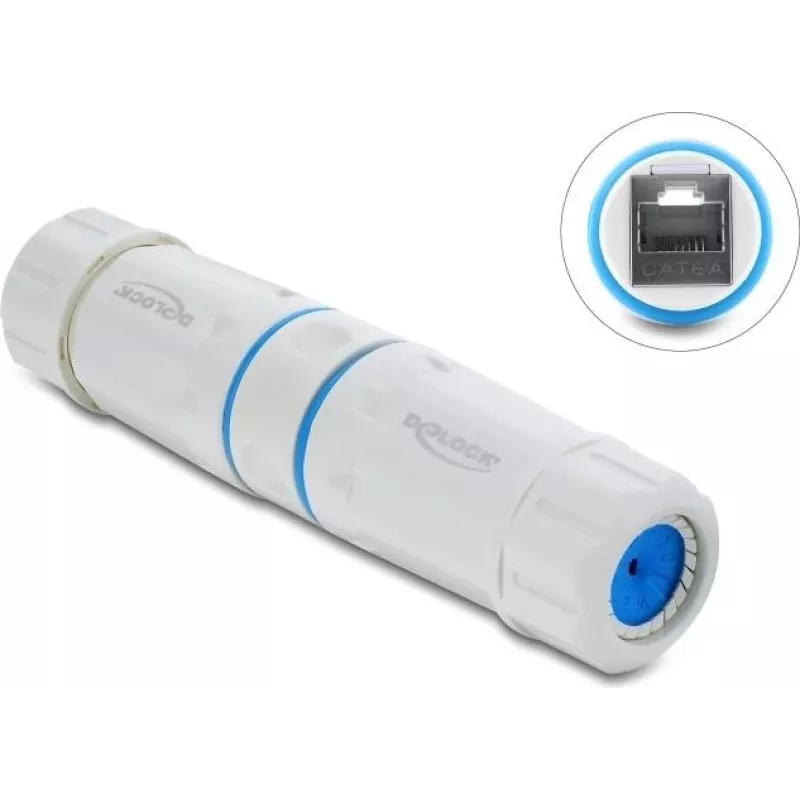

The Delock RJ45 Female to RJ45 Female Coupler Cat.6A with M23.5 x 1.5 mm Thread IP68 Dustproof and Waterproof White (90661) is a high-performance connector designed for reliable network connections in harsh environments. This coupler allows you to extend or connect two RJ45 cables securely, featuring a robust metal thread and IP68 protection against dust and water ingress.

Advantages

This coupler ensures a waterproof and dustproof connection, making it ideal for outdoor, industrial, or marine applications. The M23.5 x 1.5 mm thread provides a secure locking mechanism, preventing accidental disconnection. It supports Cat.6A standards for 10 Gigabit Ethernet and 500 MHz bandwidth, ensuring high-speed data transmission. Power over Ethernet (PoE) support allows for powering devices such as IP cameras and access points through the same cable.

Suitable for

• Outdoor network installations
• Industrial Ethernet applications
• Marine and shipboard networks
• Security camera systems
• Data centers requiring robust connections

Key specifications

• Connector type: RJ45 female to RJ45 female
• Network standard: Cat.6A (Category 6A)
• Shielding: Shielded (STP/FTP compatible)
• IP rating: IP68 (dustproof and waterproof)
• Thread size: M23.5 x 1.5 mm
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• PoE support: Yes (PoE, PoE+, 4PPoE / IEEE 802.3af/at/bt)
• Color: White
• Housing material: Plastic (PC)
• Contact material: Gold-plated (3 µm)
• Operating temperature: -20 °C to 85 °C
• Max. panel thickness: 4 mm
• Installation depth: 28 mm
• Flammability rating: UL 94V-0
• Standard compliance: TIA/EIA-568-C.2, ISO/IEC 11801 Class EA

Recommendations

For optimal performance, use with Cat.6A or higher shielded cables. Ensure the thread is properly tightened to maintain IP68 protection. Suitable for panel mount installations with a maximum panel thickness of 4 mm.
