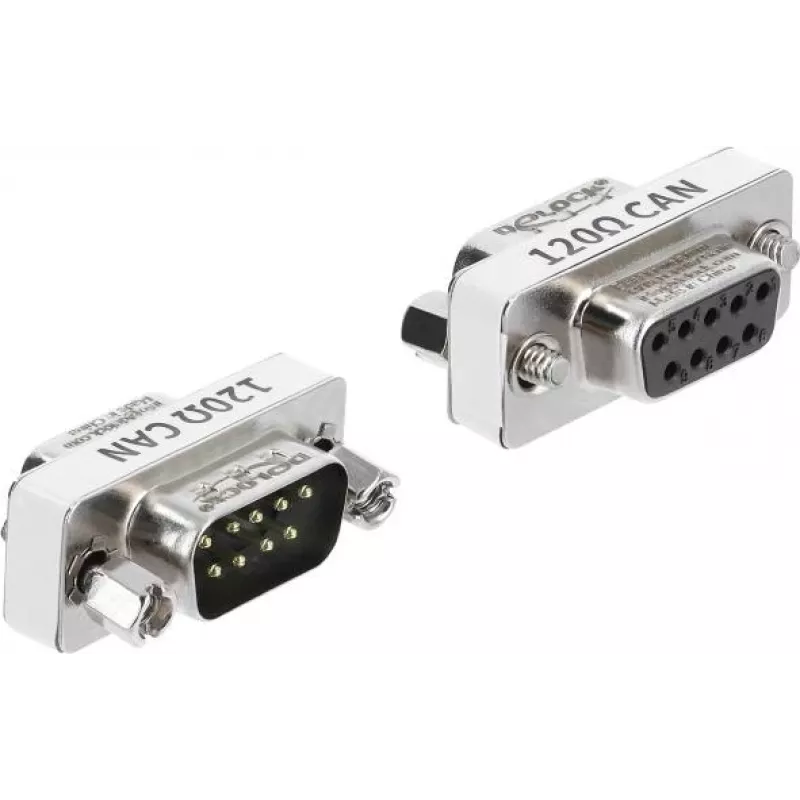

Delock Adaptador CAN Bus D-Sub 9 pinos macho para fêmea com resistência de terminação 120 Ohm

The Delock D-Sub 9 Pin CAN Bus Adapter is a high-quality adapter designed for reliable communication in CAN Bus networks. It features a male to female connection with a built-in 120 Ohm termination resistor, ensuring proper signal termination and reducing reflections in industrial automation, automotive diagnostics, and other CAN Bus applications.

Advantages

This adapter provides a simple and effective solution for terminating CAN Bus lines, eliminating the need for external resistors. The gold-plated contacts ensure excellent conductivity and corrosion resistance, while the robust ABS housing protects against environmental factors. With a wide operating temperature range, it is suitable for demanding industrial environments.

Suitable for

• Industrial automation systems
• Automotive diagnostics and testing
• CAN Bus network prototyping and maintenance
• Embedded systems and control applications

Key specifications

• Connector 1: D-Sub 9 Pin Male
• Connector 2: D-Sub 9 Pin Female
• Pin Assignment: 1:1
• Termination Resistor: 120 Ohm ±1%
• CAN Bus Specification: 2.0 A/B
• Max Data Rate: 1 Mbit/s
• Operating Temperature: -40 °C to 85 °C
• Housing Material: ABS
• Colour: Black
• Contact Plating: Gold-plated
• Screw Type: UNC 4-40

Recommendations

For optimal performance, use this adapter at the end of a CAN Bus segment to match the characteristic impedance of the cable. Ensure proper screw tightening to maintain a secure connection.
