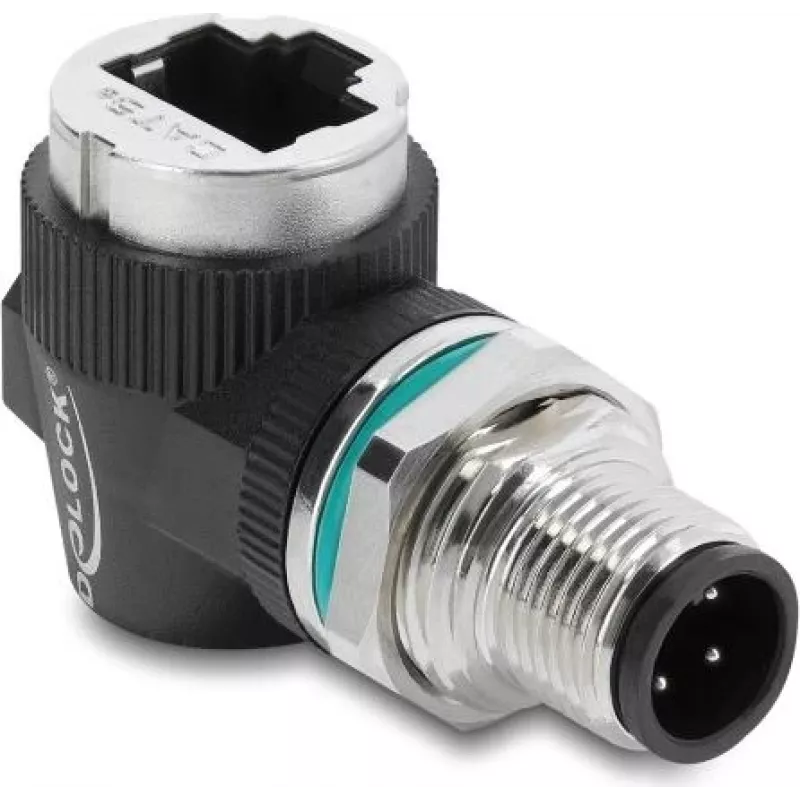

Delock Adaptador M12 codificação D 4 pinos Macho para conector fêmea RJ45 Caixa de montagem redonda 90° angular (90664)

The Delock M12 Adapter D-coded 4 Pin Male to RJ45 Female is a robust industrial Ethernet adapter designed for reliable data transmission in harsh environments. This adapter enables seamless connection between M12 D-coded connectors and standard RJ45 cables, making it ideal for industrial automation, sensor/actuator applications, and factory networking.

Advantages

This adapter offers a space-saving 90° angled design for easy installation in tight spaces. The IP67 rating ensures protection against dust and water ingress when mated, making it suitable for outdoor or wet industrial environments. Gold-plated contacts guarantee reliable signal transmission and corrosion resistance.

Suitable for

• Industrial Ethernet networks (10/100 Mbps)
• Sensor and actuator connections
• Panel-mounted applications requiring a round cutout
• Harsh environments where IP67 protection is needed

Key specifications

• Connector A: M12 D-coded male, 4-pin
• Connector B: RJ45 female
• Mounting: Panel mount, round hole Ø20.2 mm, thread M20x1.5
• Orientation: 90° angled
• Data rate: 10/100 Mbps
• IP rating: IP67 (mated)
• Housing: Nickel-plated brass
• Contact plating: Gold
• Operating temperature: -25°C to 85°C
• Standard: IEC 61076-2-101
• Shielding: Yes

Recommendations

For optimal performance, use with Cat5e or Cat6 shielded RJ45 cables and M12 D-coded cables. Ensure the panel thickness does not exceed 3.5 mm for proper mounting.
