Delock adaptador SATA 22 pinos fêmea para macho com bloqueio – inclinado para baixo

Supporting SATA III speeds up to 6 Gb/s, this Delock adapter bridges a 22-pin SATA female connector with latch to a 22-pin SATA male connector angled downward at 90 degrees. It integrates both data and power, making it a compact solution for internal PC and server cable routing.

Overview

The Delock SATA 22 Pin Adapter converts a female SATA port with latch into a male SATA connector angled 90 degrees downward. This orientation is ideal for tight spaces where a straight connection would obstruct other components or the case panel. The adapter supports SATA I, II, and III standards, ensuring compatibility with a wide range of storage devices including HDDs, SSDs, and optical drives. The integrated power and data lines carry both 5V and 12V, eliminating the need for separate power cables.

What stands out

• Angled down design saves space and reduces cable strain in cramped builds.

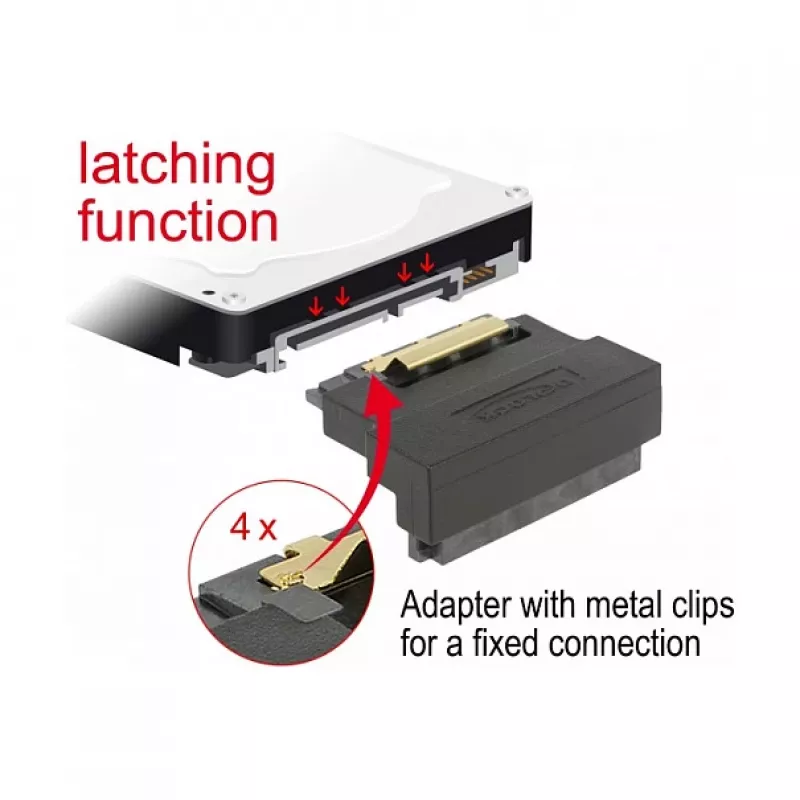

• Latching female connector ensures a secure, vibration-resistant connection.
• Supports full SATA III bandwidth for high-speed data transfers.
• Combines data and power in one compact adapter.
• Plug-and-play installation with no drivers required.

Technical details

• Connector 1: SATA 22 Pin Female with latch
• Connector 2: SATA 22 Pin Male angled down (90°)
• SATA standard: SATA I, II, III
• Data transfer rate: up to 6 Gb/s
• Power support: integrated, 5V and 12V
• Material: plastic and metal
• Colour: black
• Application: internal PC/server connections

Our verdict

A practical adapter for builders who need to route SATA cables downward without sacrificing performance. The latching mechanism adds reliability, and the 90-degree angle solves clearance issues in compact cases.
