Delock Botão cogumelo 16 mm orifício de montagem 2 x pino de solda (curto) plástico 32 mm Ø preto

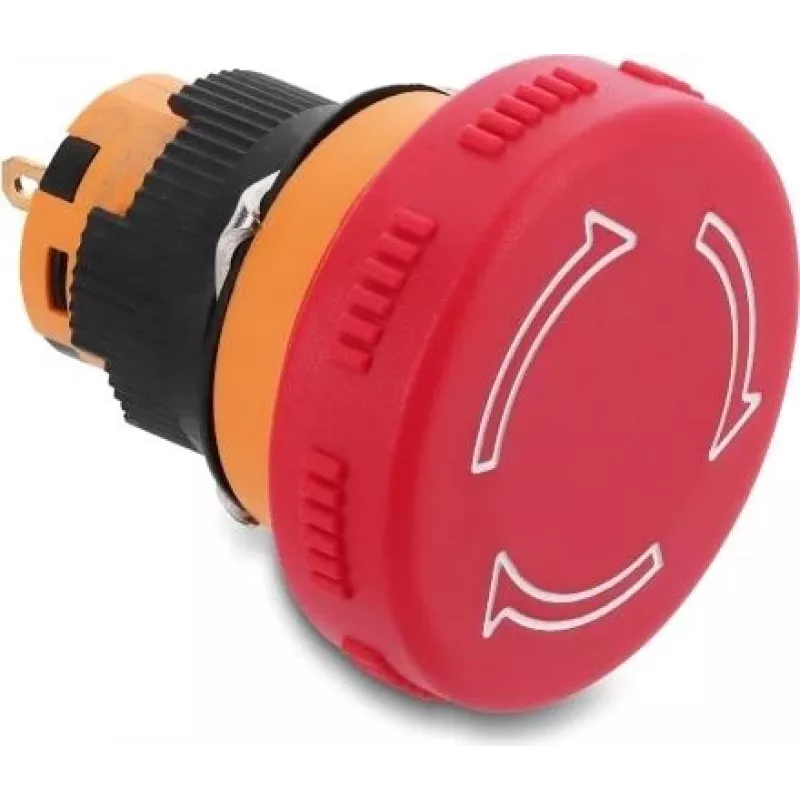

The Delock Mushroom Head Push Button Switch is a robust momentary switch designed for panel mounting. With a 16 mm mounting hole and a 32 mm mushroom head actuator, this switch is ideal for emergency stop or control applications. It features 2 short solder pin terminals and a normally open (NO) contact configuration. The plastic housing is black and offers IP65 protection on the front side, making it suitable for industrial environments.

Advantages

High reliability with a mechanical life of 100,000 cycles and electrical life of 50,000 cycles. Easy panel installation with a standard 16 mm cutout. Compact design with a 32 mm actuator head diameter.

Suitable for

• Emergency stop buttons
• Industrial control panels
• Machine control systems
• Automation equipment

Key specifications

• Product Type: Push Button Switch
• Switch Type: Momentary
• Actuator Type: Mushroom Head
• Mounting Type: Panel Mount
• Mounting Hole Diameter: 16 mm
• Actuator Head Diameter: 32 mm
• Number of Terminals: 2
• Terminal Type: Solder Pin (short)
• Contact Configuration: Normally Open (NO)
• Material: Plastic
• Color: Black
• Rated Current: 3 A
• Rated Voltage: 250 V AC
• Contact Resistance: max. 50 mΩ
• Insulation Resistance: min. 100 MΩ at 500 V DC
• Dielectric Strength: 1500 V AC (1 min)
• Operating Temperature: -25 °C to 85 °C
• Protection Class: IP65 (front side)
• Mechanical Life: 100,000 cycles
• Electrical Life: 50,000 cycles

Recommendations

For reliable and durable switching in demanding environments, this Delock mushroom head push button switch is an excellent choice. Ensure proper soldering for secure connections.
