Delock Botão cogumelo para montagem em painel 16 mm 2 x ligação soldada plástico 32 mm Ø preto

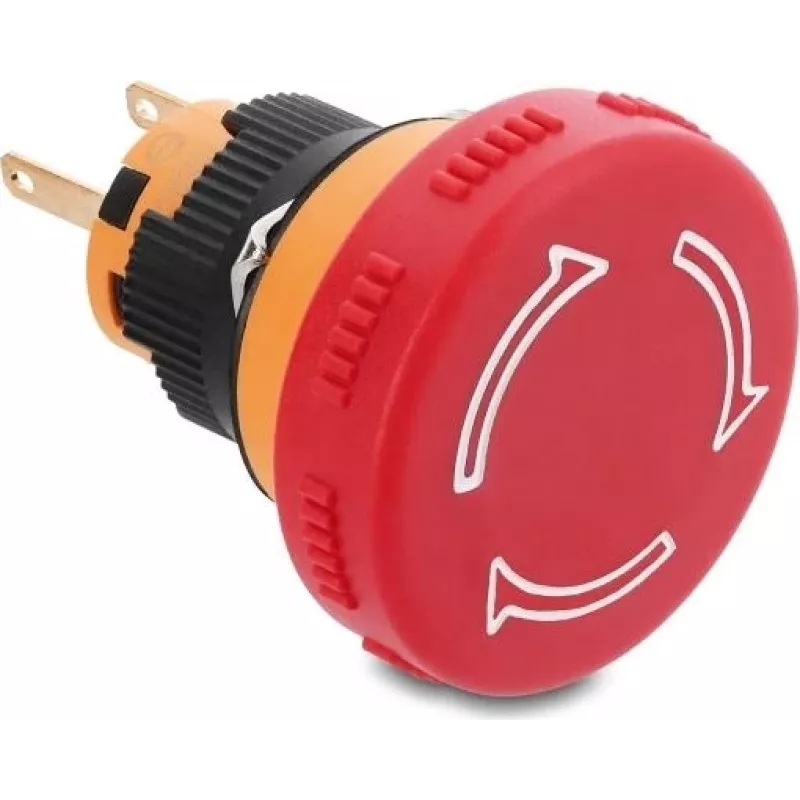

The Delock Mushroom Head Push Button is a robust and reliable control element designed for panel mounting. With a mounting diameter of 16 mm and a large 32 mm mushroom head actuator, it is ideal for emergency stop or start applications in industrial environments. The switch features a normally open (NO) contact configuration and two solder pin terminals for secure electrical connections. Its plastic body ensures durability and electrical insulation, while the IP40 protection rating makes it suitable for indoor use. The push button is rated for up to 250 V AC and 3 A, with a mechanical life exceeding 100,000 cycles and an electrical life of over 10,000 cycles. Operating temperature range is -25 °C to 85 °C.

Advantages

High-quality construction with long mechanical and electrical life. Easy panel mount installation with standard 16 mm cutout. Large mushroom head actuator provides easy operation even with gloves. Compact design with 32 mm actuator diameter fits in tight spaces. Reliable solder connection ensures stable electrical contact.

Suitable for

• Industrial control panels
• Emergency stop buttons
• Machine control stations
• Automation systems
• Safety circuits

Key specifications

• Switch Type: Push Button
• Actuator Type: Mushroom Head
• Mounting Diameter: 16 mm
• Contact Configuration: 1 NO (Normally Open)
• Number of Terminals: 2
• Terminal Type: Solder Pin
• Body Material: Plastic
• Actuator Diameter: 32 mm
• Max. Operating Voltage: 250 V AC
• Max. Operating Current: 3 A
• Protection Rating: IP40
• Operating Temperature Range: -25 °C to 85 °C
• Mechanical Life: > 100,000 cycles
• Electrical Life: > 10,000 cycles
• Color: Black
• Mounting Type: Panel Mount
• Dielectric Strength: 1500 V AC / 1 min
• Contact Resistance: < 50 mΩ

Recommendations

For reliable and durable push button solutions in industrial control applications, the Delock Mushroom Head Push Button offers excellent performance and longevity. Ensure proper soldering and panel mounting for optimal operation.
