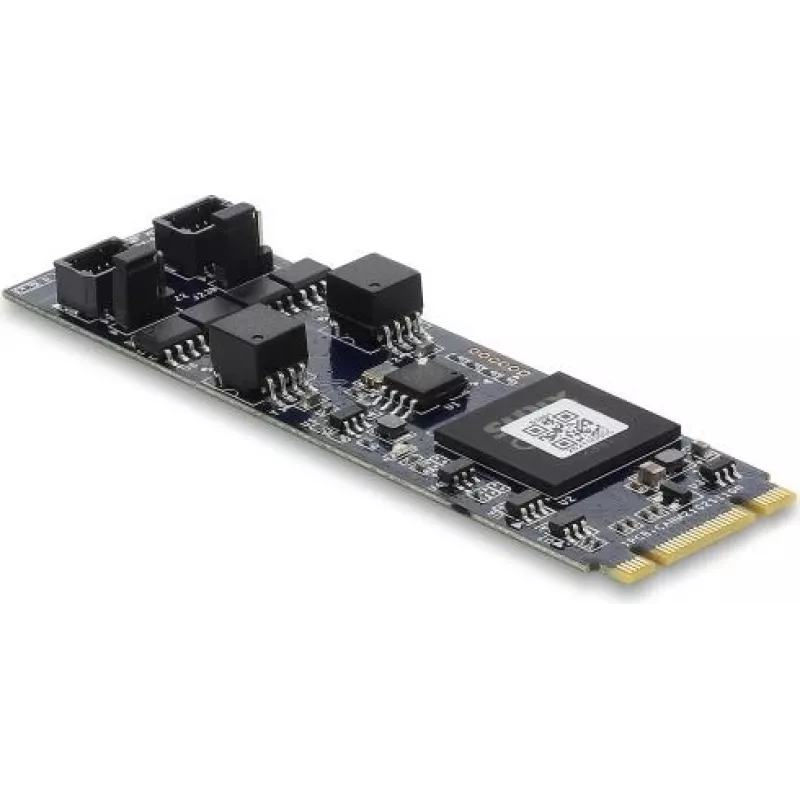

DELOCK CAN 2.0 / CAN FD placa de interface PCIe M.2 Key B+M para 2 x D-Sub 9 pinos, até 8 Mbps com isolamento e proteção contra sobretensão

In industrial automation and automotive diagnostics, reliable CAN communication is critical. The DELOCK 63001 interface card equips your system with two CAN 2.0 / CAN FD channels via a PCIe M.2 Key B+M slot. It connects to external devices through two D-Sub 9 pin connectors, supporting data rates up to 8 Mbps. Galvanic isolation of 1 kV and overvoltage protection shield your PC from electrical interference and surges. The card is suitable for use in harsh environments with an operating temperature range of -40 °C to 85 °C.

Key specifications

• Host interface: PCIe M.2 Key B+M (PCIe 3.0, backward compatible)
• Form factor: M.2 2280
• CAN channels: 2
• Protocols: CAN 2.0 A/B, CAN FD
• Maximum data rate: 8 Mbps
• External connectors: 2 x D-Sub 9 pin male
• Chipset: Microchip MCP2518FD, Microchip MCP2562FD
• Galvanic isolation: 1 kV
• Overvoltage protection: Yes
• ESD protection: up to 8 kV
• Termination resistor: 120 Ohm (selectable via jumper)
• Operating modes: Normal, Listen-Only, Loopback
• LED indicators: 2 x CAN status LEDs
• Power supply: PCIe bus power
• Supported OS: Windows 10/11 (32/64-bit), Linux Kernel 4.x and above
• Operating temperature: -40 °C to 85 °C
• Humidity: 5 - 95 % non-condensing

Why choose it

This card offers robust isolation and protection, ensuring stable CAN communication even in electrically noisy environments. Its M.2 form factor saves space in compact systems, while dual channels allow simultaneous connection to multiple CAN networks. The wide temperature range makes it suitable for industrial applications.

Ideal use cases

• Industrial automation and control systems
• Automotive diagnostics and ECU programming
• Embedded systems development
• CAN bus monitoring and analysis

Good to know

The card is powered directly from the PCIe bus, eliminating the need for an external power supply. Drivers are available for Windows and Linux. The selectable 120 Ohm termination resistor simplifies bus configuration.
