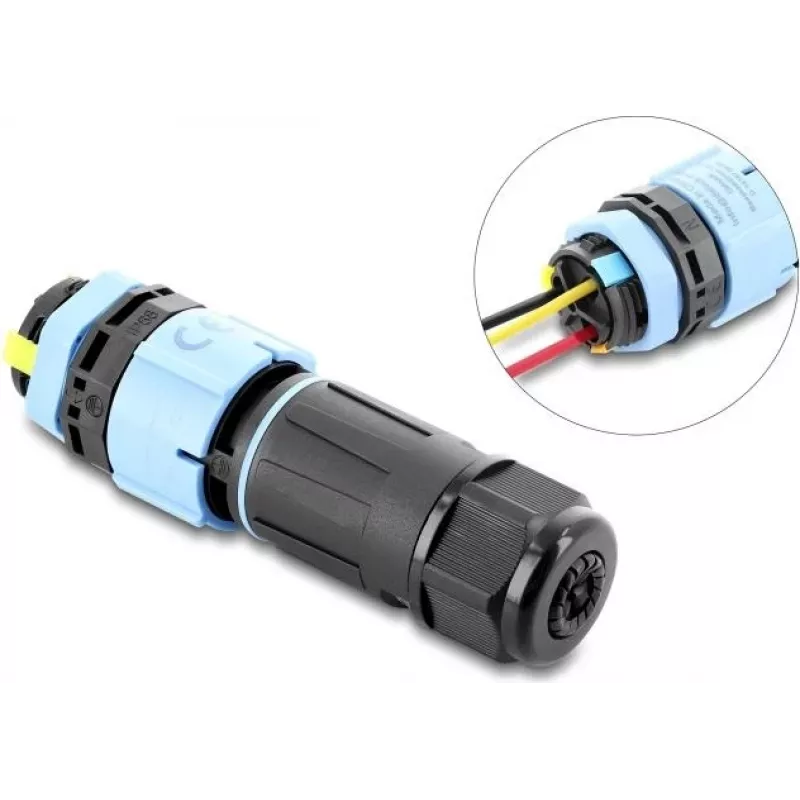

Delock Conector de Cabo com Fecho de Baioneta 3 Polos Macho para Fêmea com Caixa para Montagem em Painel, IP68 à Prova de Água para Diâmetro de Cabo 5 - 9 mm, incl. Vedante para 9 - 12 mm, sem Ferramentas Preto (87250)

The Delock Cable Connector with Bayonet Lock is a robust and waterproof solution for connecting cables in demanding environments. Designed for panel mounting, this 3-pin connector ensures a secure and reliable connection with its bayonet locking mechanism. The IP68 rating guarantees protection against dust and water immersion, making it ideal for outdoor, industrial, and marine applications. The tool-free installation allows for quick and easy assembly, while the included seal extends compatibility to cable diameters of 9-12 mm.

Advantages

• IP68 waterproof and dustproof for harsh environments
• Tool-free installation saves time and effort
• Bayonet lock ensures secure connection
• Includes seal for larger cable diameters (9-12 mm)
• High-quality materials: PA66 housing, gold-plated copper contacts

Suitable for

• Outdoor lighting and power connections
• Industrial automation and sensor connections
• Marine and automotive applications
• Solar panel and renewable energy systems
• Any environment requiring a waterproof cable connection

Key specifications

• Connector type: Cable connector, male plug to female socket
• Number of pins: 3
• Locking mechanism: Bayonet
• Mounting type: Panel mount
• Connector size: M20
• Ingress protection: IP68
• Compatible cable diameter: 5-9 mm (standard), 9-12 mm (with included seal)
• Installation: Tool-free
• Colour: Black
• Housing material: PA66 (Nylon)
• Contact material: Copper alloy, gold-plated
• Rated current: 15 A
• Rated voltage: 250 V
• Operating temperature: -20 °C to 85 °C
• Insulation resistance: >500 MΩ
• Dielectric strength: 2000 V

Recommendations

For optimal performance, ensure the cable diameter is within the specified range and the connector is properly tightened. This connector is designed for use with compatible cables and panels. Always follow local electrical codes and regulations.
