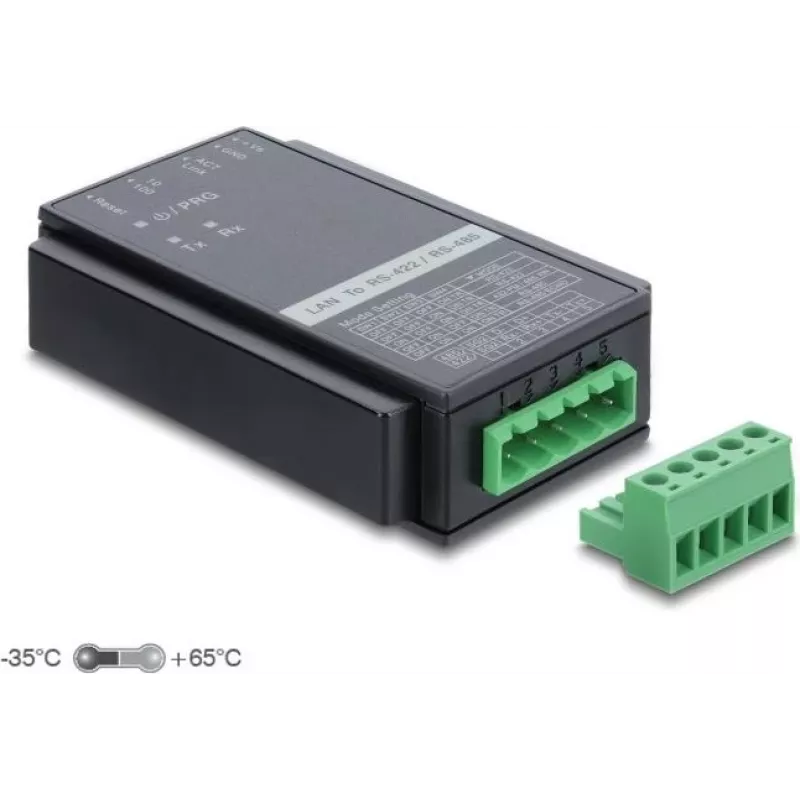

Delock Conversor Ethernet para RS-485/RS-422 com Proteção contra Sobretensão 63003

The Delock 63003 Ethernet to RS-485/RS-422 converter enables seamless integration of serial devices into an Ethernet network. With surge protection and wide temperature range, it is ideal for industrial environments.

Advantages

Reliable data transmission with 15 kV ESD protection, support for both RS-485 and RS-422 standards, and flexible mounting options. Web-based configuration simplifies setup.

Suitable for

• Industrial automation and control systems
• Remote monitoring and data acquisition
• Connecting legacy serial devices to modern networks

Key specifications

• Ethernet: 1 x RJ45, 10/100BASE-TX
• Serial: 1 x 5-pin terminal block, RS-422/RS-485
• Data rates: Ethernet up to 100 Mbps, serial up to 230.4 Kbps
• Surge protection: 15 kV ESD
• Power input: 5-30 V DC via DC jack 5.1 x 2.1 mm
• Power consumption: max. 1.5 W
• Operating temperature: -40 °C to 85 °C
• Housing: Metal, wall mount or DIN rail (optional)
• Configuration: Web-based, supports TCP, UDP, Modbus TCP/RTU

Recommendations

Use with a regulated power supply for best performance. For DIN rail mounting, order the optional mounting kit.
