DeLOCK D-Sub 15 pinos macho para RJ12 fêmea kit de montagem branco

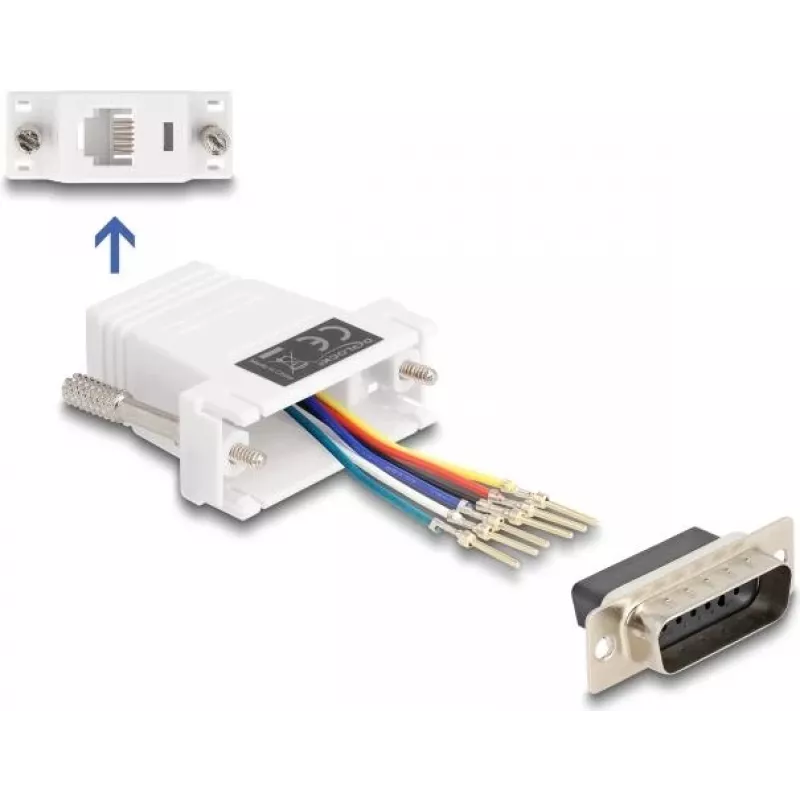

This adapter by DeLOCK converts a D-Sub 15 (male) interface into an RJ12 (female) connection using an ISDN, telephone or RJ12 cable. The product is supplied as an assembly kit in white and is intended for creating a flexible, custom-wired connection between devices that use a D-Sub 15 connector and equipment or cabling with an RJ12 interface.

Advantages

The adapter allows individual assignment of the D-Sub 15 contacts so wiring can be adapted to specific requirements. Contacts are inserted into the D-Sub housing as needed and the RJ12 socket snaps into place with a slight click to ensure reliable electrical contact. The kit form enables custom configurations and replacement of connectors without modifying existing devices.

Suitable for

• Connecting devices with a D-Sub 15 interface to equipment or cabling using RJ12 (ISDN/telephone)
• Custom wiring or repair work where specific pin assignment is required
• Laboratory, industrial or workshop environments needing configurable serial connections

Key specifications

• Brand: DELOCK
• Model / MPN: 67083
• EAN: 4043619670833
• Connector A: D-Sub 15 pin (male) — assembly kit
• Connector B: RJ12 (female)
• Color: White

How to use

Assemble the D-Sub 15 housing and insert the contact pins according to the desired pinout. Mount the RJ12 female socket and secure it in the housing until it snaps into place. Connect the RJ12 cable to the female socket and the D-Sub 15 to the corresponding device. Verify pin assignments and continuity with a multimeter before applying power or data signals.

Recommendations

Use appropriate cable types for RJ12 connections (ISDN/telephone quality) and ensure correct pin assignment for the connected equipment. Perform a continuity check after assembly and avoid applying excessive mechanical stress to the assembled connector.
