DeLOCK D-Sub 9 fêmea para RJ12 fêmea kit de montagem azul

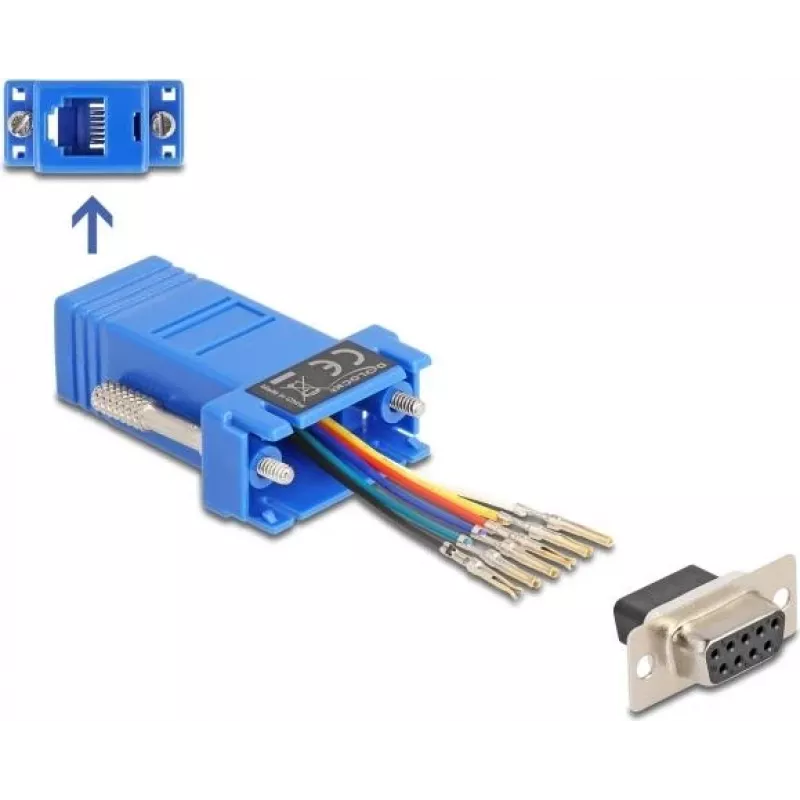

The DeLOCK D-Sub 9 pin female to RJ12 female Assembly Kit blue is an adapter kit that allows a serial D-Sub 9 interface to be extended using an ISDN, telephone or RJ12 cable. The kit includes a D-Sub 9 female housing and an RJ12 female socket, with contacts that can be placed into the D-Sub housing according to the required pin assignment. The product colour is blue and it is intended for creating reliable, custom-configured serial connections.

Advantages

The adapter supports flexible and individual assignment of the D-Sub 9 contacts, allowing custom pinouts for different applications. Contacts snap into the D-Sub housing with a slight click to ensure a stable mechanical and electrical connection. The combination of a standard D-Sub 9 interface and an RJ12 socket enables the use of commonly available ISDN or telephone cables for signal extension or conversion.

Suitable for

• Extending serial D-Sub 9 connections over RJ12 / telephone cables
• Custom pinout assemblies for serial communication equipment
• Repair or retrofit of devices using D-Sub 9 and RJ12 cabling

Key specifications

• Connector 1: D-Sub 9 (female)
• Connector 2: RJ12 (female)
• Product colour: Blue
• Manufacturer: DELOCK
• MPN: 67080
• EAN: 4043619670802

How to use

Select the desired pin assignment and insert the contacts into the D-Sub 9 housing according to that assignment. Place the RJ12 socket in the kit and secure all components in the housing. Connect the assembled D-Sub 9 connector to your device and use an ISDN, telephone or RJ12 cable to connect to the other end. Ensure that pinouts match on both ends before applying power or transmitting data.

Recommendations

Verify the pin assignment and continuity with a multimeter before final installation. Avoid using cables or connections outside their rated purpose and keep mechanical strain relief in place to prevent contact damage.
