DeLOCK D-Sub 9 pinos fêmea para RJ12 fêmea kit de montagem vermelho

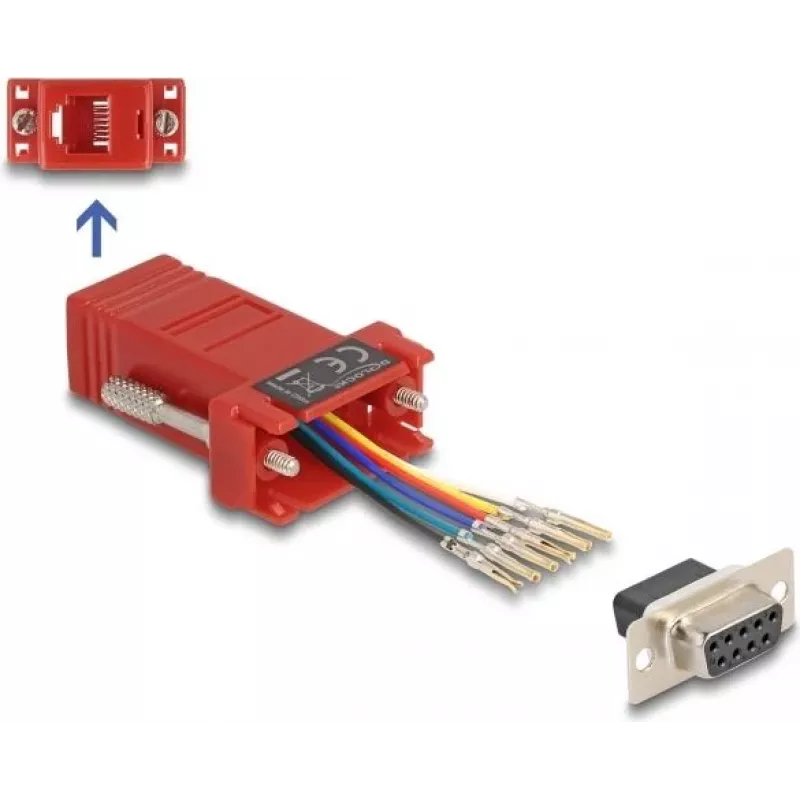

This DeLOCK D-Sub 9 pin female to RJ12 female assembly kit in red allows extending a D-Sub 9 serial interface using an ISDN, telephone or RJ12 cable. The kit contains a D-Sub 9 connector housing and an RJ12 female socket; contacts can be placed into the D-Sub housing individually to match the required pin assignment. The connectors snap into place with a slight click to ensure reliable contact.

Advantages

The kit enables flexible and customisable pin assignment for a D-Sub 9 interface and supports connection via common RJ12/telephone cables. Its snap-in contact design ensures stable electrical contact, and the red housing provides clear visual identification. The design is intended for durable, maintenance-friendly assembly.

Suitable for

• Extending or adapting RS‑232/serial D‑Sub 9 connections using RJ12/telephone cables
• Custom wiring or small-scale assembly tasks where individual pin assignment is needed
• Service, repair or prototyping work requiring a female D‑Sub 9 to RJ12 interface

Key specifications

• Connector 1: D‑Sub 9 (female)
• Connector 2: RJ12 (female)
• Product colour: Red
• Manufacturer: DELOCK
• MPN: 67079
• EAN: 4043619670796

How to use

Place the individual contacts into the D‑Sub 9 housing according to the desired pinout, then assemble the housing parts around the contacts. Insert the RJ12 female socket into its position and press until the sockets click into place, ensuring they are fully seated. Connect the RJ12 cable and D‑Sub cable as required and verify continuity before use.

Recommendations

Use appropriate tools for contact insertion to avoid damage. Verify the pin assignment and cable wiring before applying power or connecting equipment. For permanent installations, ensure strain relief and secure mounting of the assembled connector.
