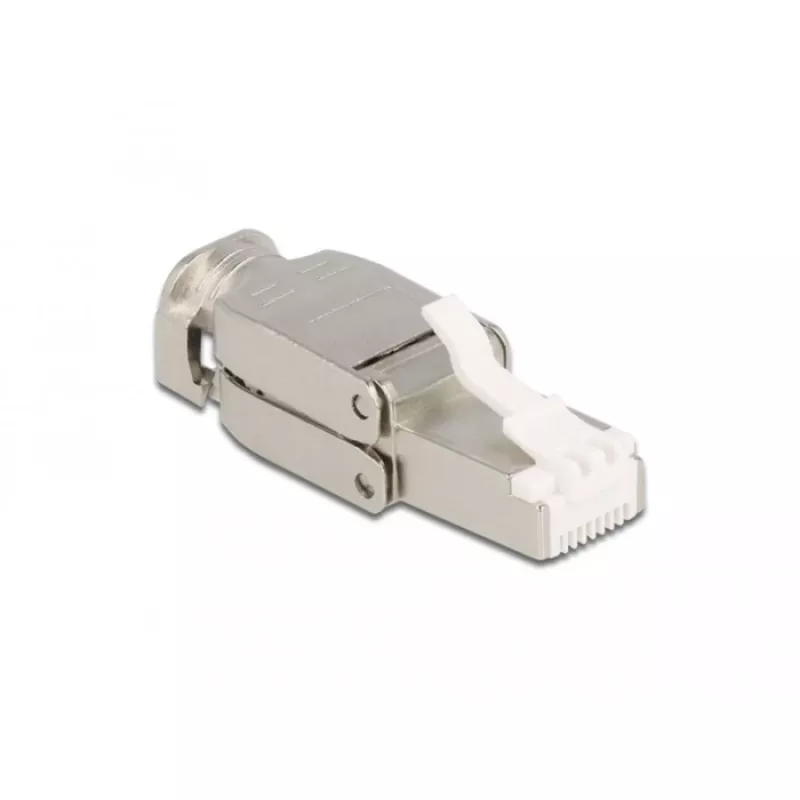

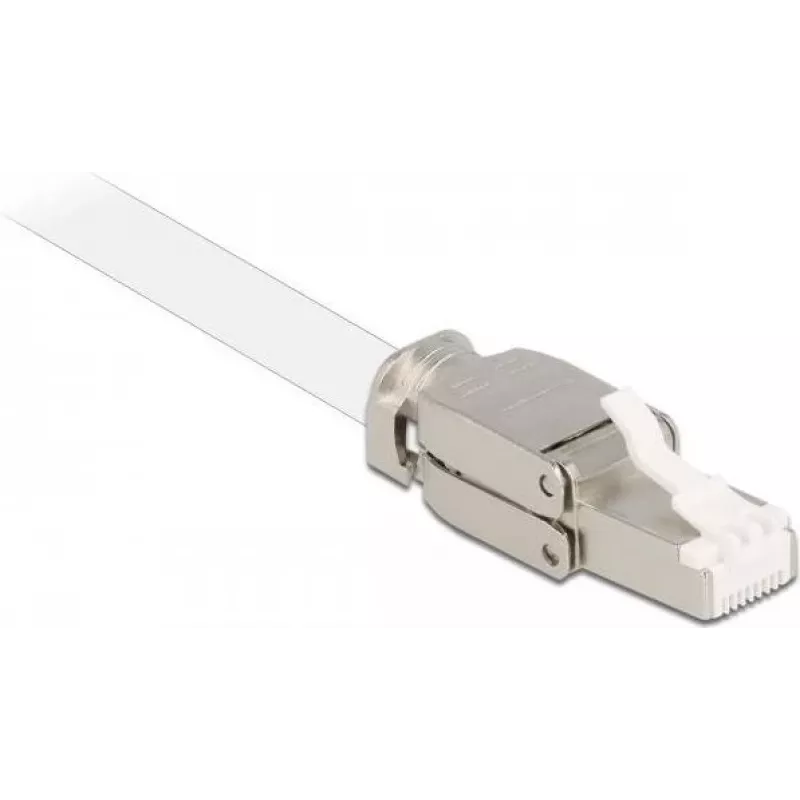

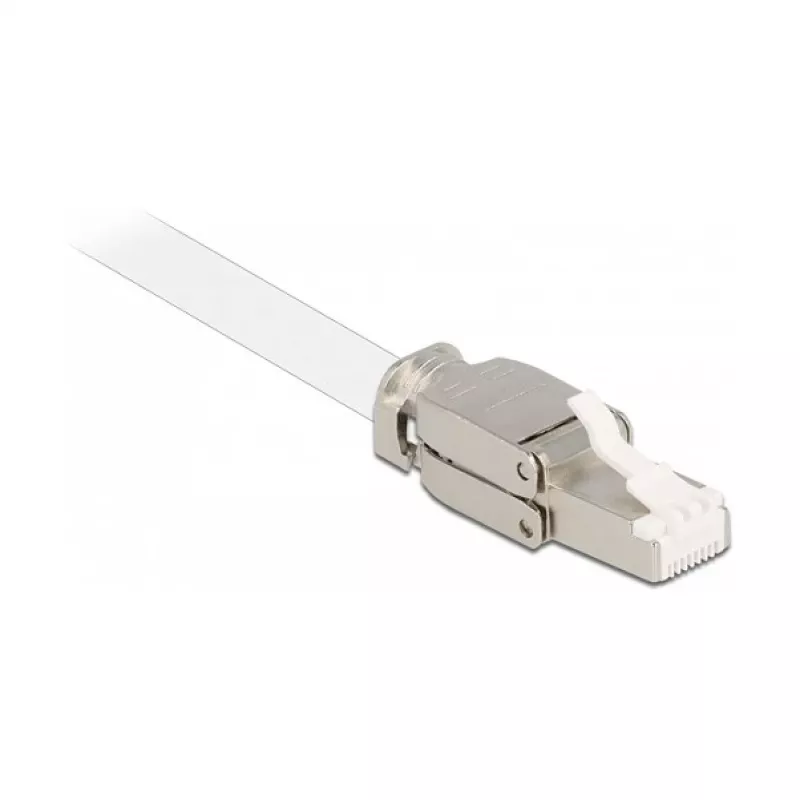

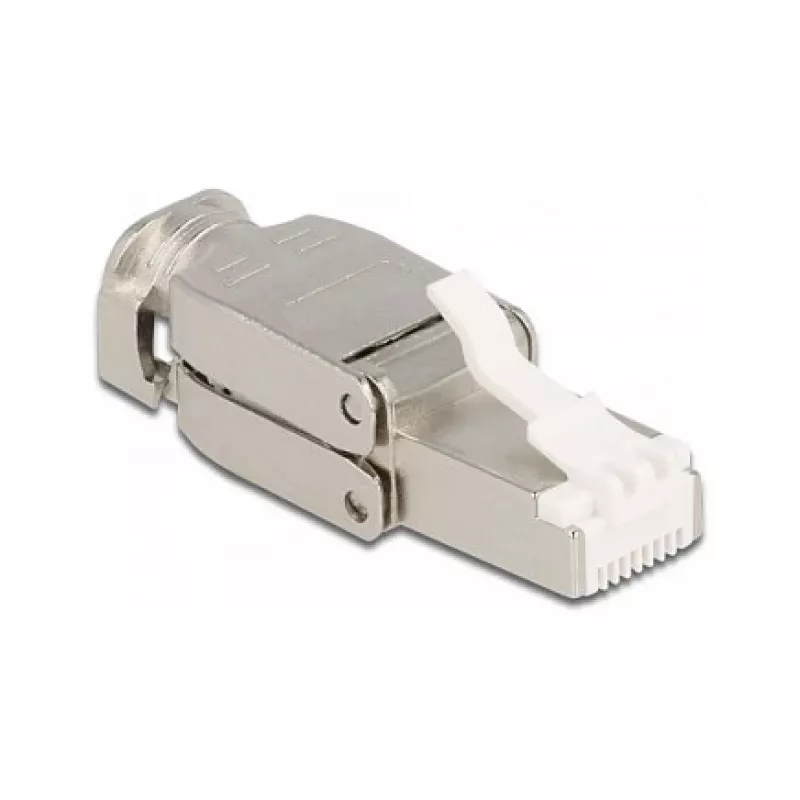

Delock Ficha RJ45 Cat.6A STP montagem de campo sem ferramentas 86927

This Delock RJ45 connector stands out with its tool-free field assembly, allowing quick and reliable termination of Cat.6A shielded twisted pair cables without the need for special crimping tools. The zinc die-cast housing and gold-plated contacts ensure durable performance for 10 Gigabit Ethernet applications.

Highlights

• Tool-free assembly for solid or stranded conductors, 22–26 AWG
• Supports 10GBASE-T with bandwidth up to 500 MHz
• Shielded STP design with zinc die-cast housing
• Reusable connector with over 750 mating cycles

In daily use

The connector is suitable for cable jacket diameters from 6.0 to 8.5 mm and supports both T568A and T568B wiring schemes. It is rated for operating temperatures from -40 °C to 85 °C and supports PoE, PoE+, and 4PPoE power delivery.

Full specifications

• Connector type: RJ45 (8P/8C) male plug
• Category: Cat.6A
• Shielding: STP (shielded twisted pair)
• Assembly method: tool-free (field assembly)
• Data rate: up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: up to 500 MHz
• Conductor compatibility: solid and stranded wire
• Wire gauge: 22–26 AWG
• Cable jacket diameter: 6.0–8.5 mm
• Contact plating: gold-plated (50 µm)
• Housing material: zinc die-cast
• Wiring standard: TIA/EIA-568A/B
• PoE support: PoE, PoE+, 4PPoE
• Reusability: yes
• Operating temperature: -40 °C to 85 °C
• Colour: silver
• Mating cycles: >750
• Certifications: RoHS

Final note

A robust and reusable solution for high-speed network installations, especially where field termination without special tools is required.
