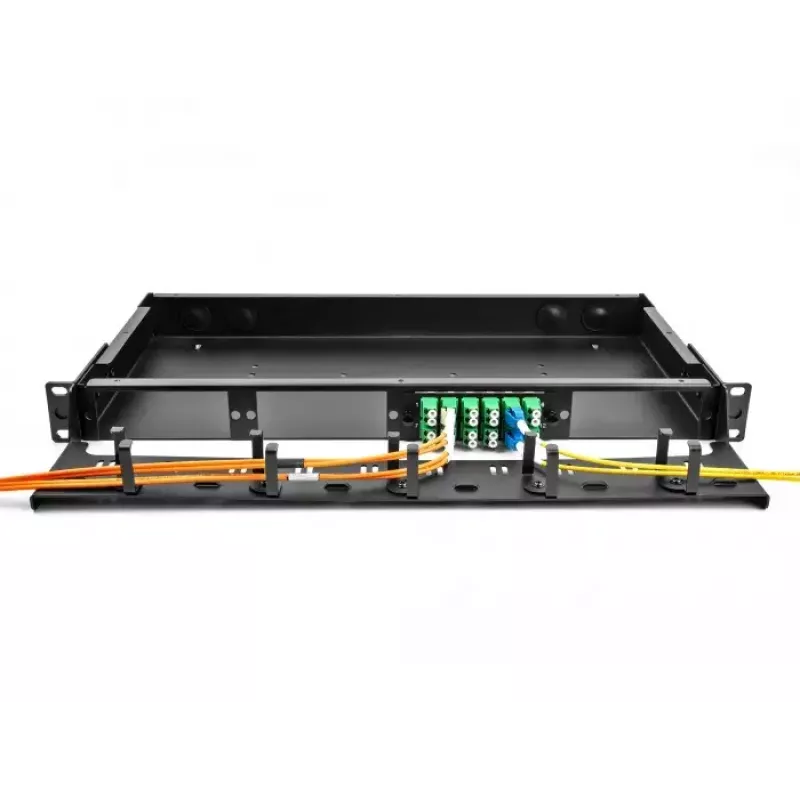

DeLOCK painel de ligação de fibra ótica HD 19 polegadas 1U preto montagem em rack de metal

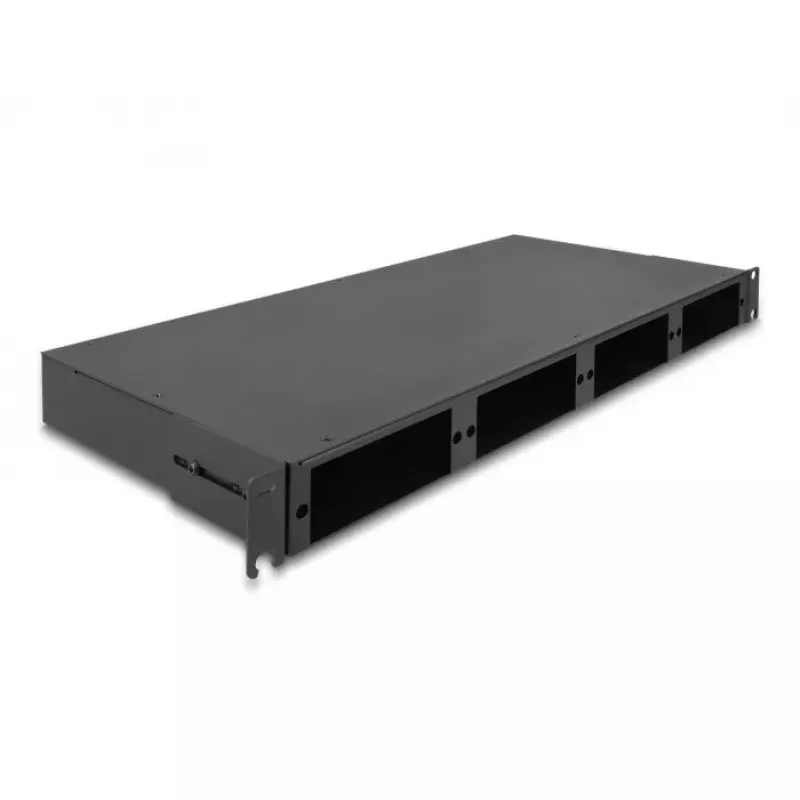

The DeLOCK 19" Fiber Optic HD Patch Panel 1U in black is a rack-mountable metal panel designed for organized fiber optic cable management in 19" racks. It supports up to four HD cassettes or fiber optic adapter panels and two splice cassettes, and features rear cable entry with removable cover for easy installation. The panel is compatible with a range of pre-assembled adapter panels and can be combined with an optional routing panel for improved cable routing and protection.

Advantages

The patch panel provides flexible installation options by accommodating individual adapter panels or HD cassettes that can be added, moved or replaced independently. Rear cable entry with four cable holes and a removable cover simplifies cable routing and termination. Its metal 1U design ensures compatibility with standard 19" racks and offers a compact, durable solution for high-density fiber installations. An optional routing panel is available to enhance cable management and reduce stress on fibers.

Suitable for

• Data center and server room fiber distribution
• Telecommunication closets and network cabinets
• High-density fiber installations requiring modular adapter mounting
• Environments where rear cable entry and splice cassette accommodation are needed

Key specifications

• Model: DeLOCK 19" Fiber Optic HD Patch Panel 1U (MPN: 66924)
• Width x Height x Depth: 482.6 mm x 43.6 mm x 220 mm
• Rack size: 19", 1U
• Material: Metal, colour: Black

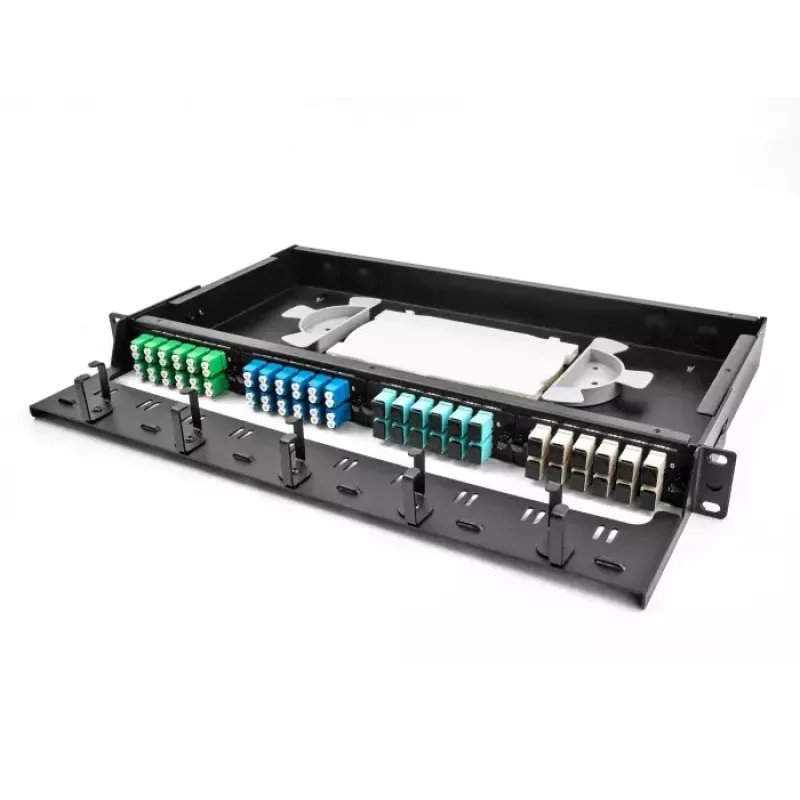

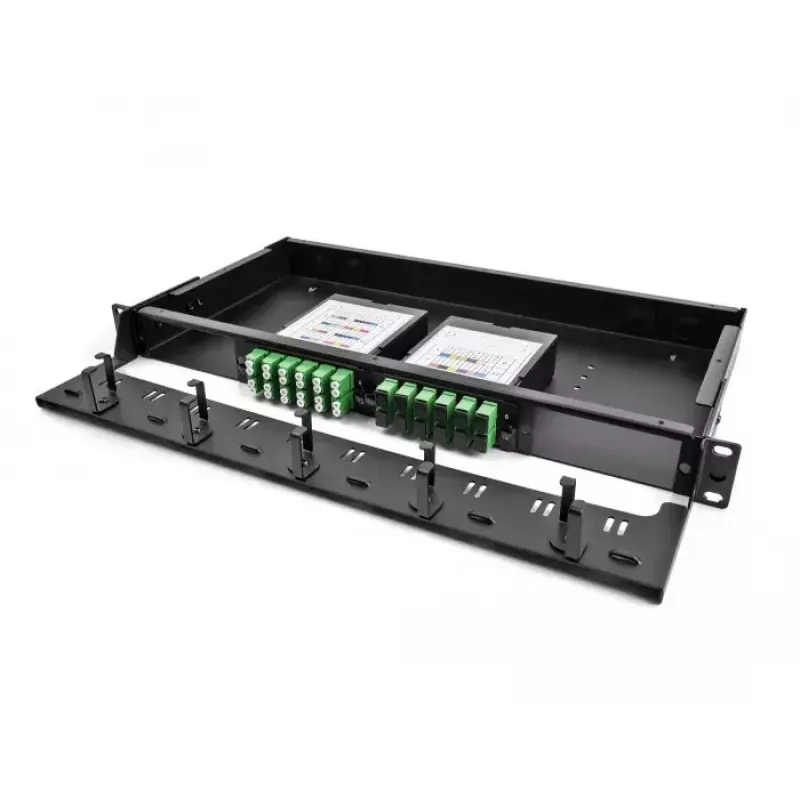

• Holds up to 4 HD cassettes or fiber adapter panels and 2 splice cassettes

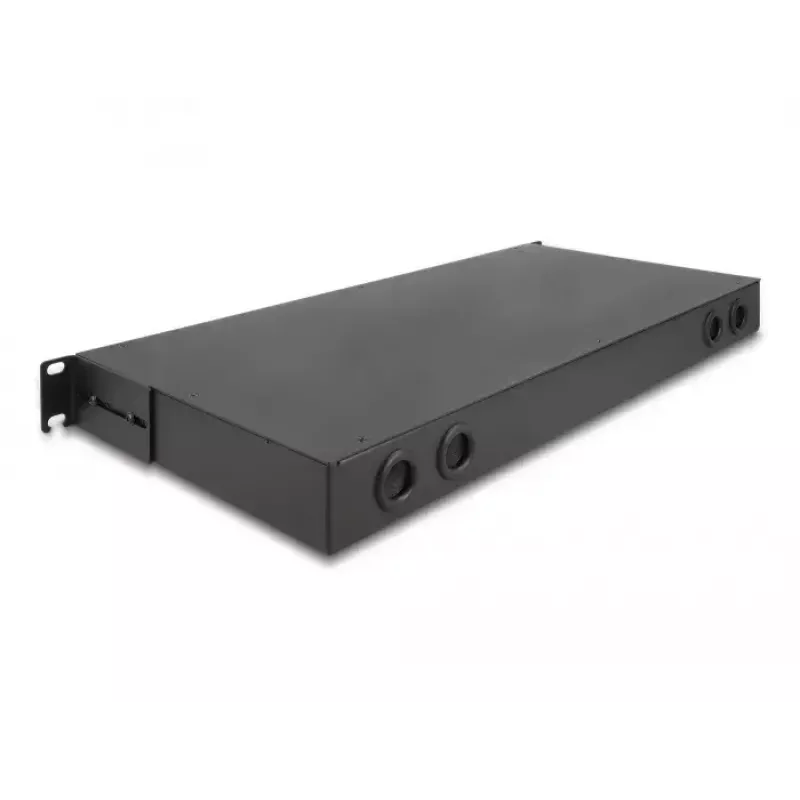

• Rear cable entry with 4 cable entry holes and removable cover

How to use

Mount the patch panel into a 19" rack using standard rack screws. Remove the rear cover if needed and feed fiber optic cables through the four rear cable entry holes. Install HD cassettes, fiber adapter panels or splice cassettes as required; each adapter panel or cassette can be added, moved or replaced individually. Use compatible pre-assembled adapter panels to install fiber couplers. Secure and route cables to avoid excessive bending or twisting.

Recommendations

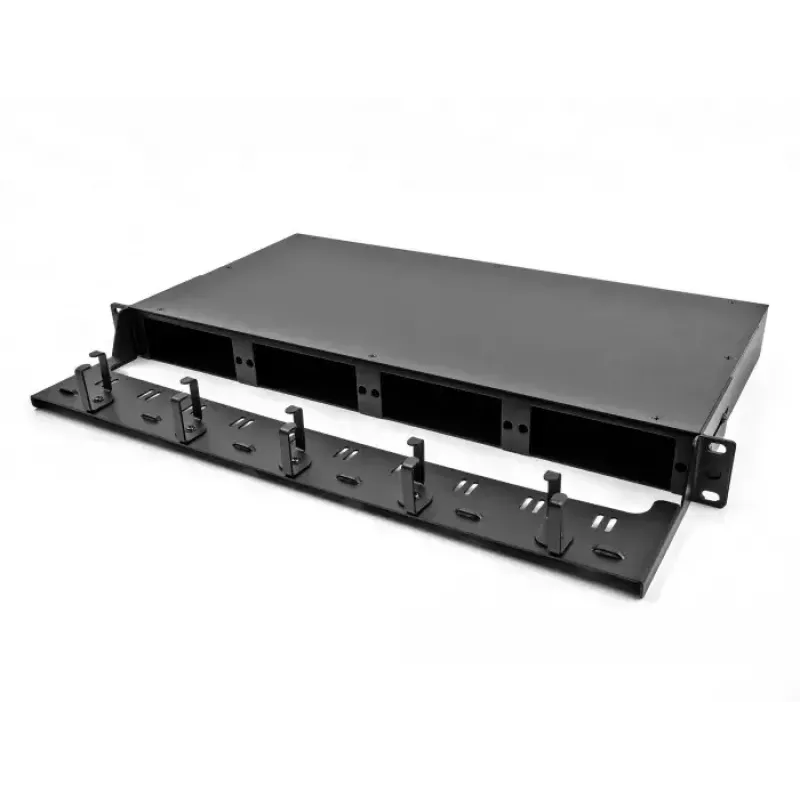

For optimal cable management and protection, consider mounting the optional routing panel accessory and use pre-assembled adapter panels. Ensure bend-radius compliance when routing fibers through the patch panel and avoid placing excessive mechanical stress on connectors and splices.
