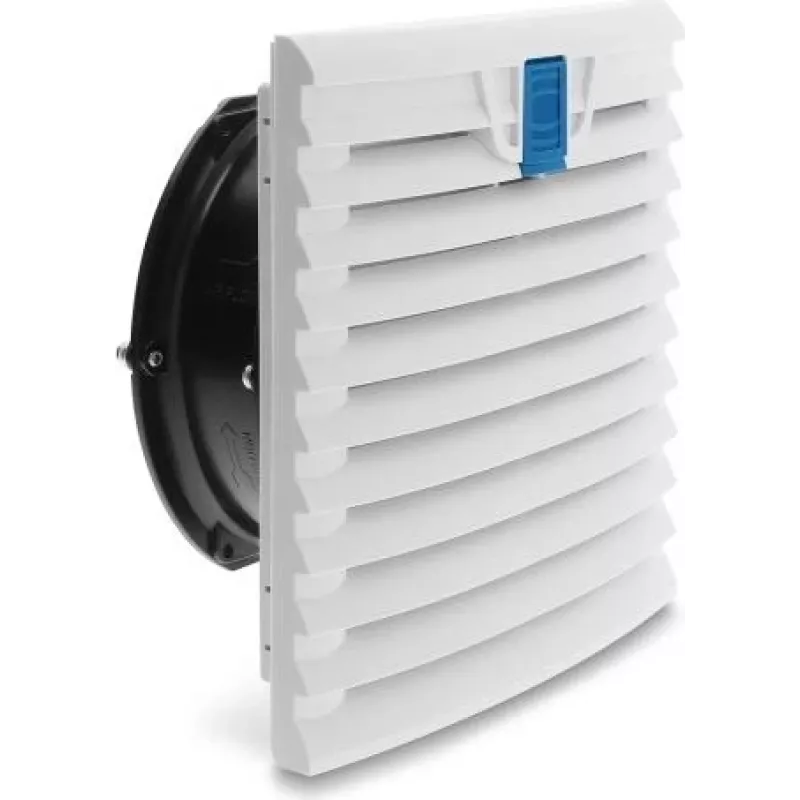

Delock ventilador axial 230 V AC com filtro 204 x 204 x 97 mm

This axial fan delivers a powerful airflow of 4.5 m³/min (158.9 CFM) at 230 V AC, making it an excellent choice for cooling electronics, enclosures, or server racks. The integrated filter mat captures dust and particles, ensuring clean air circulation and protecting sensitive equipment. The robust aluminum alloy frame and ball bearing design provide long-lasting reliability, with a lifespan of up to 50,000 hours at 40 °C. The fan operates at 2500 RPM with a noise level of 50 dB(A), balancing performance and acoustics. A metal grille is included for safety and protection. The fan connects via a 2-pin terminal block, simplifying installation. With an IP20 protection rating and an operating temperature range of -10 °C to 70 °C, it suits various indoor environments. CE and RoHS certified, this fan meets essential safety and environmental standards.

Advantages

High airflow for efficient cooling; removable filter mat for easy cleaning; durable aluminum frame and ball bearing for extended life; includes metal grille for safety; simple screw mounting.

Suitable for

• Cooling electrical enclosures and control cabinets
• Ventilating server racks and network cabinets
• Replacing worn-out fans in industrial equipment
• DIY projects requiring reliable AC ventilation

Key specifications

• Fan type: Axial
• Input voltage: 230 V AC, 50/60 Hz
• Current consumption: 0.12 A
• Power consumption: 20 W
• Airflow: 4.5 m³/min (158.9 CFM)
• Noise level: 50 dB(A)
• Fan speed: 2500 RPM
• Bearing type: Ball bearing
• Frame material: Aluminum

Recommendations

For optimal performance, clean the filter regularly and ensure proper ventilation clearance. Ideal for continuous operation in indoor environments.
