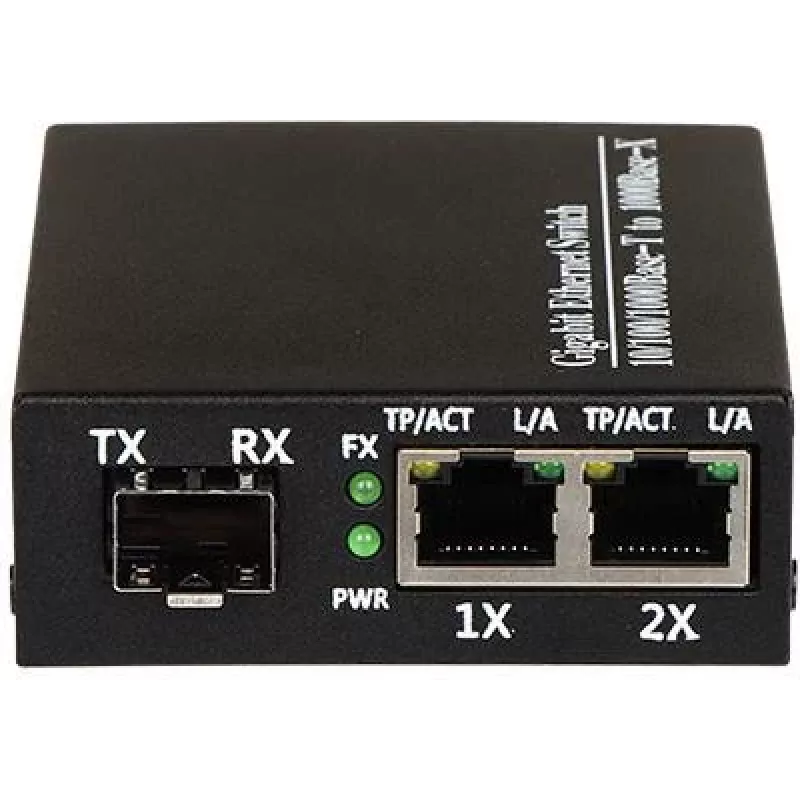

DELTA switch SFP 2 portas Gigabit EXPERT-SFP-1/2

In modern network environments, the need for high-speed, reliable connectivity over fiber optic cabling is paramount, especially in industrial and enterprise settings where electromagnetic interference or long distances render copper unsuitable. The DELTA EXPERT-SFP-1/2 addresses this challenge by providing a compact, unmanaged 2-port Gigabit SFP switch that enables seamless integration of fiber optic links into your existing network infrastructure. This device is ideal for connecting remote segments, extending network reach, or isolating traffic in demanding environments.

Who is it for

This switch is engineered for network administrators, system integrators, and IT professionals who require a simple, cost-effective solution for fiber-to-the-desk, surveillance backhaul, or industrial automation connectivity. It is equally suited for small businesses needing to bridge fiber connections without complex configuration, as well as for larger enterprises deploying edge connectivity in branch offices or remote cabinets.

Main features

• Two Gigabit SFP ports supporting 1000Base-X for high-speed fiber uplinks
• Non-blocking switching capacity of 4 Gbps with store-and-forward architecture
• Compact metal housing for durability and efficient heat dissipation
• Plug-and-play operation – no configuration required
• Supports jumbo frames up to 9K bytes for improved large-file transfer performance
• LED indicators for power and per-port link/activity status
• External 5V DC power supply with low power consumption (<3W)

Specifications

• Ports: 2 x Gigabit SFP (1000Base-X)
• Switching capacity: 4 Gbps
• Forwarding rate: 2.976 Mpps
• MAC address table: 1K entries
• Jumbo frame support: up to 9K bytes
• Switching method: Store-and-Forward
• Flow control: IEEE 802.3x full-duplex
• Standards: IEEE 802.3z 1000Base-X
• Power supply: External DC 5V
• Power consumption: < 3W
• Operating temperature: 0°C to 50°C
• Storage temperature: -20°C to 70°C
• Operating humidity: 5% to 90% non-condensing
• Housing: Metal
• Mounting: Desktop

Tips

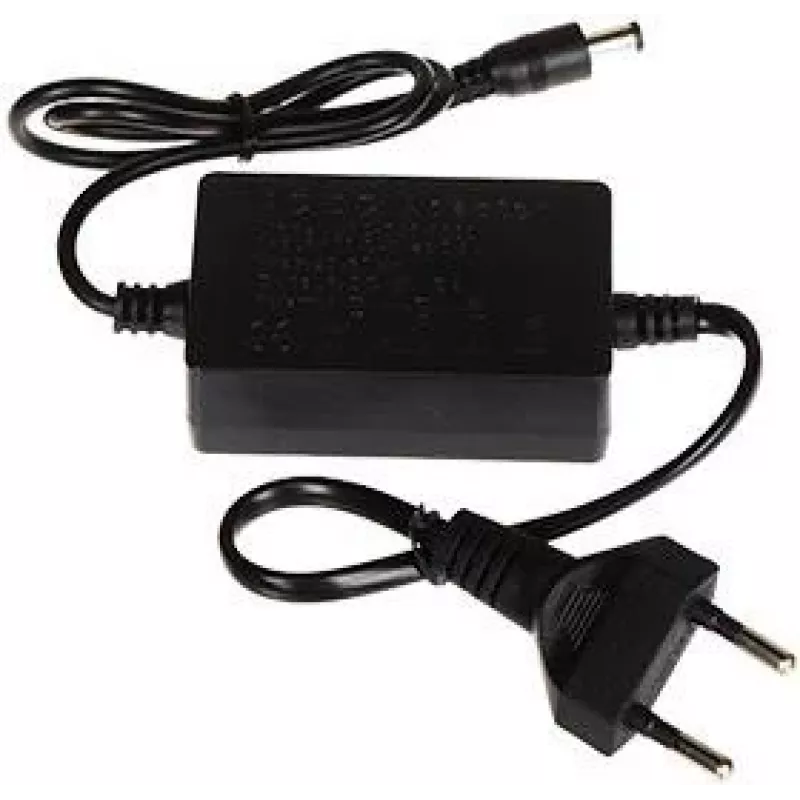

To maximize performance, use high-quality SFP modules that match your fiber type (multi-mode or single-mode) and required distance. Ensure proper ventilation around the switch, especially when operating near the upper temperature limit. For critical links, consider using bidirectional (BiDi) SFP modules to utilize existing single-strand fiber infrastructure. Always power the switch with the included or compatible 5V DC adapter to avoid damage.
