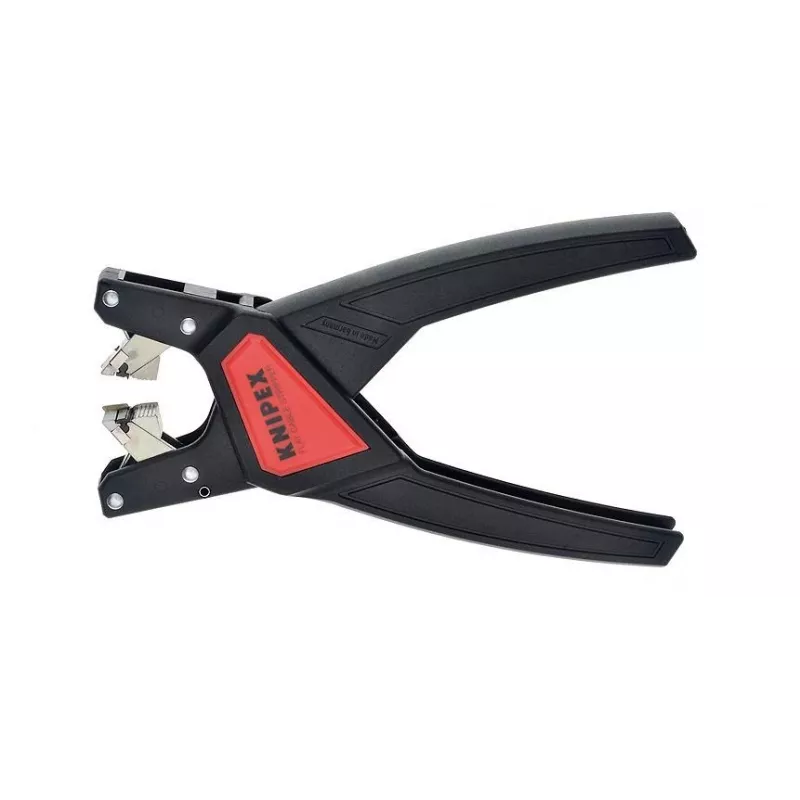

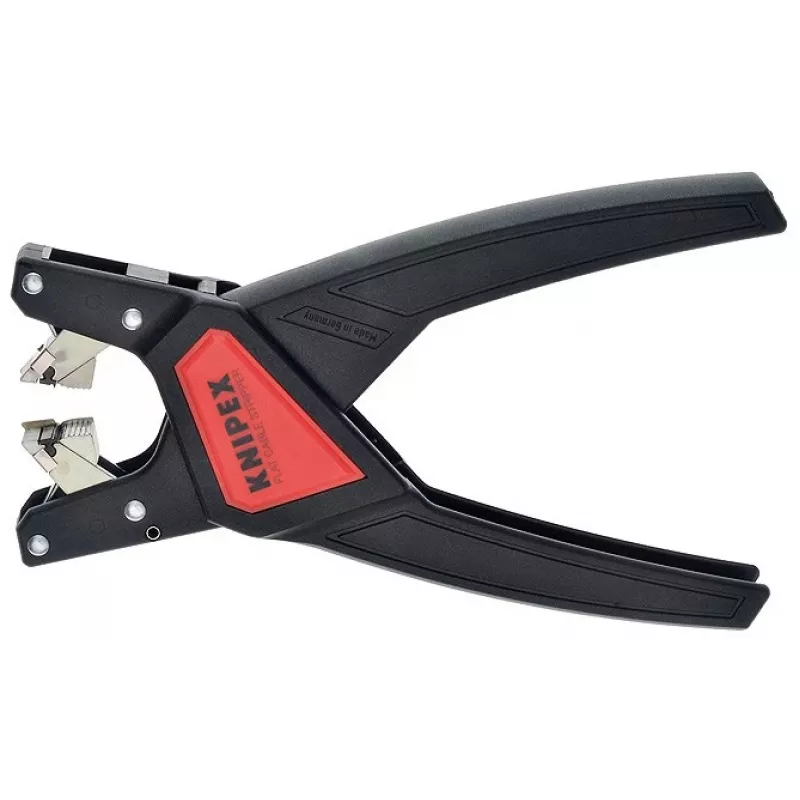

Descarnador de cabos Knipex 12 64 180

The Knipex 12 64 180 cable stripper is designed for precise removal of PVC insulation from flat cables. It accepts flat cables up to 12 mm wide with conductor cross-sections from 0.75 to 2.5 mm². The tool features a compact 125 mm length, a lightweight fibre-glass reinforced plastic body and an oil-hardened special tool steel blade that is replaceable.

Advantages

The automatic adaptation to different conductor heights reduces the risk of conductor damage and allows long stripping lengths. A smoothly operating mechanism and low weight of 180 g contribute to comfortable, controlled handling. The replaceable blade and durable materials increase service life.

Suitable for

• Stripping PVC insulated flat cables up to 12 mm width
• Installation and maintenance work in network and low-voltage systems
• Professional electricians and DIY electrical projects

Key specifications

• Cable type: PVC insulated flat cables
• Max cable width: 12 mm
• Conductor cross-section range: 0.75–2.5 mm²
• Length: 125 mm
• Weight: 0.18 kg
• Body material: glass-fibre reinforced plastic
• Blade material: oil-hardened special tool steel, replaceable
• Colour: Black
• Manufacturer: Knipex, MPN 12 64 180, EAN 4003773073284

How to use

Place the flat cable into the stripper so that the cutting blade aligns with the insulation to be removed. Squeeze the tool to engage the blade, then pull the tool along the cable to strip the insulation for the required length. The mechanism adapts automatically to conductor height; if the blade becomes dull, replace it according to the manufacturer's instructions.

Recommendations

Use this cable stripper on PVC insulated flat cables within the specified width and conductor range only. Inspect the blade regularly and replace when worn. Follow standard safety procedures for electrical work.
