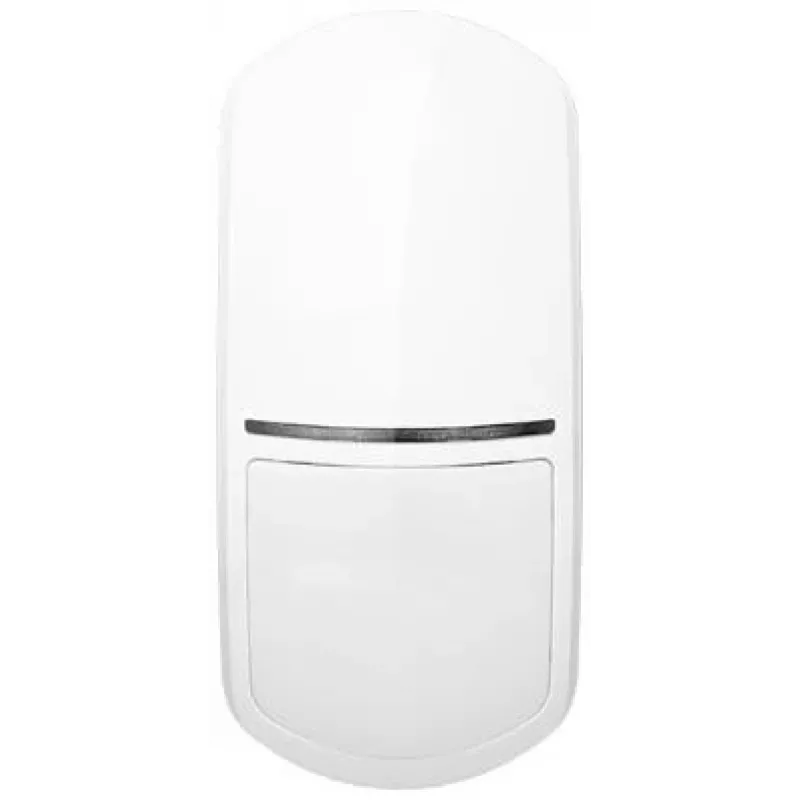

Detetor de movimento PIR digital SATEL SLIM-PIR-LUNA-BUS com LED branco, comunicação BUS

The SATEL SLIM-PIR-LUNA-BUS is a digital PIR motion detector designed for use with SATEL INTEGRA and VERSA alarm systems. It features a built-in white LED (LUNA) for illumination, creep zone protection, and pet immunity up to 20 kg. The detector communicates via the SATEL BUS, allowing remote configuration and integration into larger security systems.

Advantages

Reliable detection with digital temperature compensation, easy installation at 2.4 m height, and flexible remote configuration via BUS. The built-in white LED provides additional lighting in dark areas, enhancing security and convenience.

Suitable for

• Indoor security systems in residential and commercial buildings
• Integration with SATEL INTEGRA and VERSA alarm panels
• Areas requiring pet immunity up to 20 kg
• Applications needing creep zone protection

Key specifications

• Detector Type: Digital PIR (Passive Infrared)
• Detection Area: 15 m x 24 m
• Detection Angle: 90°
• Recommended Installation Height: 2.4 m
• Communication Interface: SATEL BUS (INTEGRA / VERSA compatible)
• Supply Voltage: 12 V DC (from bus)
• Max Current Consumption: 20 mA
• Operating Temperature Range: -10°C to +55°C
• Security Grade: Grade 2 (EN 50131-2-2)
• Environmental Class: II (EN 50130-5)
• Pet Immunity: Up to 20 kg
• Special Features: Built-in white LED (LUNA), Creep Zone Protection
• Tamper Protection: Enclosure opening
• Digital Compensation: Yes (temperature compensation)
• Remote Configuration: Yes
• Housing Material: ABS Plastic
• LED Indicator: Yes (alarm, status, test mode)

Recommendations

For optimal performance, install the detector at the recommended height of 2.4 m and ensure the detection area is free of obstructions. The detector is compatible with SATEL INTEGRA and VERSA control panels via the BUS interface. Remote configuration allows easy adjustment of settings without physical access.
