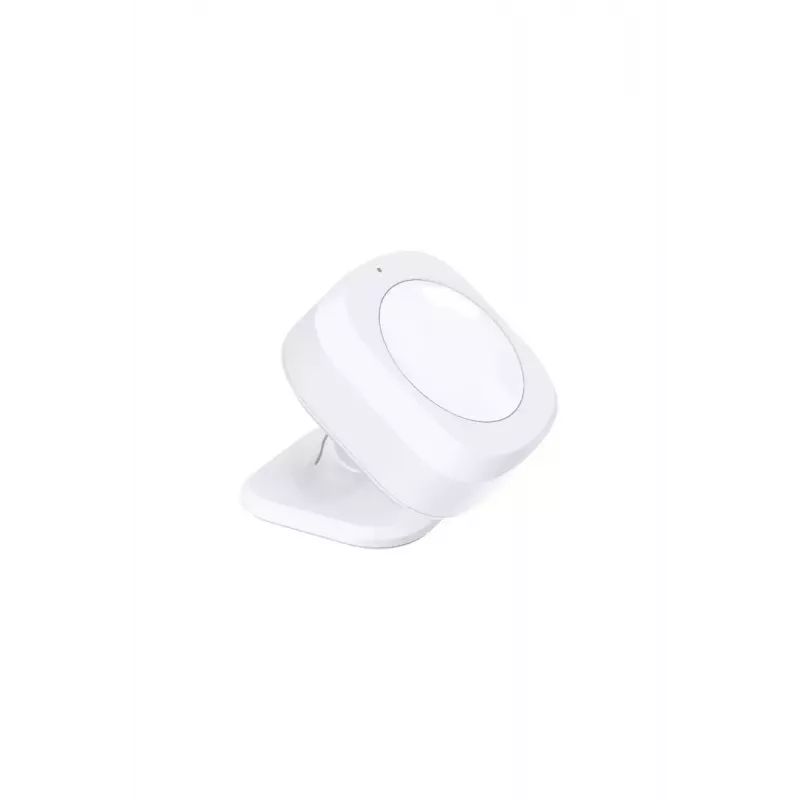

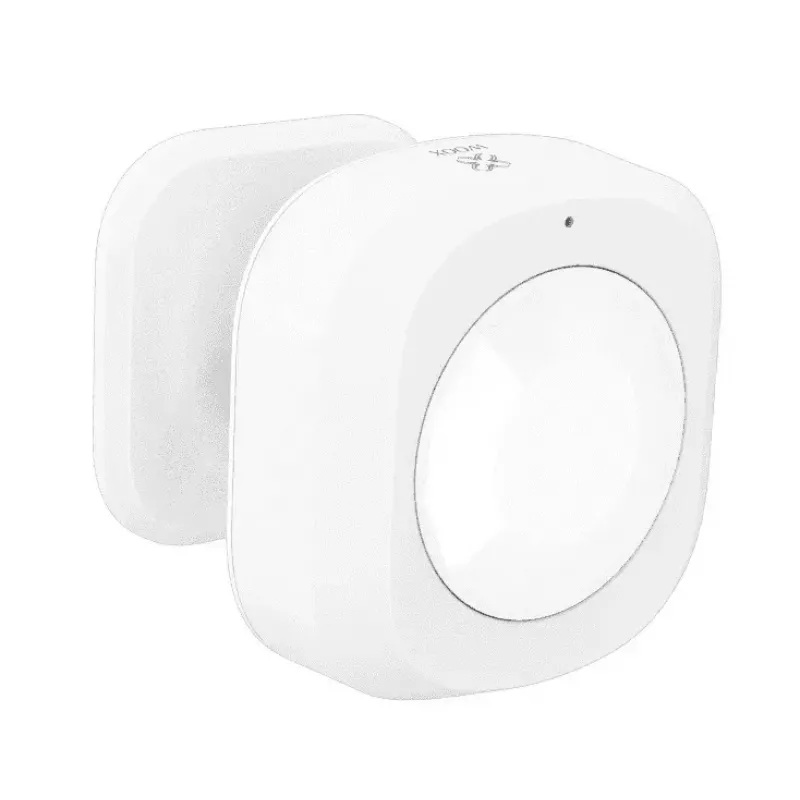

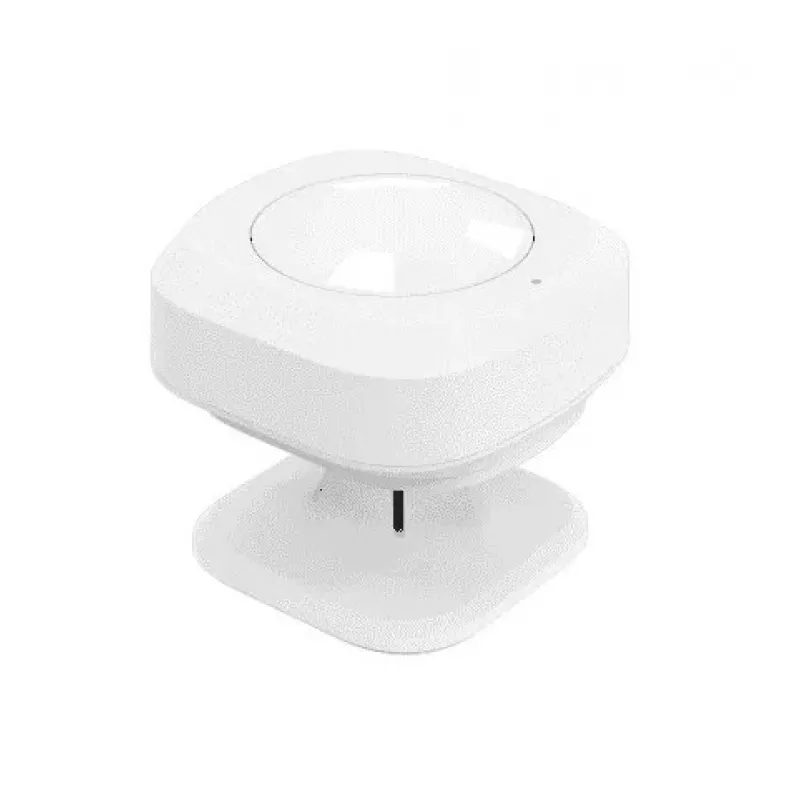

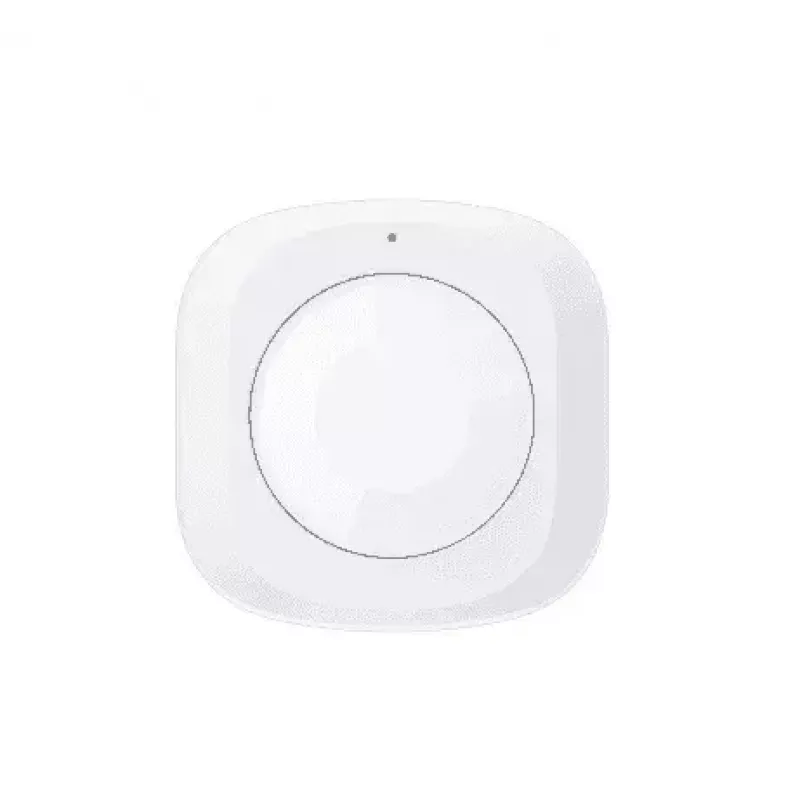

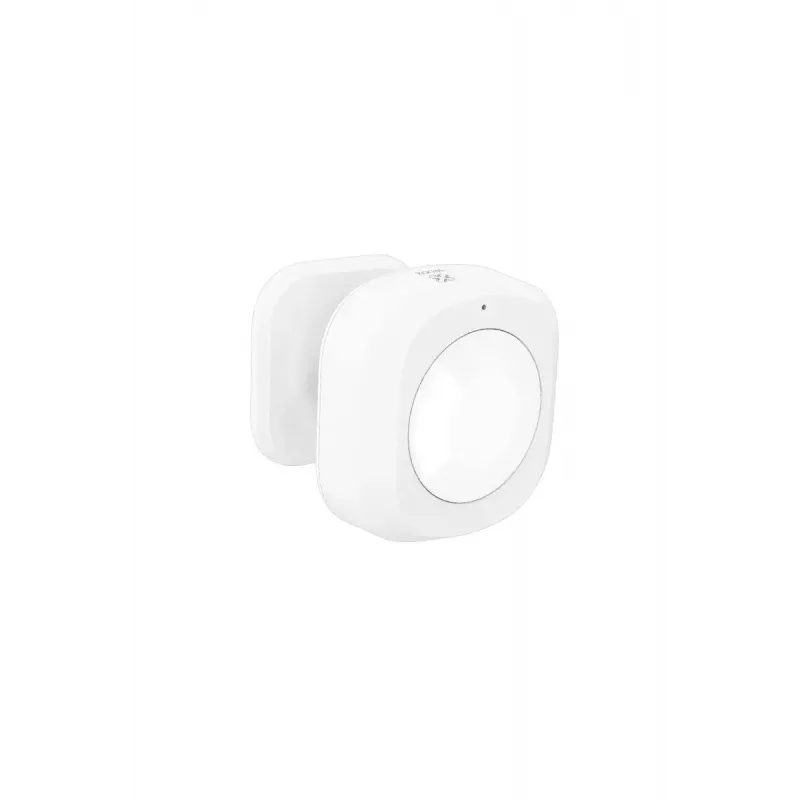

Detetor de movimento WOOX R7046

The WOOX R7046 Motion Detector is a wireless passive infrared (PIR) sensor designed to detect movement in homes and offices. It offers a detection range of up to 30 meters and a 110° detection angle, runs on a CR2450 battery and comes in a compact housing (57 × 57 × 52 mm). The device integrates with the WOOX Home app to configure motion detection, create automations and receive real‑time notifications when movement is detected.

Advantages

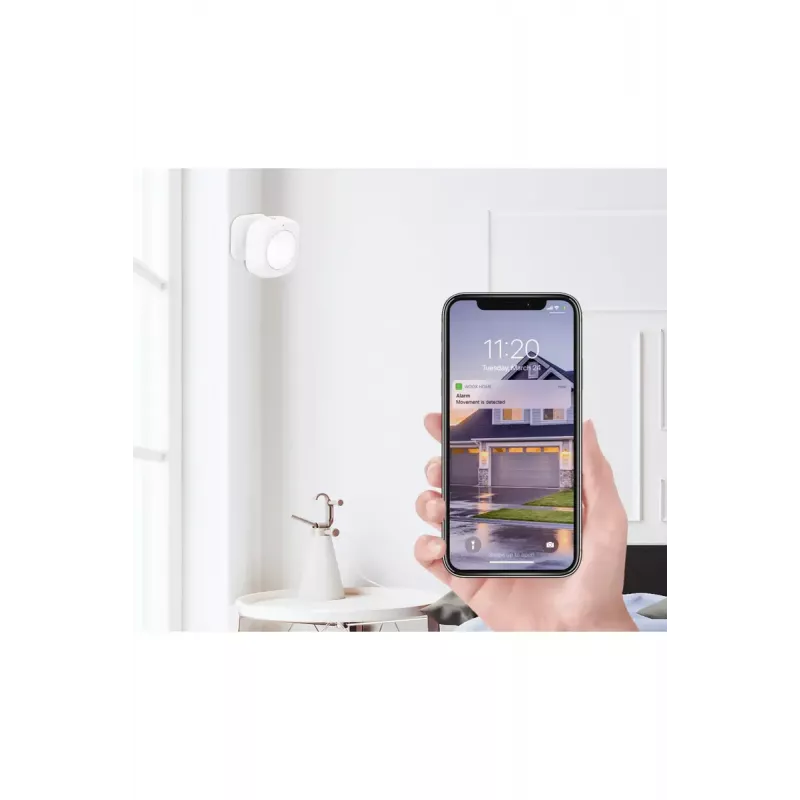

The R7046 provides reliable PIR detection with a long detection distance and wide angle while maintaining a compact form factor. Battery power (CR2450) enables wireless placement without the need for cabling. Integration with the WOOX Home app allows you to set automations — for example, switch WOOX Smart Lighting on when motion is detected — and receive instant notifications on your smartphone.

Suitable for

• Home security: corridors, entrances and living areas
• Office monitoring: hallways and shared spaces
• Triggering smart lighting and other automations
• Temporary or permanent installations where wireless detection is needed

Key specifications

• Model: WOOX R7046
• Type: Passive infrared (PIR) motion detector
• Detection distance: up to 30 m
• Detection angle: 110°
• Power source: CR2450 battery
• Dimensions: 57 × 57 × 52 mm
• Connectivity: integrates with WOOX Home app

How to use

Install the CR2450 battery and mount the detector in a location with a clear view of the area to be monitored, typically at a height and angle that covers the desired detection zone. Add the device in the WOOX Home app, follow the on‑screen pairing instructions and configure motion detection sensitivity and notifications. Create automations in the app to switch lights or other compatible devices on when motion is detected.

Recommendations

Place the sensor where its 110° field of view covers the primary traffic area; avoid pointing it directly at windows or heating sources to reduce false alarms. Check battery level periodically and test the sensor after installation to confirm proper coverage and app connectivity.
