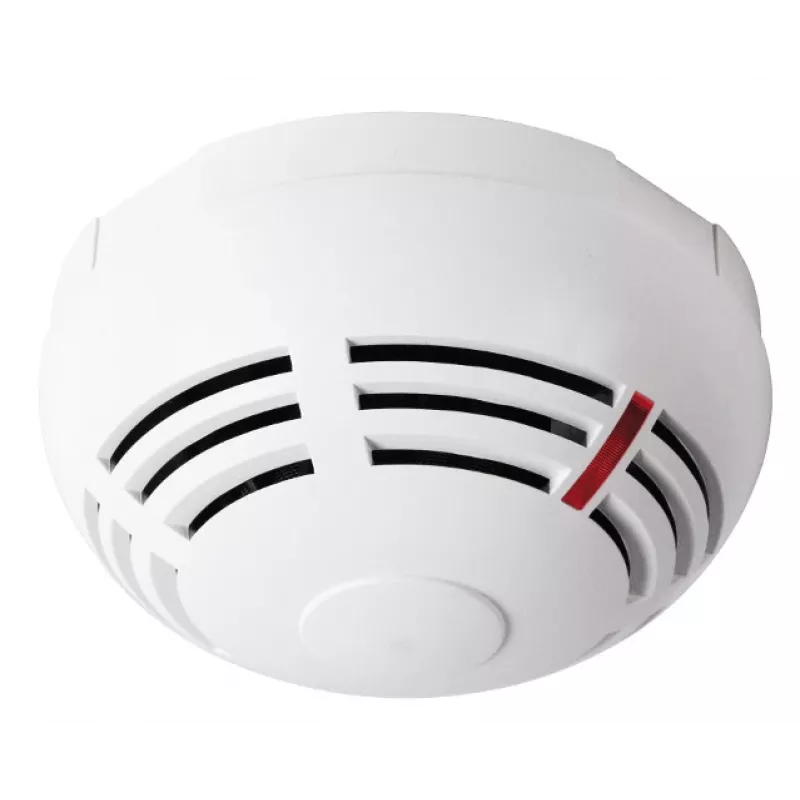

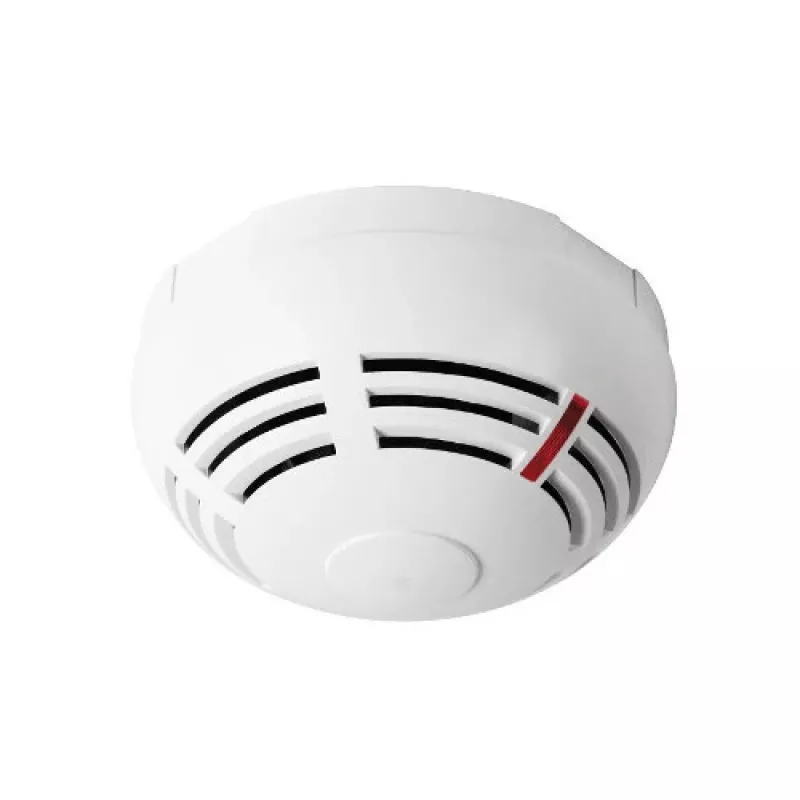

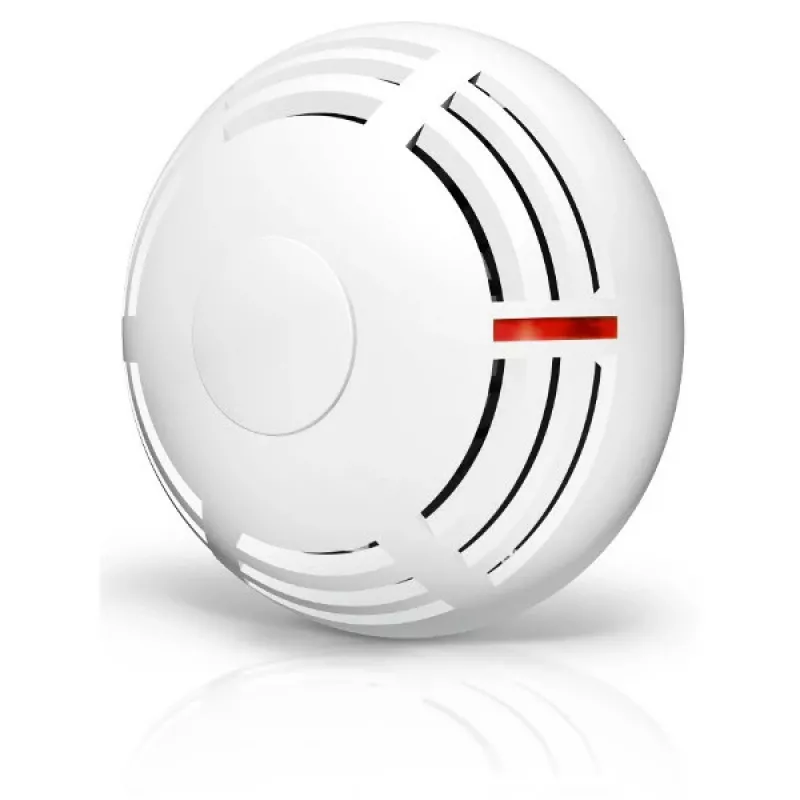

Detetor ótico de fumo SATEL DRP-100

The SATEL DRP-100 is a high-quality optical smoke detector designed for reliable fire detection in indoor environments. Utilizing the scattered light principle, it ensures early detection of smoldering fires, making it an essential component for modern security and fire alarm systems.

Advantages

Compliant with EN 54-7 standards, the DRP-100 offers automatic dust compensation and self-diagnosis for consistent performance. Its built-in test button and tamper switch simplify maintenance and enhance security. The detector features a red LED alarm indicator and supports both NC/NO relay outputs for flexible integration.

Suitable for

• Indoor fire detection in residential and commercial buildings
• Integration with SATEL alarm systems and other compatible panels
• Ceiling-mounted installations requiring reliable optical smoke sensing

Key specifications

• Detection principle: Optical (scattered light)
• Compliance: EN 54-7
• Operating voltage: 12 V DC (±15%)
• Standby current: 15 mA
• Alarm current: 22 mA
• Alarm output: Relay (NC/NO), 1 A / 30 V DC
• Operating temperature: -10°C to +55°C
• Operating humidity: Up to 93% (non-condensing)
• Alarm indication: Red LED
• Test function: Built-in test button
• Self-diagnosis: Detection chamber self-diagnosis
• Dust compensation: Automatic
• Tamper protection: Enclosure opening tamper switch
• Mounting type: Ceiling mount
• Enclosure color: White
• Application: Indoor

Recommendations

For optimal performance, install the DRP-100 in accordance with local fire safety regulations and test regularly using the built-in button. Pair with SATEL control panels for seamless system integration.
