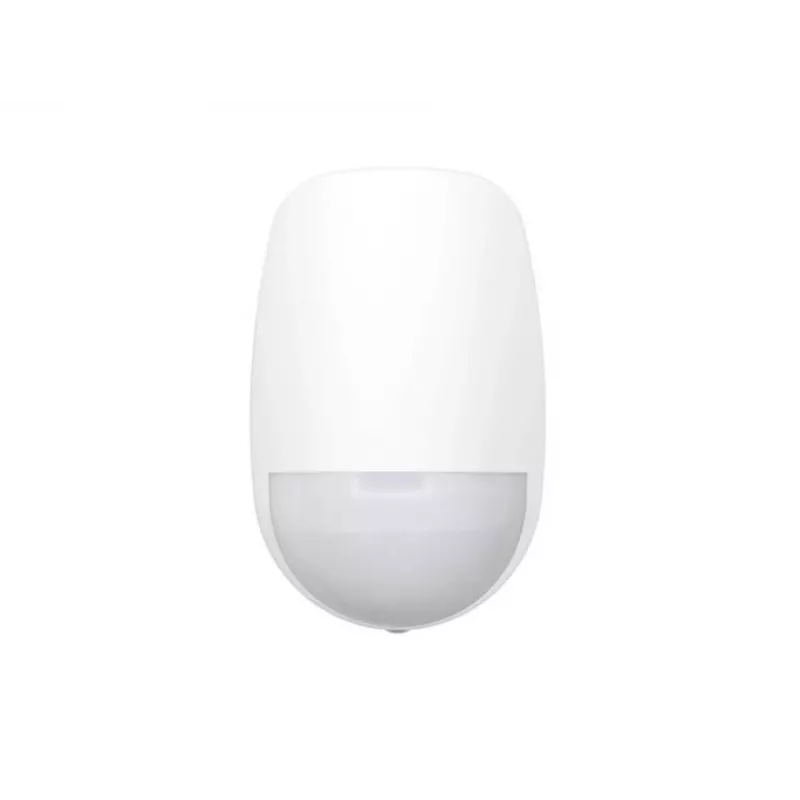

Detetor PIR e de micro-ondas Hikvision DS-PDD12P-EG2 com imunidade a animais e anti-mascaramento

With a dual-tech PIR and microwave detection engine, the Hikvision DS-PDD12P-EG2 delivers a 12 m range and 85.9° coverage angle, ensuring precise intrusion detection while ignoring pets up to 30 kg. Its Tri-X wireless technology operates on 868 MHz with a transmission range of up to 1200 m in open areas, making it ideal for large residential or commercial properties.

Overview

The DS-PDD12P-EG2 combines passive infrared and microwave sensors to reduce false alarms caused by environmental changes. Active IR anti-masking detects attempts to cover or block the detector, while front and rear tamper protection safeguards against removal. The detector is powered by two CR123A batteries, offering up to 5 years of operation, and is designed for indoor wall mounting at heights between 1.8 m and 2.4 m.

What stands out

• Dual-technology detection: PIR + 24 GHz microwave for reliable performance
• Pet immunity up to 30 kg, preventing false alarms from animals
• Tri-X wireless communication with 868 MHz frequency and 1200 m range
• Active IR anti-masking and dual tamper protection for enhanced security
• Long battery life: up to 5 years on two CR123A batteries
• White light filter up to 6500 lux for stable operation in bright environments

Technical details

• Detection method: PIR + Microwave
• PIR detection range: 12 m
• PIR detection angle: 85.9°
• Microwave frequency: 24 GHz (K-band)
• Wireless technology: Tri-X Wireless
• Wireless frequency: 868 MHz
• Wireless transmission range: up to 1200 m (open area)
• Battery type: 2 x CR123A
• Battery life: up to 5 years
• Installation height: 1.8 m to 2.4 m
• Anti-masking: Yes (Active IR)
• Tamper protection: Front and Rear
• Operating temperature: -10 °C to 55 °C
• Humidity: 10% to 90% (non-condensing)
• Security grade: Grade 2
• Environmental class: Class II
• White light filter: 6500 lux

Our verdict

The Hikvision DS-PDD12P-EG2 is a robust wireless motion detector that combines dual-tech sensing, pet immunity, and anti-masking in a Grade 2 certified package. Its long battery life and extended wireless range make it a dependable choice for professional security installations.
