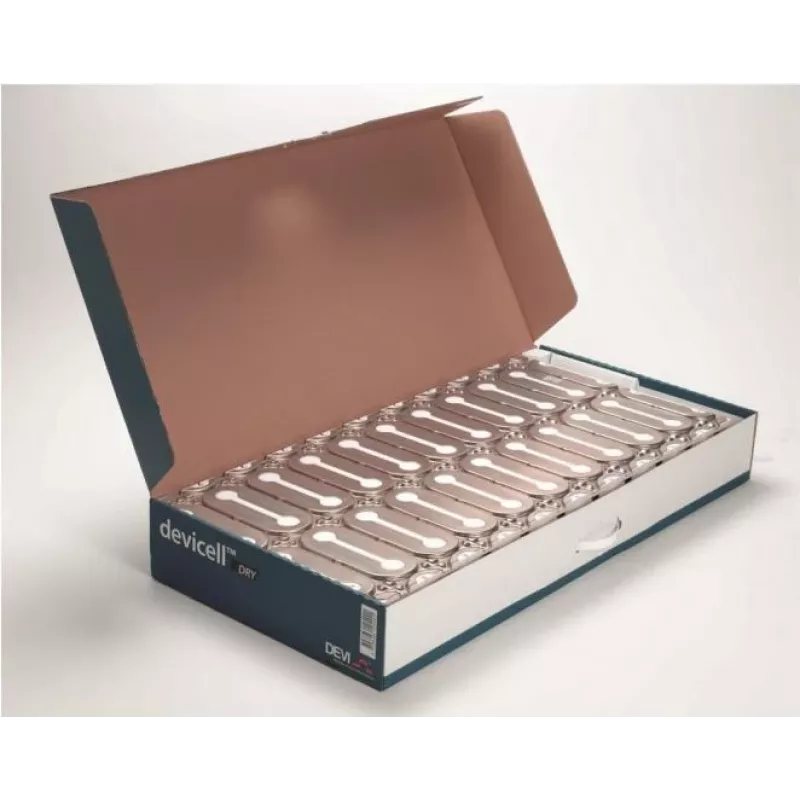

DEVI System Plates 5m² Pack de 10 Placas 140F1130

The DEVI System Plates 140F1130 are high-quality expanded polystyrene (EPS) plates designed for dry installation of electric underfloor heating systems. This pack covers 5 m² with 10 plates, each measuring 1000 x 500 x 12 mm. The integrated click-system ensures quick and secure placement of heating cables, making it ideal for both renovation and new build projects.

Advantages

Easy and fast dry installation without screed; excellent thermal insulation with low thermal conductivity of 0.035 W/(m·K); high compressive strength of 150 kPa ensures durability; compatible with DEVI heating cables such as DEVIflex; fire class E (EN 13501-1) for safety.

Suitable for

• Electric underfloor heating systems
• Renovation and new construction
• Dry installation over existing floors

Key specifications

• Product Type: Dry Installation System Plate
• Material: Expanded Polystyrene (EPS)
• Pack Quantity: 10 plates
• Coverage per Pack: 5 m²
• Plate Dimensions: 1000 x 500 x 12 mm
• Cable Spacing: 100 mm
• Max Cable Diameter: 7 mm
• Compressive Strength: 150 kPa
• Thermal Conductivity: 0.035 W/(m·K)
• Fire Class: E (EN 13501-1)

Recommendations

For optimal performance, use with DEVI heating cables and follow installation guidelines. Ensure the subfloor is clean and level before installation.
