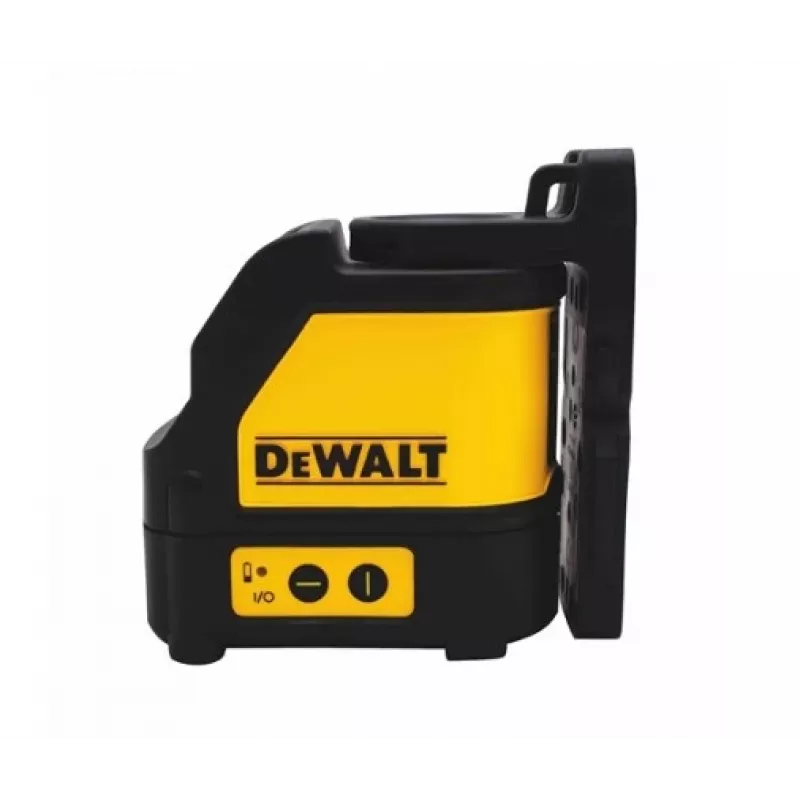

DeWALT DW088CG laser de linhas — laser verde, horizontal/vertical, alcance 30 m, rosca de tripé 1/8 polegadas, pilha AA (1 incluída), 3× suporte

The DeWALT DW088CG is a green cross line laser level designed for precise leveling and layout tasks. It projects bright crossing horizontal and vertical lines and supports a maximum range of 30 m (approximately 98 ft) without a detector; when used with a compatible detector (sold separately) the effective range can extend up to 165 ft. The unit is powered by a single AA alkaline battery and includes a 1/8" tripod thread for convenient mounting. Its over-molded housing in DeWALT’s durable design offers drop resistance up to 1 m, suitable for typical jobsite conditions.

Advantages

The DW088CG provides clear green laser lines that are easier to see in many lighting conditions compared with red lasers. Its compact, rugged over-molded housing increases shock resistance and on-site durability. The built-in horizontal and vertical beam directions deliver versatile alignment options for walls, floors and fixtures. A standard 1/8" tripod thread simplifies mounting on common supports and the single AA battery design allows quick replacement in the field.

Suitable for

• Interior wall and partition alignment
• Installing tiles and flooring
• Hanging cabinets, shelves and trim
• Track and conduit layout
• General leveling and construction layout tasks

Key specifications

• Model: DeWALT DW088CG
• Laser color: Green
• Beam directions: Horizontal and vertical (cross lines)
• Maximum range: 30 m (98 ft) without detector; up to 165 ft with detector
• Power source: 1 × AA alkaline battery
• Tripod thread: 1/8"
• Drop resistance: Up to 1 m
• Brand: DeWalt
• MPN: DW088CG
• EAN: 5035048669600

How to use

Place the DW088CG on a flat surface or mount it on a tripod using the 1/8" thread. Install a fresh AA alkaline battery and switch the unit on to project the green cross lines. Position the unit so the horizontal and vertical lines align with your reference points, then adjust the device location or use the detector (sold separately) for extended-range alignment. For best results, allow the laser to stabilize and verify alignment with a reliable measuring tape or level.

Recommendations

Use the built-in lines for close- to mid-range interior layout work; add a compatible laser detector when working outdoors or at longer distances. Replace the AA battery before each extended session and store the tool in a protective case to maintain calibration and housing integrity.
