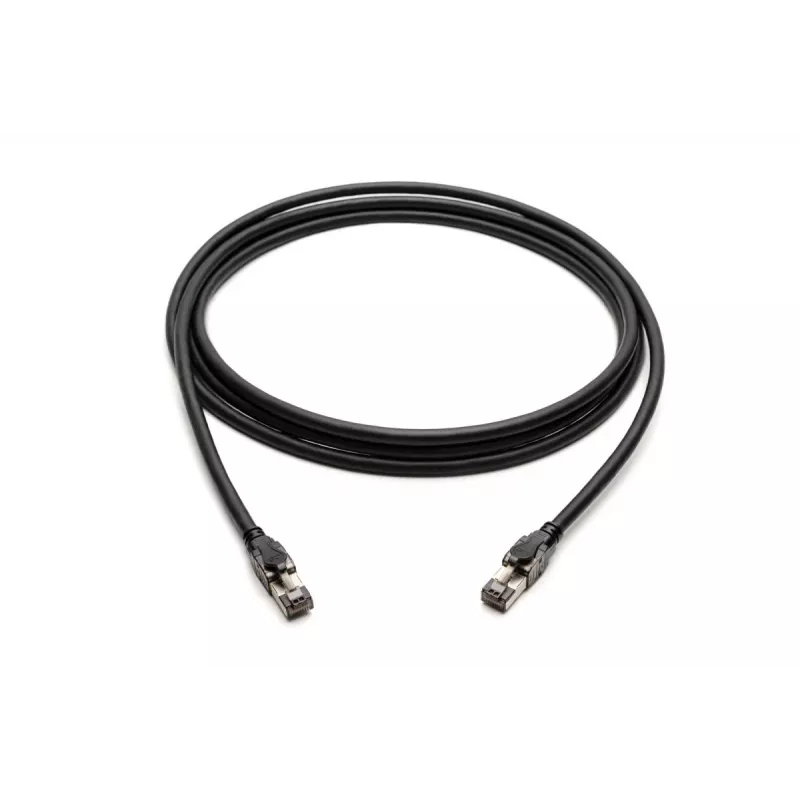

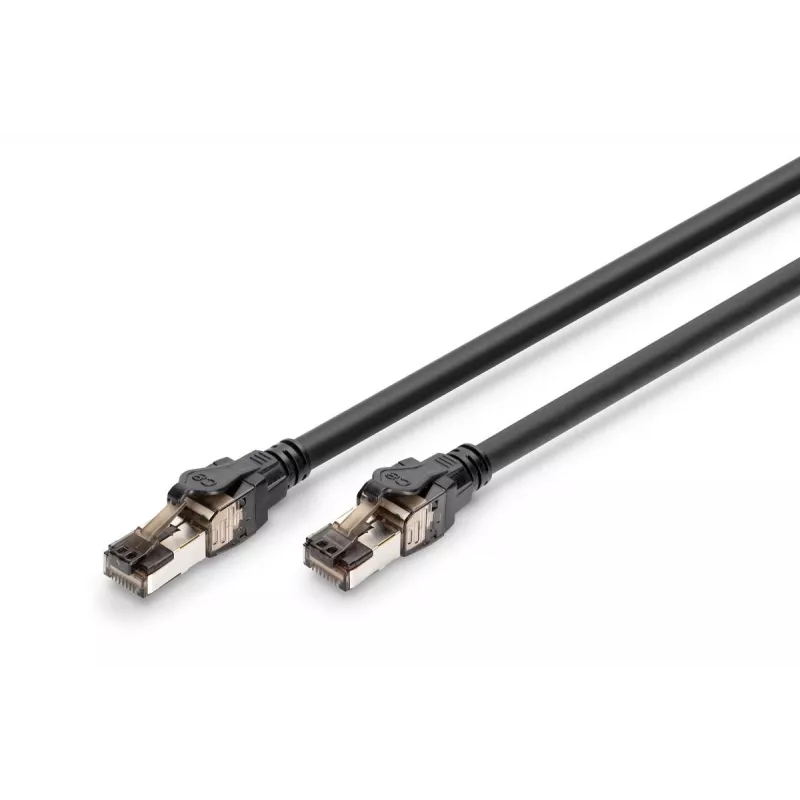

DIGITUS Cabo de patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - Preto

DIGITUS Cabo de patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - Preto
DIGITUS Cabo de patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - Preto
DIGITUS Cabo de patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - Preto
DIGITUS Cabo de patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - Preto
DIGITUS Cabo de patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - Preto
DIGITUS Cabo de patch - Cat. 8.1 - S/FTP - AWG 24/7 - 5m - Preto
26,54 €
The high-end network solution according to the CAT 8.1 standard- Highest performance: The CAT 8.1 patch cable with connector supports transmission rates of up to 40 Gbit/s at 2000 MHz for maximum network performance- New connector: RJ45 connector with integrated PCB for improved signal integrity and... Ler mais
Stock 4 Código 114294 Marca DIGITUS Modelo DK-1843-050 Garantia 2 anos

Envios e devoluções

Entrega prevista Terça-feira, Outubro 20
Receberá atualizações através do nosso sistema de seguimento detalhado
Opções de pagamento
Cartão bancárioVisaMastercardPayPalApple PayGoogle PayTransferência bancária

The high-end network solution according to the CAT 8.1 standard

- Highest performance: The CAT 8.1 patch cable with connector supports transmission rates of up to 40 Gbit/s at 2000 MHz for maximum network performance

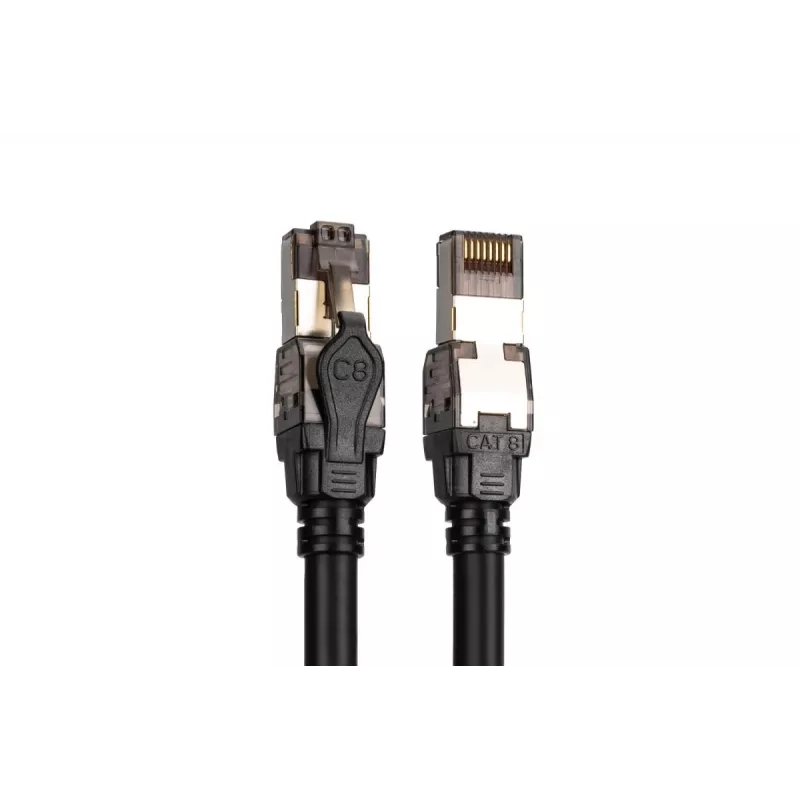

- New connector: RJ45 connector with integrated PCB for improved signal integrity and long-term stability
- Future-proof compatibility: Ideal for high-speed data centers, server rooms and industrial applications
- Supports the IEEE 802.3af (PoE), 802.3at (PoE+) and 802.3bt (PoE++ Type 3 & Type 4) standards

The DIGITUS® Category 8.1 Class I patch cables are manufactured and tested according to the ISO/IEC 11801 and DIN EN 50173 CAT 8.1 standard. They guarantee that the cable installation complies with the ISO & EN Channel specification and offer excellent performance in DIGITUS® CAT 8.1 cabling. The performance has been tested up to 2,000 MHz, including performance characteristics such as near-end crosstalk ("NEXT"). The DIGITUS® patch cables have been specially developed to fully meet all requirements in the various application areas. Each cable is equipped with a molded anti-kink grommet with strain relief. The grommet also has a latching lever protection, which prevents the cable from getting caught and the latching lever from breaking off the plug.

Destaques principais
  • 2 x RJ45 plug connector (PCB)
  • RJ45 plug connector 3 μ nominal gold-plated over 60 μ nickel-primed contact pins
  • FO-PE (foamed polyethylene) insulation
  • Total diameter 8.0 mm ± 0.2 mm
  • Bending radius 15x OD
  • Wiring standard EIA/TIA 586B
  • Color code orange x white, green x white, blue x white, brown x white
  • Pin assignment 1:1
  • Contact resistance 750 mating cycles
  • Contact resistance 30 mΩ maximum
  • Unbalanced resistance 3% maximum
  • Insulation resistance 2500 VDC for 3 seconds
  • Uninsulated resistance 150 MΩ/km minimum
  • Operating temperature -20 °C to +60 °C
  • NVP 72%
  • Flame resistance IEC 60332-1
  • Smoke emission IEC 61034
  • Typical applications IEEE 802.3 Ethernet (10/100/1000BASE-T)
  • PoE according to IEEE 802.3af/at/bt (PoE+, PoE++ type 3 & 4)
  • Standards ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-5
Especificações
Altura da embalagem
10 mm
Bitola do fio (AWG)
24/7
Blindagem do cabo
S/FTP (S-STP)
Blindagem do conector
Yes
Certificação
IEC 60332-1 IEC 61034 SO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-5
Comprimento do cabo
5 m
Conector 1
RJ-45
Conector 2
RJ-45
Cor do produto
Black
Diâmetro exterior
8 mm
Formato do cabo
Round
Formato do conector 1
Straight
Formato do conector 2
Straight
Frequência
2000 MHz
Género do conector 1
Male
Género do conector 2
Male
Largura da embalagem
340 mm
Material da bainha
Low smoke zero halogen (LSZH)
Material da blindagem do conector
Metal foil
Material do condutor
Copper
Norma do cabo
Cat8.1
Peso da embalagem
240 g
Plug and Play
Yes
Profundidade da embalagem
370 mm
Quantidade por embalagem
1 pc(s)
Raio de curvatura (mín.)
1.5 cm
Revestimento dos contactos do conector
Gold
Temperatura de funcionamento (T-T)
-20 - 60 °C
