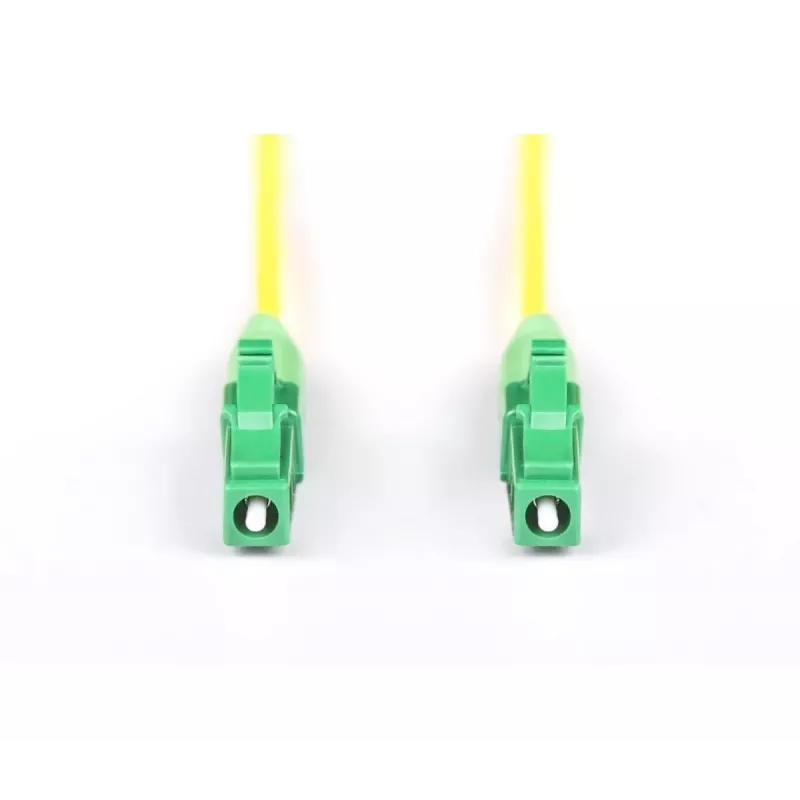

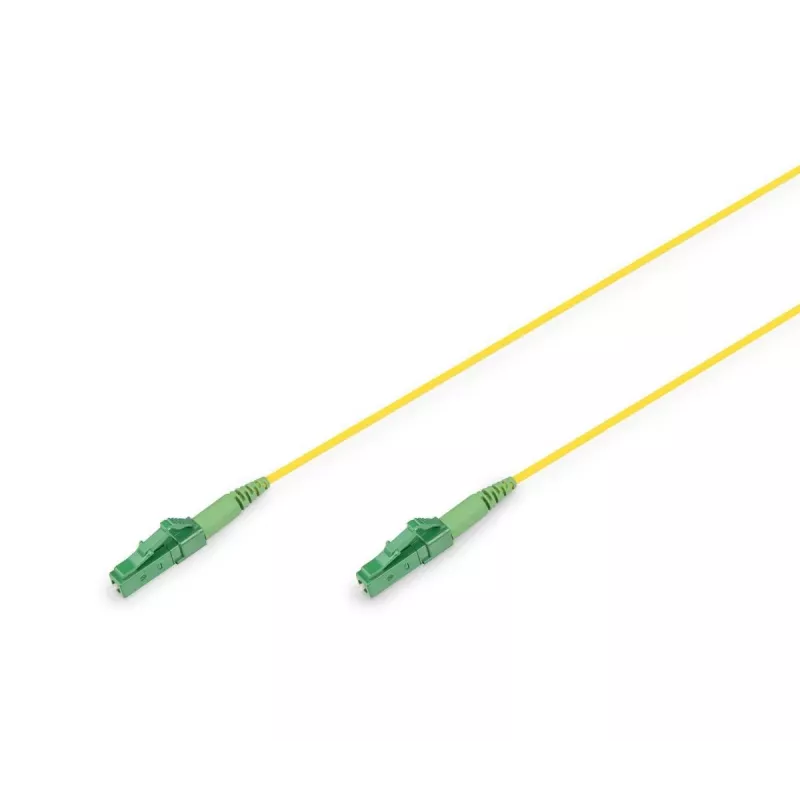

DIGITUS Cabo de patch de fibra ótica - SM simplex LC/APC para LC/APC G.657.A02 10m

DIGITUS Cabo de patch de fibra ótica - SM simplex LC/APC para LC/APC G.657.A02 10m
DIGITUS Cabo de patch de fibra ótica - SM simplex LC/APC para LC/APC G.657.A02 10m
DIGITUS Cabo de patch de fibra ótica - SM simplex LC/APC para LC/APC G.657.A02 10m
DIGITUS Cabo de patch de fibra ótica - SM simplex LC/APC para LC/APC G.657.A02 10m
6,16 €
High-quality fibre simplex patch cables offer an excellent connectivity option for indoor and FTTx applications. The longetivity of cables is ensured by reliable connector performance.- High flexibility- Bend insensitive- High precision and low insertion loss- Compliant with G.657.A2The single mode ... Ler mais
Stock 30 Código 129350 Marca DIGITUS Modelo DK-2933-10-APC-SX Garantia 2 anos

Envios e devoluções

Entrega prevista Sexta-feira, Outubro 23
Receberá atualizações através do nosso sistema de seguimento detalhado
Opções de pagamento
Cartão bancárioVisaMastercardPayPalApple PayGoogle PayTransferência bancária

High-quality fibre simplex patch cables offer an excellent connectivity option for indoor and FTTx applications. The longetivity of cables is ensured by reliable connector performance.

- High flexibility
- Bend insensitive
- High precision and low insertion loss
- Compliant with G.657.A2

The single mode simplex fiber cable enables easier installation due to their bend insensitive characteristic. It is designed to transmit data with less attenuation when bent or twisted and as a result the cables are very efficient. Therefore, this makes the cable excellently suited for confined spaces. It is ideal for use in telecommunications, FTTx (FTTH, FTTB) applications and also gives more space for high-density cable installation requirements in enterprise networks, telecom rooms, server farms, horizontal and equipment distribution areas.

Destaques principais
  • Fiber type : Singlemode 9/125
  • Category : G657A2
  • Cable length : 10 m
  • Number of fibers: 1
  • Cable structure : Simplex
  • Connector 1 type : LC/APC
  • Connector 2 type : LC/APC
  • Maximum tractive force : 100 N
  • Cable type : I-V(ZN) H
  • Cable Ø : 2.0 mm
  • Minimum Bend Radius : 7.5 mm
  • Sheath color : Yellow
  • Jacket material : LSZH
  • Insertion loss 1310 nm : 0.3 dB
  • Working temperature : -20 - 70 °C
  • Storage temperature : -20 - 85 °C
Especificações
Comprimento do cabo
10 m
Comprimentos de onda suportados
1310 nm
Conector 1
LC
Conector 2
LC
Cor do produto
Yellow
Diâmetro do cabo
2 mm
Diâmetro do núcleo
9 µm
Diâmetro do revestimento
125 µm
Duplex integral
No
Estrutura do modo de fibra
Single-mode
Formato do cabo
Round
Género do conector 1
Male
Género do conector 2
Male
Material da bainha
Low smoke zero halogen (LSZH)
Plug and Play
Yes
Quantidade por embalagem
1 pc(s)
Raio de curvatura
7.5 mm
Temperatura de armazenamento (T-T)
-20 - 85 °C
Temperatura de funcionamento (T-T)
-20 - 70 °C
Tipo de cabo
I-V(ZN) H
Tipo de fibra ótica
G.657.A2
Tipo de polimento do conector
APC

Folheto

Abrir documento
Histórico de preços nos últimos 6 meses
DIGITUS Cabo de patch de fibra ótica - SM simplex LC/APC para LC/APC G.657.A02 10m
Atual
6,16 €
Mais baixo
4,17 €
Mais alto
13,87 €
Variação 24 h
+1,42 €   +30%
Semana
+1,39 €   +29%
Mês
-0,72 €   -10%
