DIGITUS Cabo drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m

DIGITUS Cabo drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cabo drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cabo drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cabo drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cabo drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cabo drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cabo drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
DIGITUS Cabo drop FTTH - monomodo 4 fibras LC/APC G.657.A2 50m
53,01 €
High-quality cables offer an excellent option for fiber optic connections in the intended network level 4. Installation is facilitated by pre-assembled connectors for all 4 fibers at one end of the cable.- Significantly reduces installation time- Pre-assembled with LC/APC connectors on one side- The... Ler mais
Stock 2 Código 129349 Marca DIGITUS Modelo DK-3904LCA-50 Garantia 2 anos

Envios e devoluções

Entrega prevista Terça-feira, Outubro 27
Receberá atualizações através do nosso sistema de seguimento detalhado
Opções de pagamento
Cartão bancárioVisaMastercardPayPalApple PayGoogle PayTransferência bancária

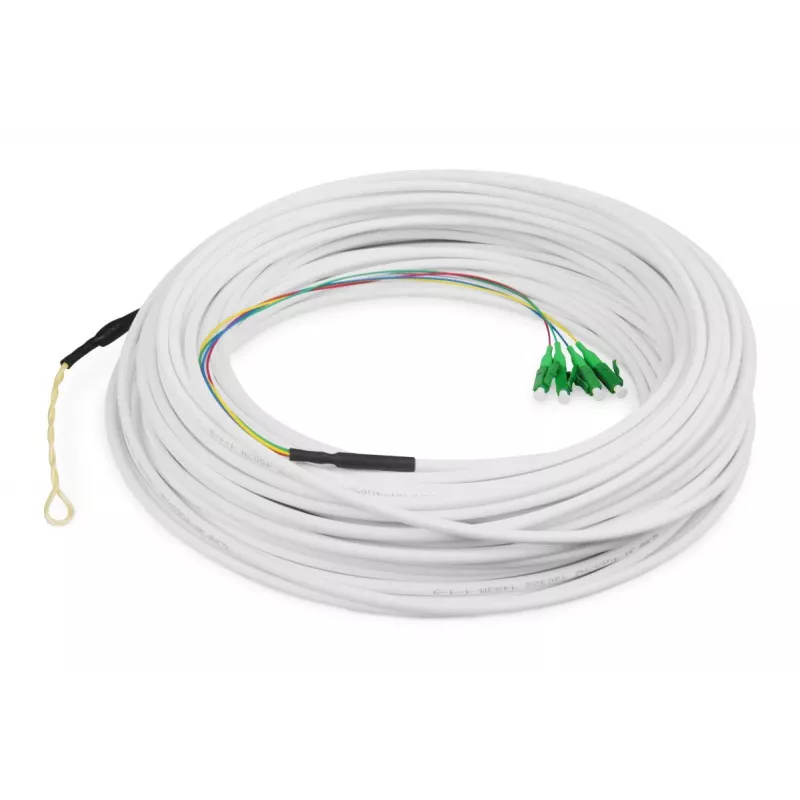

High-quality cables offer an excellent option for fiber optic connections in the intended network level 4. Installation is facilitated by pre-assembled connectors for all 4 fibers at one end of the cable.

- Significantly reduces installation time

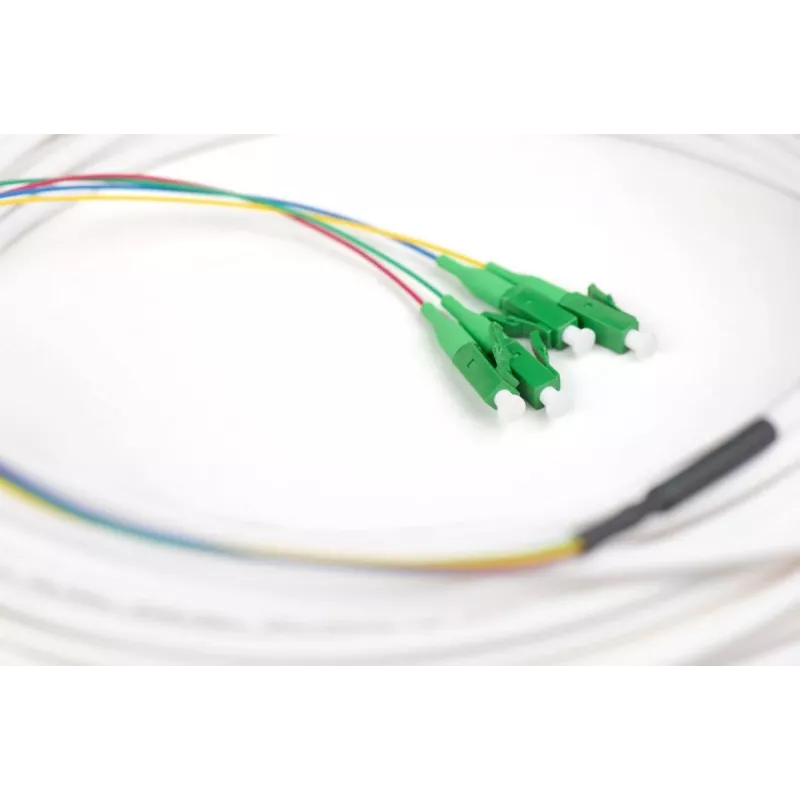

- Pre-assembled with LC/APC connectors on one side
- The open end can simply be pulled in or connected to the house distributor
- G.657A2 bend-optimized

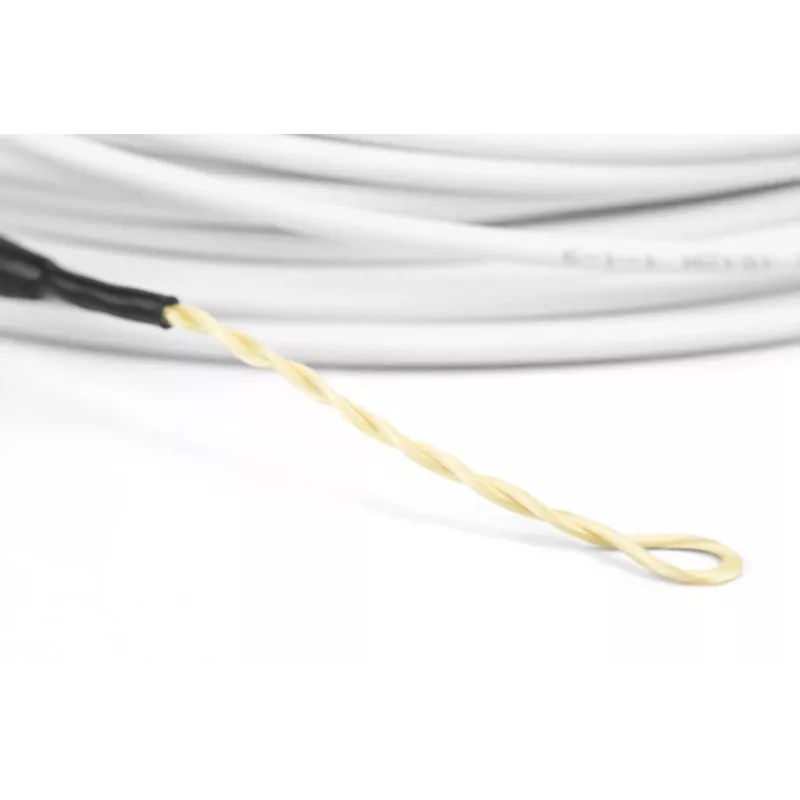

- Sturdy pull-in loop for pulling the cable into trunking systems

The growing demand for the extension of fiber optic networks into the home requires products that enable simple and efficient installation to implement the network. The Digitus cable offers the possibility of easily extending and completing the fiber optic network in the home. The cable is designed for use as a connecting cable between the building distributor and the floor distributor or subscriber termination point at network level 4. The simple installation results from the fact that the cable is pre-assembled on the subscriber side and open with LC/APC connectors; it can then be installed through a duct to the distributor, which serves as the entry point for the fiber optic network in the building.

Destaques principais
  • Fiber type : Singlemode 9/125
  • Category : G657A2
  • Cable length : 50 m
  • Number of fibers : 4
  • Fiber colors : blue, green, yellow, red

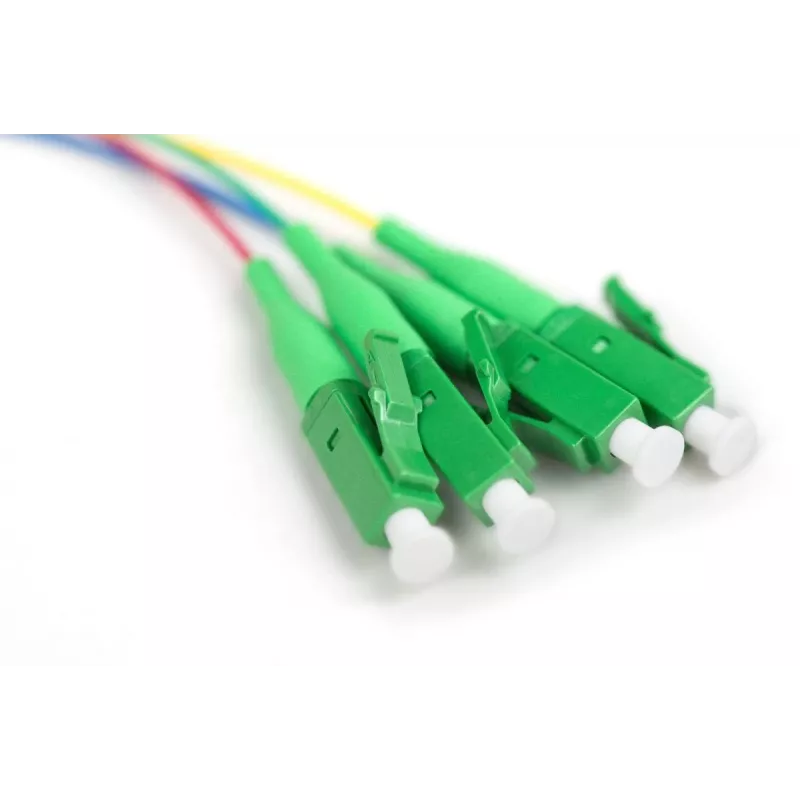

  • Connector type : LC/APC
  • Coat color : White
  • Sheath material : LSZH
  • Stranding element : Kevlar yarn
  • Cable structure : Dca
  • Cable diameter : 2,4mm
  • Diameter of the pulling aid : 7-8cm (length)
  • Min. Bending radius of the cable : 10D/20D
  • Tensile strength : 400 N
  • Compressive strength : 1000 N
  • Insertion loss of the plug : ≤0.3 dB
  • Return loss of the plug : ≥60 dB
  • Storage temperature : -40 to +80 °C
  • Working temperature : -20~+70
  • Cable weight : 0,63kg
Especificações
Comprimento do cabo
50 m
Conector 1
4x LC
Conector 2
No
Cor do produto
White
Diâmetro do cabo
4 mm
Diâmetro do núcleo
9 µm
Diâmetro do revestimento
125 µm
Estrutura do modo de fibra
Single-mode
Formato do cabo
Round
Género do conector 1
Male
Género do conector 2
No
Material da bainha
Low smoke zero halogen (LSZH)
Perda de inserção
0.3 dB
Perda de retorno
60 dB
Peso
630 g
Plug and Play
Yes
Quantidade por embalagem
1 pc(s)
Resistência à compressão
1000
Temperatura de armazenamento (T-T)
-40 - 80 °C
Temperatura de funcionamento (T-T)
-20 - 70 °C
Tipo de cabo
LC/APC
Tipo de fibra ótica
G.657.A2
Tipo de polimento do conector
APC
