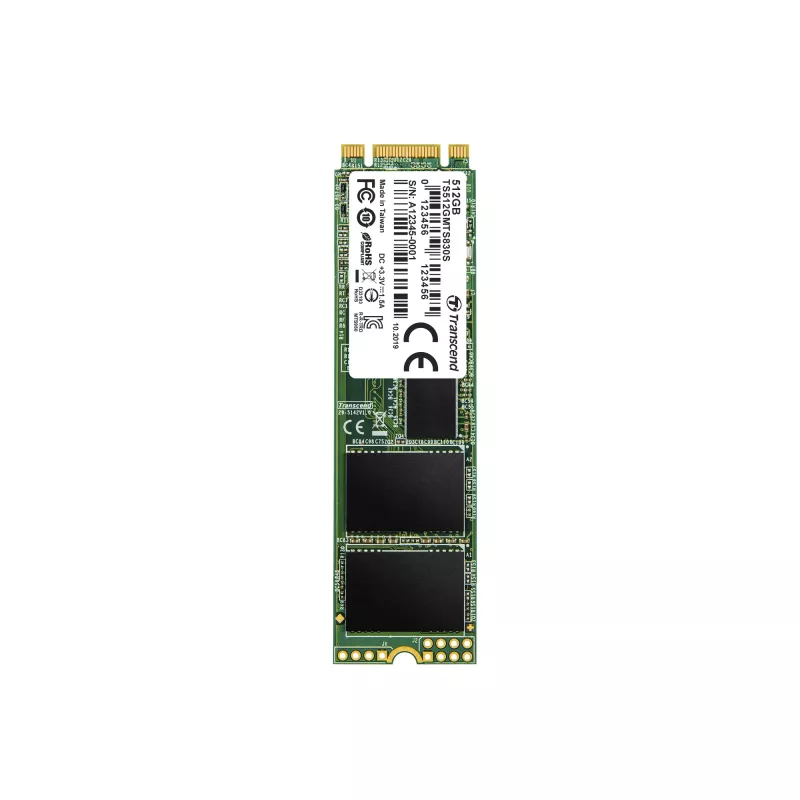

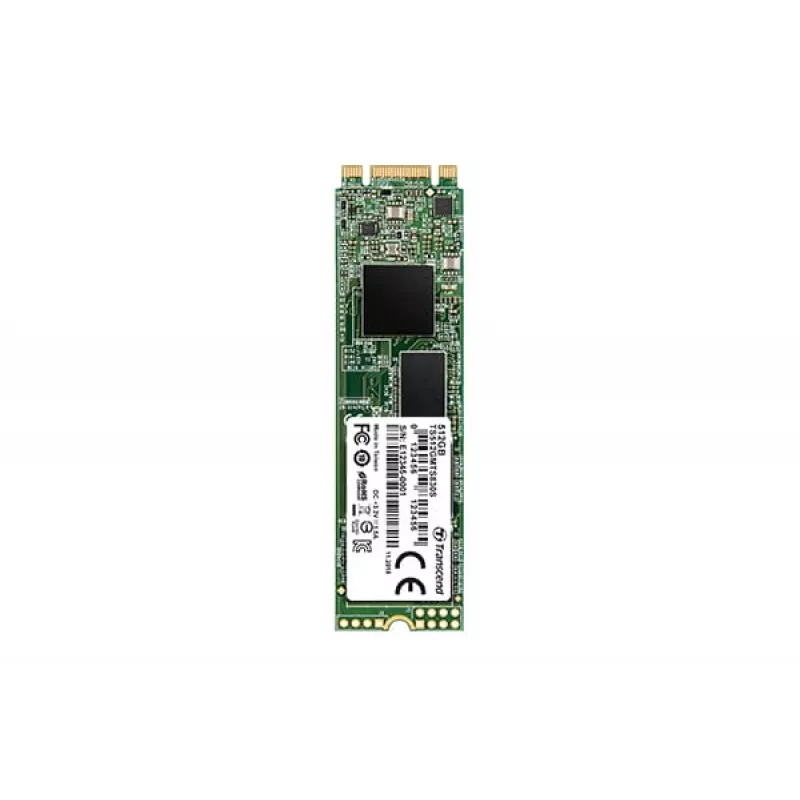

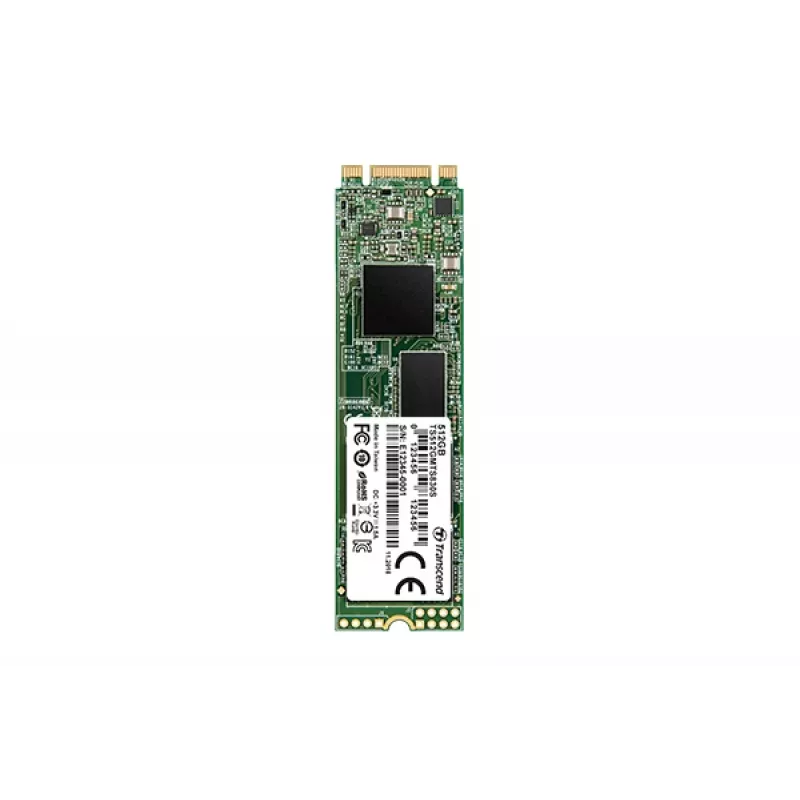

Disco SSD Transcend 512 GB M.2 6 Gbit/s TS512GMTS830S

Transcend's ultra-compact M.2 SSD 830S (TS512GMTS830S) provides 512 GB of solid-state storage in an M.2 2280/2242-compatible form factor for Ultrabooks and thin notebooks. Built with 3D NAND flash, a DDR3 DRAM cache and enhanced firmware features, this SATA III 6Gb/s drive is designed to deliver fast read/write performance, high IOPS and reliable operation in space-constrained systems.

Advantages

The M.2 SSD 830S combines 3D NAND density and endurance with a SATA III 6Gb/s interface to achieve sequential read speeds up to 560 MB/s and write speeds around 500 MB/s, alongside high random 4K IOPS (up to 90,000) for faster application loading and system responsiveness. Its compact M.2 form factor (compatible with Type 2242 and 2280) enables easy upgrades in Ultrabooks and lightweight notebooks while onboard DDR3 DRAM cache and firmware features such as ECC, wear-leveling and garbage collection improve sustained performance and data integrity.

Suitable for

Key specifications

How to use

Install the M.2 SSD 830S into an available compatible M.2 slot on your notebook or motherboard following the device manufacturer’s instructions. Secure the module with the appropriate standoff and screw for the chosen length (2242 or 2280). Initialize, partition and format the drive in your operating system, then clone your existing system or install a fresh OS as required. Use the drive as a primary system disk or as a cache/secondary storage to improve overall system performance.

Recommendations

For best results, ensure your system supports SATA III over M.2 (not NVMe-only slots). Keep Transcend SSD Scope or other drive-management software up to date to monitor drive health, update firmware if available, and run optimization tools such as TRIM to maintain performance.
