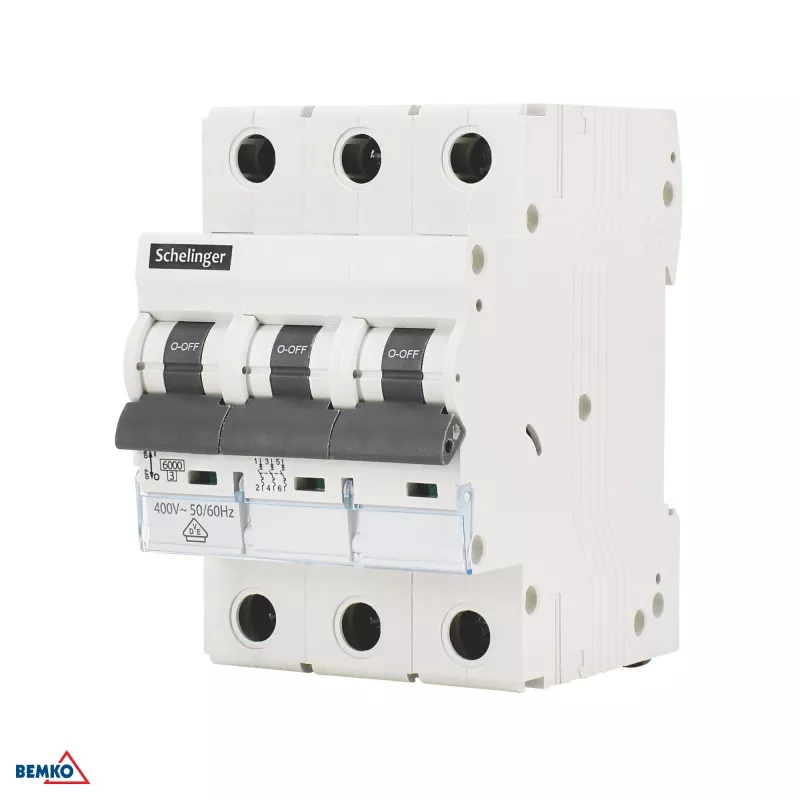

Disjuntor SCHELINGER 6kA 3P B 16A VDE

The SCHELINGER A02-G8-3P-B16 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in electrical installations. With a 3-pole configuration, B tripping curve, and 16A rated current, it ensures safe operation for residential and commercial applications. Compliant with EN 60898-1 and certified by VDE and CE, this MCB offers robust performance and durability.

Advantages

This MCB provides precise protection against overloads and short circuits, with a breaking capacity of 6kA. Its compact 3-module width (54mm) saves space on DIN rails. The screw terminals accommodate conductors up to 25mm², ensuring secure connections. With an electrical endurance of over 10,000 cycles and mechanical endurance of over 20,000 cycles, it guarantees long-lasting reliability.

Suitable for

• Residential electrical panels
• Commercial building distribution boards
• Industrial control cabinets
• Lighting and socket circuits

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P (Three-Pole)
• Rated Current (In): 16 A
• Tripping Curve: B
• Short-circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 230/400 V AC
• Rated Frequency: 50/60 Hz
• Mounting Type: DIN Rail (EN 60715)
• Terminal Type: Screw Terminals
• Terminal Capacity: 1-25 mm² (Solid/Stranded)
• Protection Degree: IP20 (Terminals), IP40 (Enclosure)
• Electrical Endurance: ≥ 10,000 cycles
• Mechanical Endurance: ≥ 20,000 cycles
• Standard Compliance: EN 60898-1
• Certification: VDE, CE
• Energy Limiting Class: 3
• Operating Temperature Range: -25°C to +50°C
• Storage Temperature Range: -40°C to +70°C
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Module Width: 3 modules (approx. 54 mm)

Recommendations

For optimal protection, pair this MCB with appropriate residual current devices (RCDs) and ensure correct sizing according to the load. Always follow local electrical codes and regulations.
