Disjuntor SCHELINGER 6kA 3P B 6A VDE

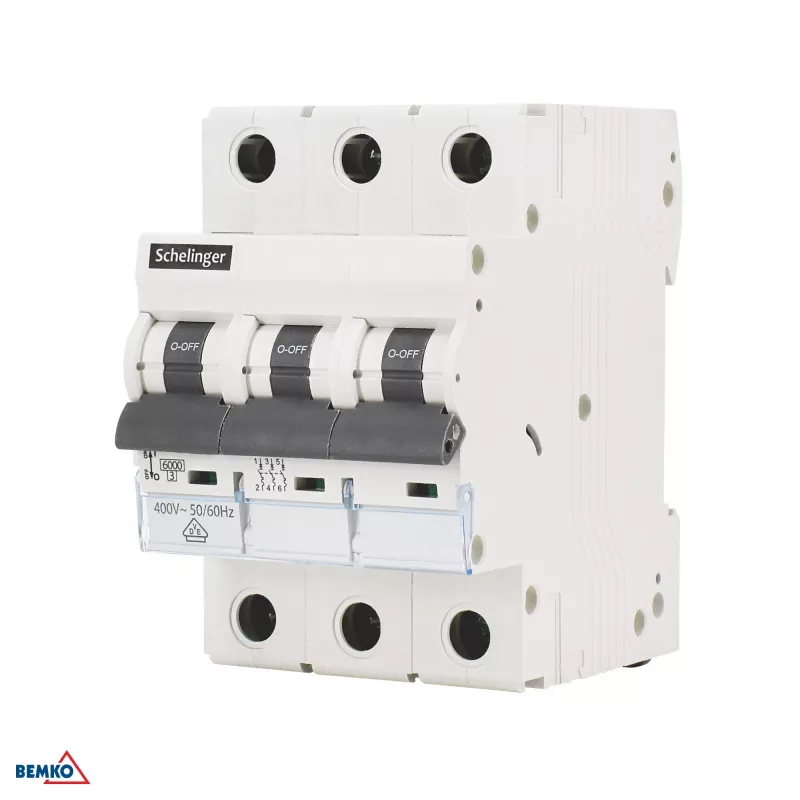

The SCHELINGER A02-G8-3P-B06 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in electrical installations. With a rated current of 6A and a tripping curve B, it ensures fast disconnection in case of short circuits while allowing for moderate inrush currents. This 3-pole MCB is compliant with VDE and EN 60898-1 standards, making it suitable for residential and commercial applications.

Advantages

This MCB offers robust protection with a breaking capacity of 6kA, ensuring safety in the event of a short circuit. Its compact design fits standard 35mm DIN rails, simplifying installation. The screw terminals accommodate conductors up to 25 mm², providing flexibility for various wiring configurations. With an energy limiting class of 3, it effectively reduces the energy let-through, protecting downstream equipment.

Suitable for

• Overcurrent protection in lighting circuits
• Protection of socket outlets and small appliances
• Distribution boards in residential and commercial buildings
• Industrial control panels requiring reliable circuit protection

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P
• Rated Current (In): 6 A
• Tripping Curve: B
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 400 V AC
• Rated Frequency: 50/60 Hz
• Mounting Type: DIN Rail (35mm)
• Standard Compliance: VDE, EN 60898-1
• Energy Limiting Class: 3
• Protection Degree: IP20
• Terminal Capacity: Up to 25 mm²
• Electrical Endurance: 10,000 cycles
• Mechanical Endurance: 20,000 cycles
• Operating Temperature Range: -25°C to +55°C
• Connection Type: Screw Terminals

Recommendations

For optimal performance, ensure that the MCB is installed by a qualified electrician and that the system's short-circuit capacity does not exceed 6kA. Regular testing is recommended to maintain safety standards.
