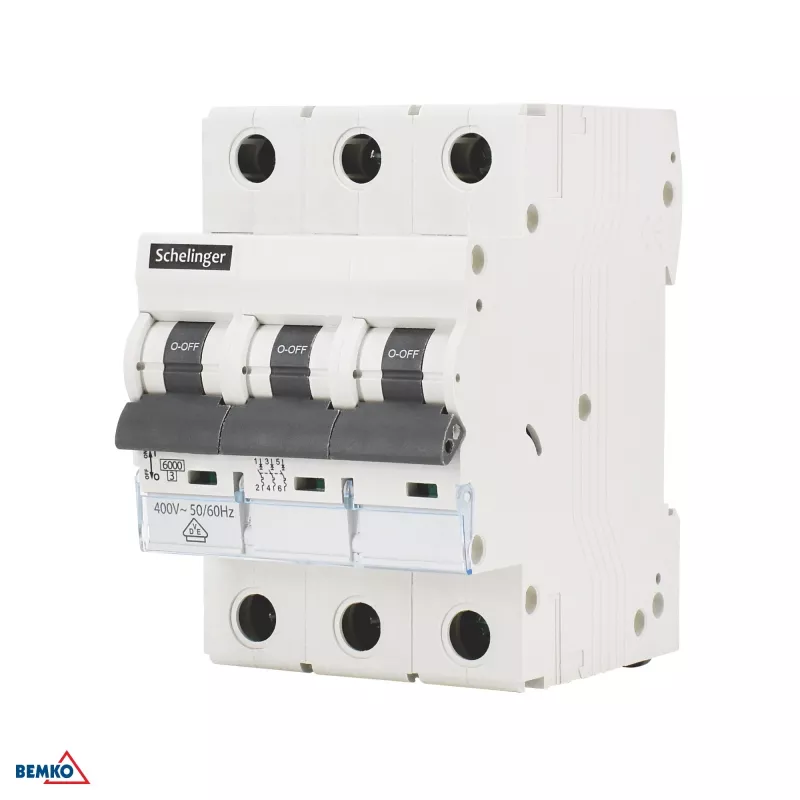

Disjuntor SCHELINGER 6kA 3P C 20A VDE

The SCHELINGER A02-G8-3P-C20 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent and short-circuit protection in electrical installations. With a 3-pole configuration, C-curve tripping characteristic, and a rated current of 20 A, it is ideal for protecting circuits with moderate inrush currents, such as lighting and general-purpose loads. Certified to VDE and CE standards, this MCB ensures safety and compliance with IEC/EN 60898-1.

Advantages

This MCB offers robust protection with a breaking capacity of 6 kA, ensuring safety in residential and commercial applications. Its compact 3-module design (52.5 mm) saves space on DIN rails, while screw terminals accommodate wires up to 25 mm² for easy installation. The C-curve is optimized for circuits with inductive loads, reducing nuisance tripping.

Suitable for

• Residential and commercial electrical panels
• Lighting circuits, socket outlets, and small appliances
• Protection of cables and equipment against overloads and short circuits

Key specifications

• Brand: SCHELINGER
• Model: A02-G8-3P-C20
• MPN: A02-G8-3P-C20
• EAN: 5900280970978
• Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P
• Rated Current: 20 A
• Tripping Curve: C
• Short-circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage: 230/400 V AC
• Frequency: 50/60 Hz
• Mounting: DIN Rail
• Standards: IEC/EN 60898-1
• Certification: VDE, CE
• Protection Degree: IP20
• Terminal Capacity: 1-25 mm²
• Electrical Endurance: ≥ 10,000 cycles
• Mechanical Endurance: ≥ 20,000 cycles
• Operating Temperature: -25°C to +55°C
• Energy Limiting Class: 3
• Connection: Screw Terminals
• Modular Width: 3 Modules (52.5 mm)

Recommendations

For optimal protection, pair this MCB with a compatible residual current device (RCD) in your distribution board. Always follow local electrical codes and consult a qualified electrician for installation.
