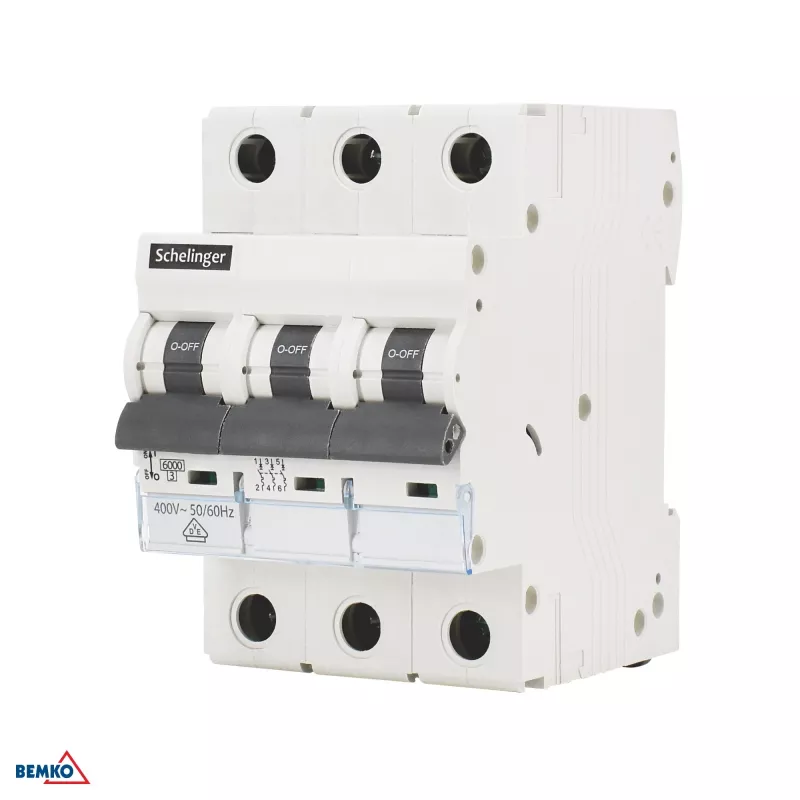

Disjuntor SCHELINGER A02-G8-3P-B20 6kA 3 polos B 20A VDE

The SCHELINGER A02-G8-3P-B20 is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent and short-circuit protection in electrical installations. With a rated breaking capacity of 6 kA and a Type B tripping curve, this 3-pole MCB is ideal for protecting circuits with resistive or inductive loads. It complies with IEC/EN 60898-1 standards and is VDE and CE certified, ensuring safety and performance.

Advantages

This MCB offers robust protection with a compact design suitable for DIN rail mounting. Its Type B curve ensures fast tripping for short circuits while allowing for normal inrush currents. The screw terminals accommodate solid conductors up to 25 mm² and flexible up to 16 mm², making installation easy. With an electrical life of 10,000 cycles and mechanical life of 20,000 cycles, it provides long-lasting reliability.

Suitable for

• Residential and commercial electrical panels
• Protection of lighting, heating, and general power circuits
• Industrial control systems requiring 3-pole protection

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3-Pole
• Rated Current: 20 A
• Tripping Curve: Type B
• Rated Breaking Capacity: 6 kA
• Rated Voltage (AC): 230/400 V AC
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Standard Compliance: IEC/EN 60898-1
• Certification: VDE, CE
• Protection Degree: IP20
• Electrical Life: 10,000 cycles
• Mechanical Life: 20,000 cycles
• Terminal Capacity (Solid): Up to 25 mm²
• Terminal Capacity (Flexible): Up to 16 mm²
• Energy Limiting Class: 3
• Operating Temperature Range: -25°C to +55°C
• Connection Type: Screw Terminals
• Overload Protection: Yes
• Short-Circuit Protection: Yes

Recommendations

For optimal protection, ensure the MCB is installed by a qualified electrician and that the rated current matches the circuit requirements. Regular testing is recommended to maintain safety.
