Dispositivo de captura de vídeo HDMI 4K POWER PLANT, LLC com loop-out, USB 3.0, latência ultrabaixa

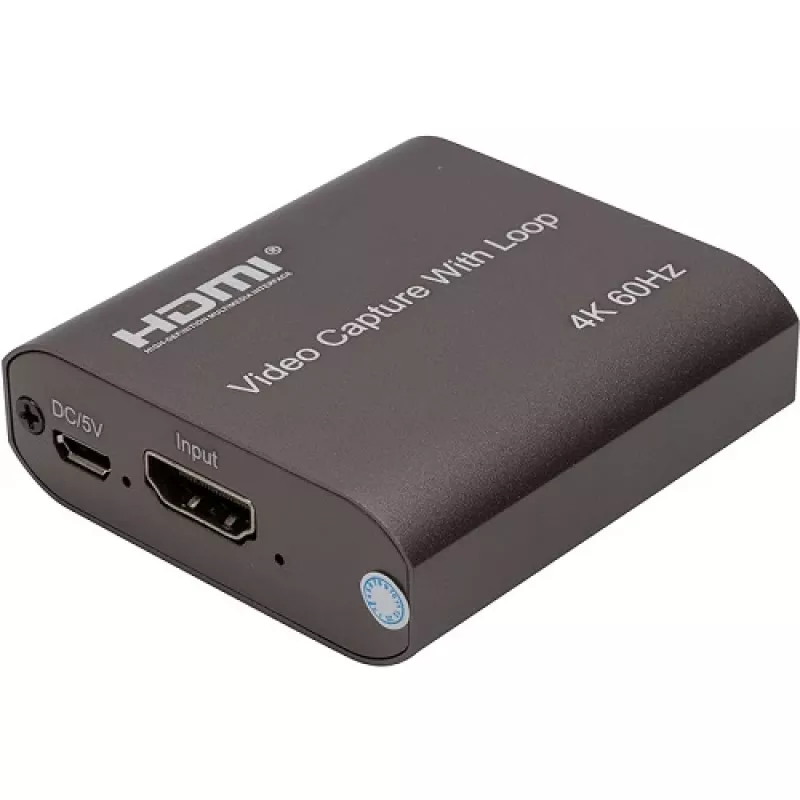

Most capture cards still cap at 1080p, but the POWER PLANT, LLC CA914166 handles full 4K UHD at 60Hz on both input and loop-out. That means you can record or stream in stunning detail while monitoring your feed on a separate display with zero lag. Built around an HDMI 2.0 interface and USB 3.0 UVC connectivity, this device is truly plug-and-play on Windows, macOS, and Linux — no driver installation needed. The aluminum alloy housing not only looks professional but also dissipates heat efficiently, so it stays cool even during marathon sessions.

Highlights

• 4K (3840x2160) input and loop-out at 60Hz with HDMI 2.0
• USB 3.0 UVC plug-and-play – no drivers needed
• Ultra-low latency (<50ms) for real-time streaming
• Supports 8/10/12-bit deep color and HDCP 2.2
• 3.5mm mic input and headphone output for audio monitoring
• Works with OBS Studio, XSplit, VLC, and more

In daily use

Connect your camera, console, or PC via HDMI and start capturing immediately. The loop-out port lets you send the signal to a monitor or TV without delay, while the USB 3.0 connection delivers high-bandwidth video to your computer. The built-in 3.5mm jacks allow you to add commentary or monitor audio directly, simplifying your setup. Whether you're recording gameplay, hosting a webinar, or archiving footage, this device delivers crisp, smooth video.

Full specifications

• Input interface: HDMI 2.0
• Output interface: USB 3.0 (UVC standard)
• HDMI loop-out: Yes (HDMI 2.0)
• Max input resolution: 4K (3840x2160) @ 60Hz
• Max loop-out resolution: 4K (3840x2160) @ 60Hz
• Max capture resolution: 4K (3840x2160) @ 30Hz or 1080p (1920x1080) @ 60Hz
• Video output format: YUV, JPEG
• Audio input: HDMI Embedded, 3.5mm Microphone Jack
• Audio output: HDMI Loop-out, 3.5mm Headphone Jack
• HDCP support: HDCP 2.2
• Supported operating systems: Windows 7/8/10/11, macOS, Linux
• Power supply: USB Bus-powered
• Material: Aluminum Alloy
• Latency: Ultra-low latency (<50ms)
• UVC standard: Yes (Plug & Play)
• Supported software: OBS Studio, VLC, XSplit, PotPlayer, Amcap
• Color depth: 8/10/12-bit Deep Color
• Max bandwidth: 18Gbps

Final note

For creators who demand 4K clarity and real-time responsiveness, the CA914166 is a reliable, no-fuss capture solution.
