Dispositivo de gestão de configuração Atomos AtomX Cast preto plástico DC

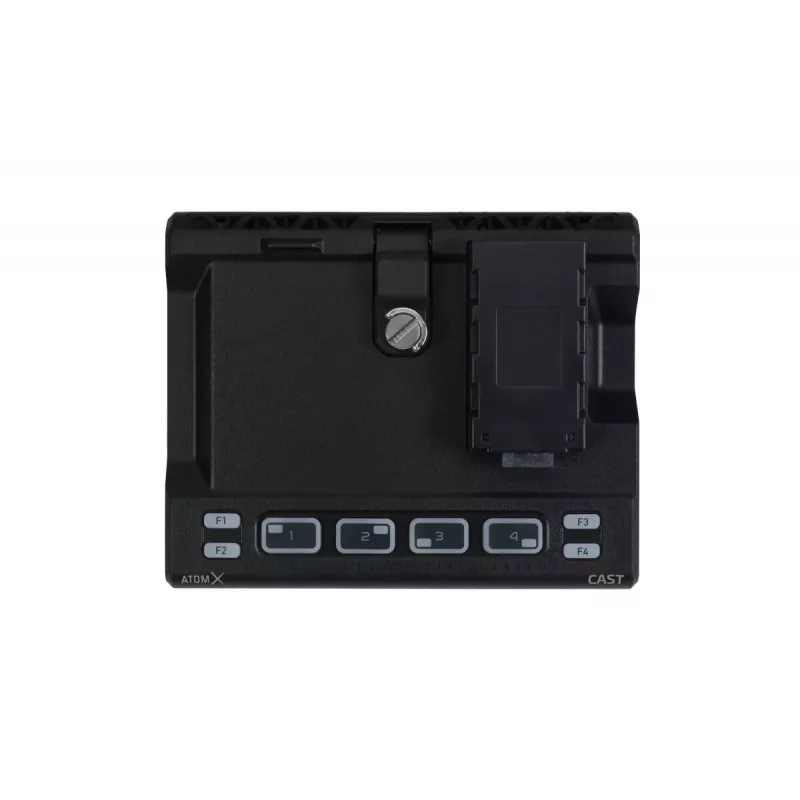

The Atomos AtomX CAST is a compact configuration and multi-camera switching device that connects up to four full HD HDMI sources and, when docked with a Ninja V or Ninja V+, appears to your computer as a high-quality USB-C webcam. Housed in a durable black plastic chassis and powered by DC, the unit is designed for portable use and integrates the Ninja’s 5” touchscreen monitor for setup, monitoring and simple control of overlays and multiview.

Advantages

AtomX CAST accepts mirrorless and DSLR cameras, camcorders, computers, game consoles or prerecorded HDMI sources and handles mixed frame rates up to 60p. When used with a Ninja V / V+ it provides integrated multiview monitoring and monitoring tools for exposure, focus and audio levels. The device supports picture-in-picture overlays, custom graphics with transparency, and can be used as a standalone hardware switcher or as a USB video source for streaming and conferencing applications without additional drivers.

Suitable for

• Live streaming and remote presentations
• Multicamera webcasts, webinars and online meetings
• Small broadcast and event production
• On-location shoots where portability is required

Key specifications

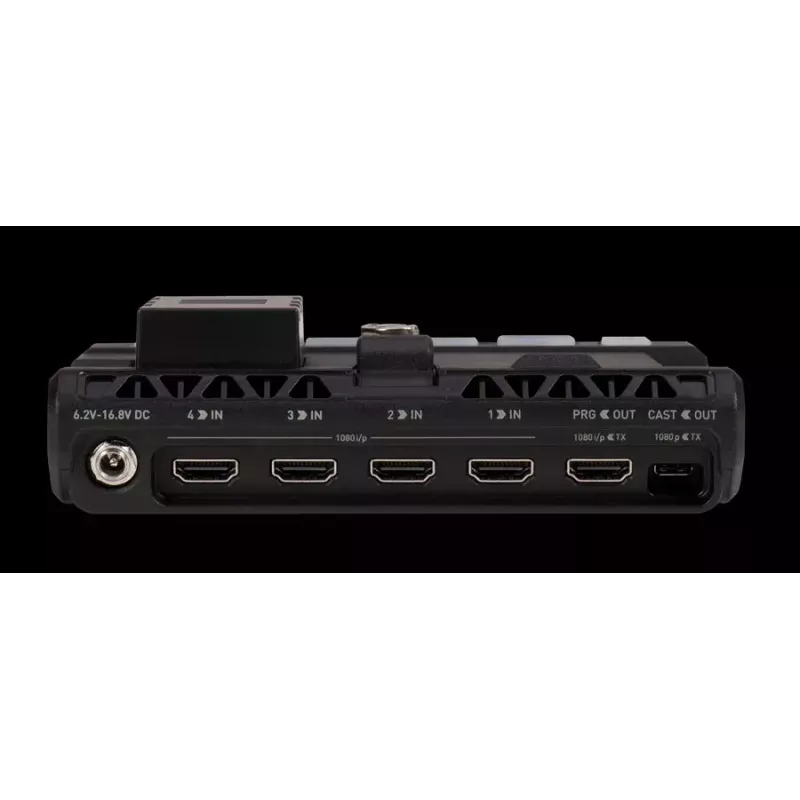

• Inputs: up to 4 HDMI full HD sources, supports mixed frame rates to 60p
• Outputs: USB-C webcam output to computer; HDMI program output (when Ninja is docked)
• Integrated monitoring: uses Ninja V / V+ 5” touchscreen for multiview and monitor-assist tools
• Video processing: 10-bit 4:2:2 input support and compatibility with broadcast codecs for recording (via Ninja)
• Graphics: support for logos, lower-thirds, masthead graphics and picture-in-picture with size and position control
• Power and housing: DC powered, compact black plastic housing; dimensions approx. 129 × 49 × 160 mm

How to use

Dock a Ninja V or Ninja V+ into the AtomX CAST, connect up to four HDMI video sources and attach the unit to a computer via USB-C. Use the Ninja touchscreen to configure multiview, overlays, picture-in-picture and audio monitoring. For streaming or conferencing, select the AtomX CAST as the webcam/video source in applications such as Zoom, Teams or OBS. Optionally use the Ninja HDMI output for a program feed or larger monitoring display while the CAST handles switching and graphics.

Recommendations

For best results, use cameras with clean HDMI output and set consistent exposure and color settings across sources. Position the Ninja’s touchscreen for easy access to monitor-assist tools and add external capture or recording on the Ninja for archive-quality ProRes or DNx recordings. Ensure reliable DC power and stable USB-C connection when streaming or presenting live.
