Dissipador de ar DeepCool AK400 Digital PRO — ventoinha 120 mm, PWM, 1850 rpm, FDB, suporta LGA 1700/1200/115x/AM4/AM5, preto

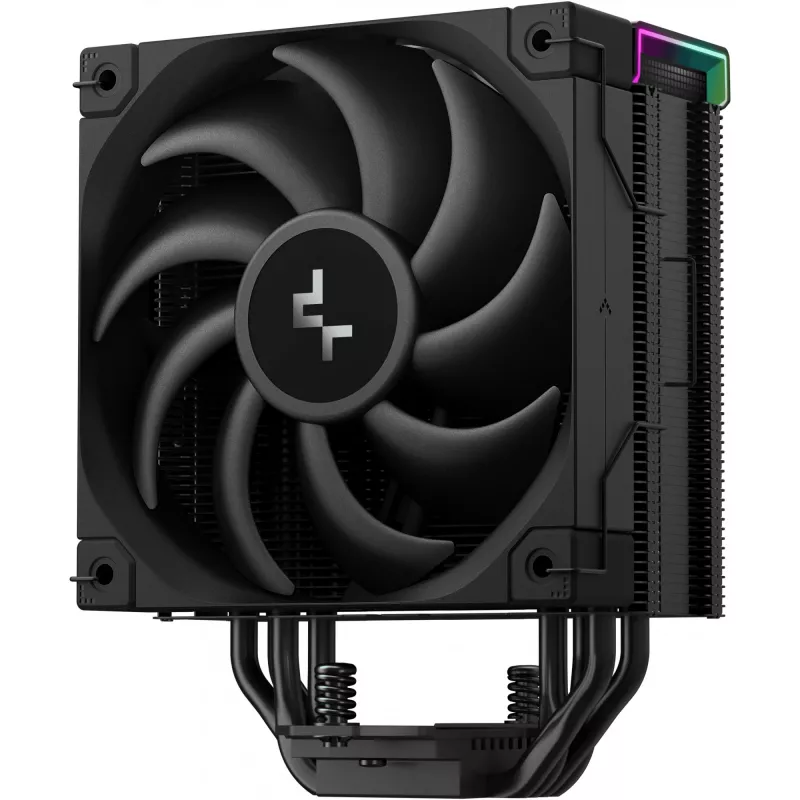

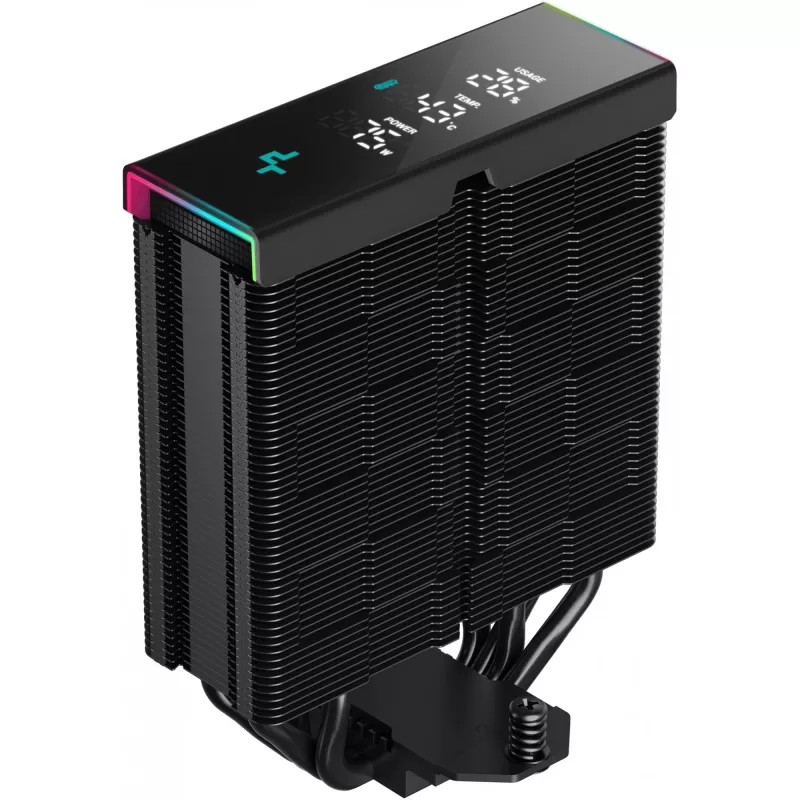

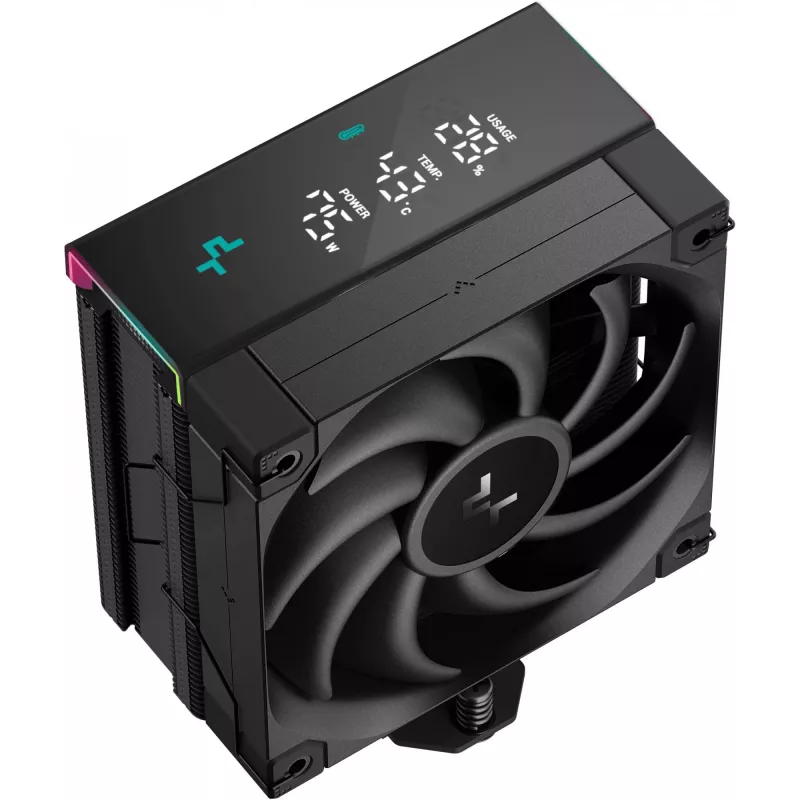

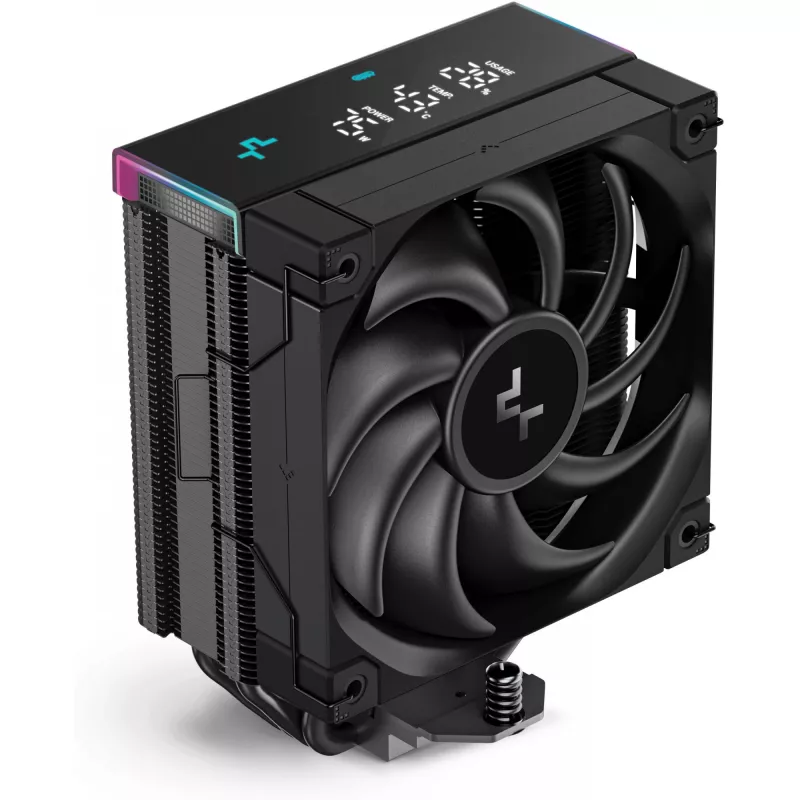

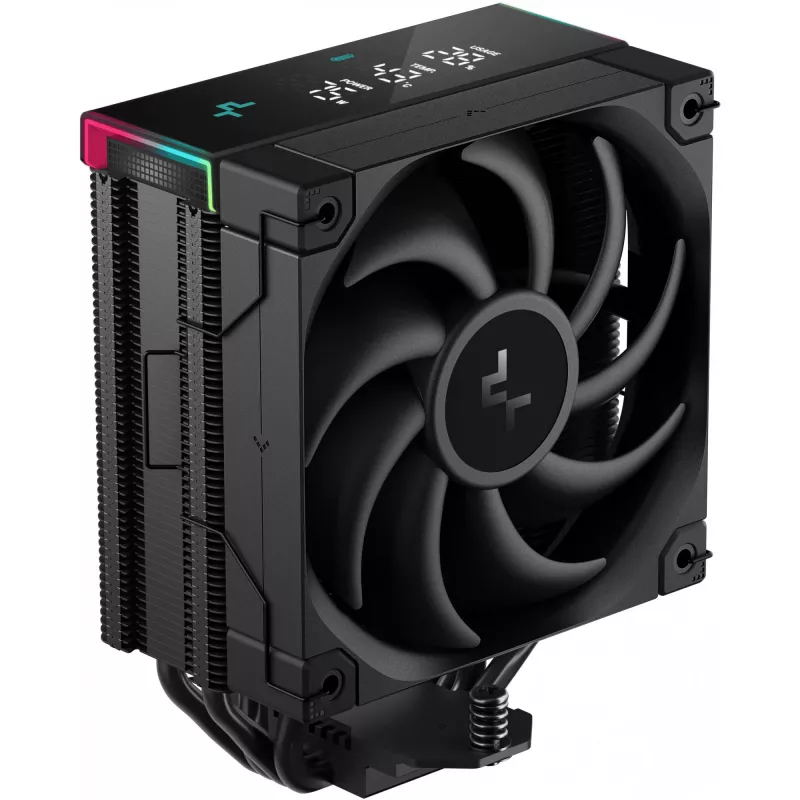

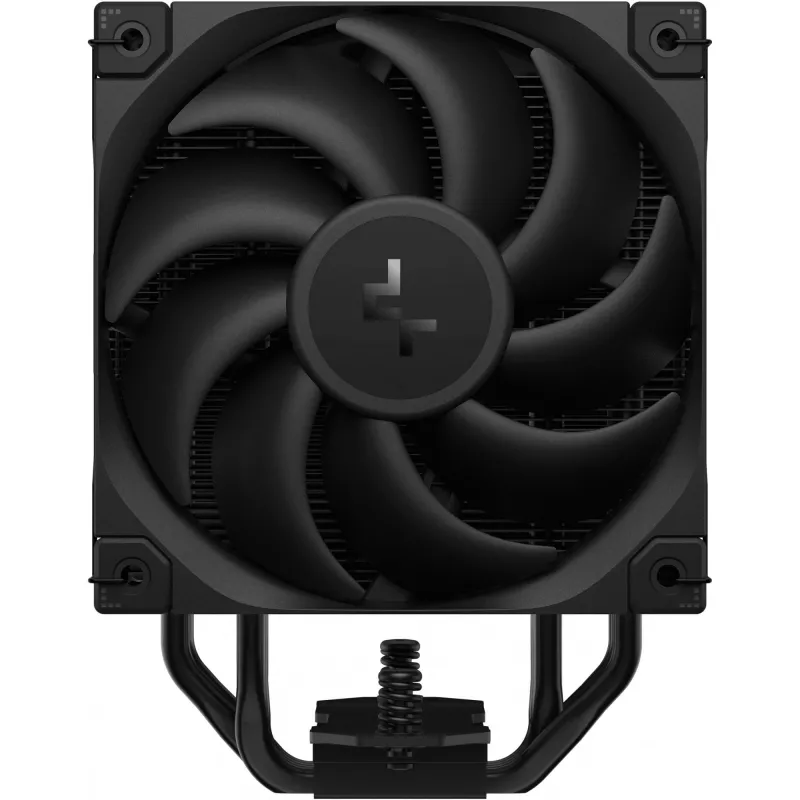

The DeepCool AK400 DIGITAL PRO is a compact air cooler with a 120 mm fan and improved thermal design. It features a multi-data point screen that displays temperature, usage and wattage, color-coded temperature alerts, and Core Touch Technology (CTT) 2.0 heatpipe coldplate layout for improved heat transfer. The cooler uses four copper heatpipes, a dense tower heatsink matrix and a silent fluid-dynamic bearing (FDB) fan in an all-black finish. Its dimensions and mounting compatibility make it suitable for a wide range of Intel and AMD mainstream platforms.

Advantages

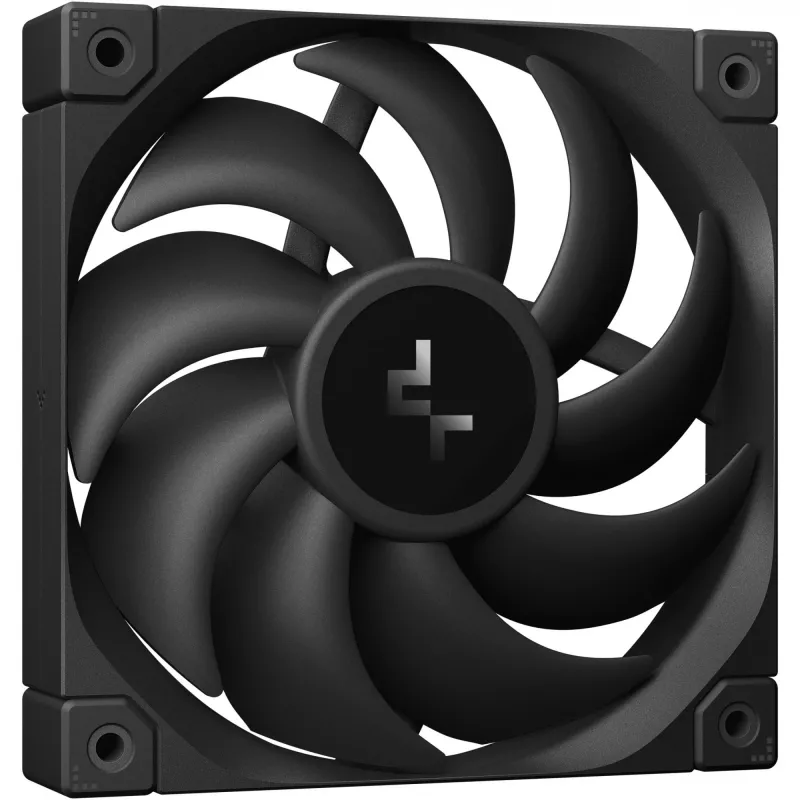

The AK400 DIGITAL PRO combines an enhanced status display with visual temperature warnings to provide immediate system feedback, while CTT 2.0 and optimized heatpipe arrangement increase cooling efficiency. The FT12 SE PWM fan with fluid dynamic bearing balances airflow and static pressure with reduced acoustic output. Durable mounting hardware simplifies installation and ensures consistent contact across supported sockets.

Suitable for

• Cooling mainstream Intel desktop CPUs (LGA 1150 / 1151 / 1155 / 1200 / 1700)
• Cooling AMD desktop CPUs (Socket AM4, Socket AM5)
• Compact ATX, micro-ATX and mini-ITX PC builds requiring a 120 mm tower cooler
• Users who want visual temperature indications and on-device status readouts

Key specifications

• Type: Air cooler
• Fan diameter: 120 x 120 x 25 mm
• Maximum air pressure: 2.91 mmH2O
• Airflow: 60.89 CFM
• Fan control: PWM support

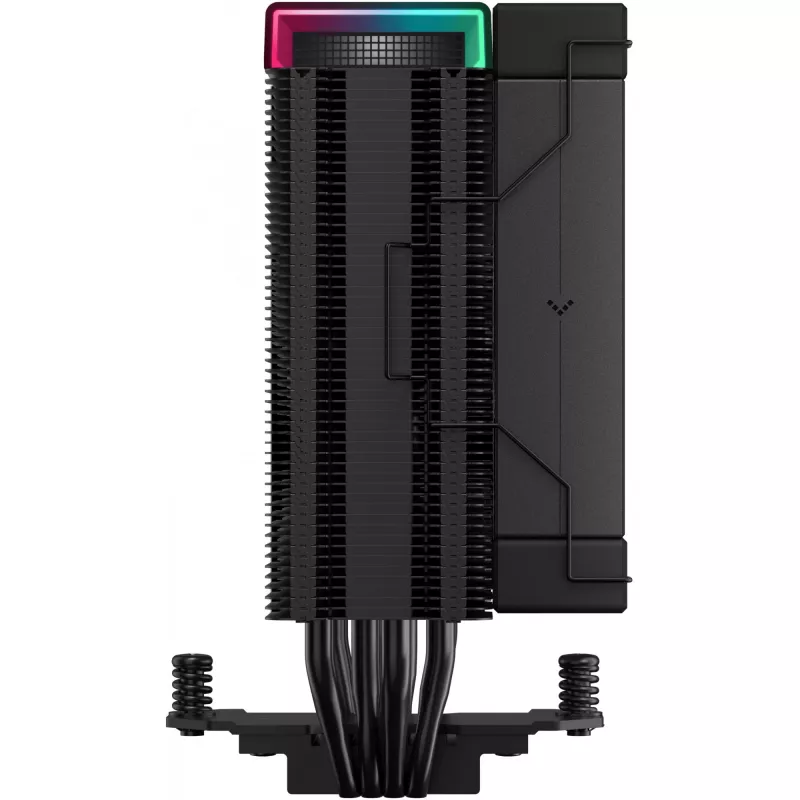

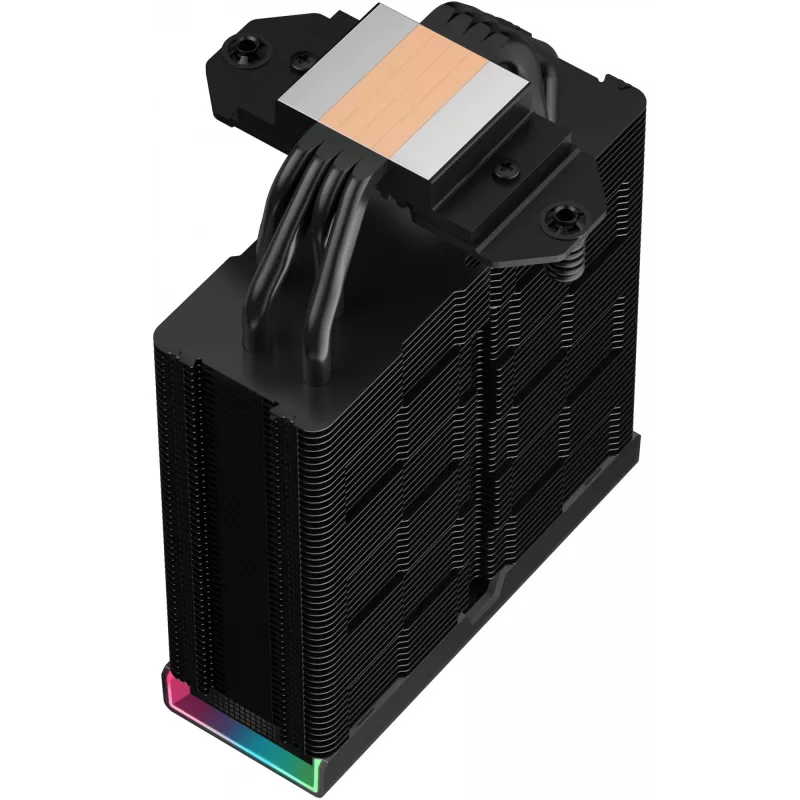

• Heatpipe design: 4 copper heatpipes with CTT 2.0 direct-touch coldplate
• Compatibility: LGA 1700, LGA 1200 (H5), LGA 1155 (H2), LGA 1151 (H4), LGA 1150 (H3), Socket AM4, Socket AM5
• Dimensions (approx.): 97 mm (W) x 126 mm (D) x 156 mm (H)
• Weight: 0.862 kg
• Color: Black
• Quantity: 1 pc

How to use

Install the AK400 DIGITAL PRO using the supplied mounting hardware following the platform-specific instructions to ensure even pressure and correct contact with the CPU integrated heatspreader. Connect the fan PWM cable to the motherboard fan header and the display USB cable to an available USB 2.0 header to enable on-screen readouts via DeepCool software. Configure fan curves and monitor temperature, usage and wattage through the software as needed.

Recommendations

Place the cooler in a case with adequate airflow and ensure the front-to-back fan orientation matches your system airflow plan. Monitor the color-coded display for temperature alerts and adjust fan curves or case ventilation if the indicator reaches orange or red. Use the DeepCool software for display settings and real-time monitoring.
