Distribuidor de energia Bachmann 902.003 3 saídas AC preto prateado

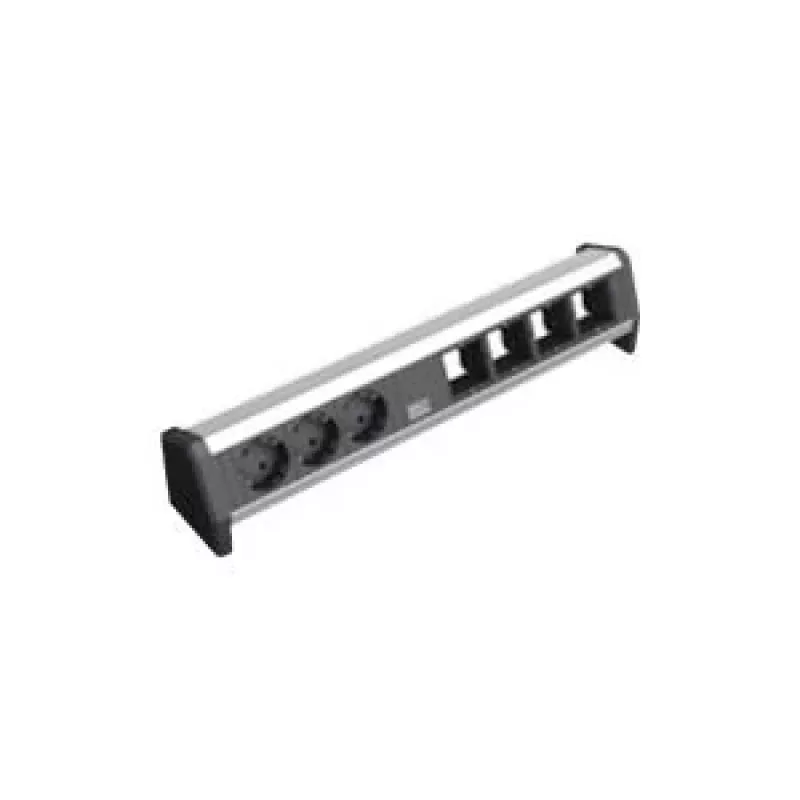

Bachmann DESK 1 power extension (model 902.003) provides a compact desk-mounted supply with three angled AC outlets and a GST18i3 power connector. The unit features an aluminium silver profile and a black finish for the sockets, supports mains voltage 230 V and a maximum current of 16 A. It is designed to be fixed to the edge of a desk or table using a clamp-style mounting bracket that does not damage the tabletop; installation requires a size 4 Allen key to tighten the inner screw of the bracket. Total length is 450 mm and the module configuration includes four custom module slots with three fitted socket outlets.

Advantages

The power extension combines a slim aluminium profile with three grounded AC outlets set at a 35° angle to allow convenient cable routing. Its clamp mounting secures the unit to the desk edge without permanently altering the surface, and the integrated GST18i3 plug and socket provide a standardised power connection. The 16 A / 230 V rating is suitable for typical office and home electronic equipment.

Suitable for

• Powering desktop computers, monitors and peripherals
• Workstations in offices and home offices
• Meeting rooms and shared desks
• Temporary setups where non‑destructive desk mounting is required

Key specifications

• Length: 450 mm
• Rated voltage: 230 V
• Rated current: max. 16 A
• Profile material and colour: aluminium, silver
• Sockets: 3× AC outlets with earthing contact, black, set at 35°
• Modules: 4× custom module slots (3 fitted with sockets)
• Power inlet/outlet: GST18i3 plug and GST18i3 socket (black)
• Mounting: clamp bracket for desk/table edge (requires size 4 Allen key)

How to use

Position the Bachmann DESK 1 along the desired desk edge and place the clamp bracket over the tabletop. Use a size 4 Allen key to tighten the inner screw of the bracket until the unit is held securely; take care not to over‑tighten. Connect the GST18i3 plug to a compatible power supply or distribution system. Plug in your devices into the three angled AC outlets and route cables as needed.

Recommendations

Connect only to a compatible GST18i3 power source and do not exceed the rated current of 16 A. Ensure the clamp is mounted on a stable desk edge of suitable thickness and avoid overtightening to prevent deformation. Regularly inspect the unit and connectors for damage and disconnect before cleaning or performing maintenance.
