Distribuidor de sinal TV/SAT CORAB de 4 vias 5-2400 MHz com passagem DC

Distribute your TV or satellite signal across four separate lines with the CORAB 4-way splitter, engineered to handle the full 5–2400 MHz spectrum. Whether you're feeding multiple receivers or extending coverage to different rooms, this splitter maintains signal integrity with low insertion loss and high isolation between outputs.

Overview

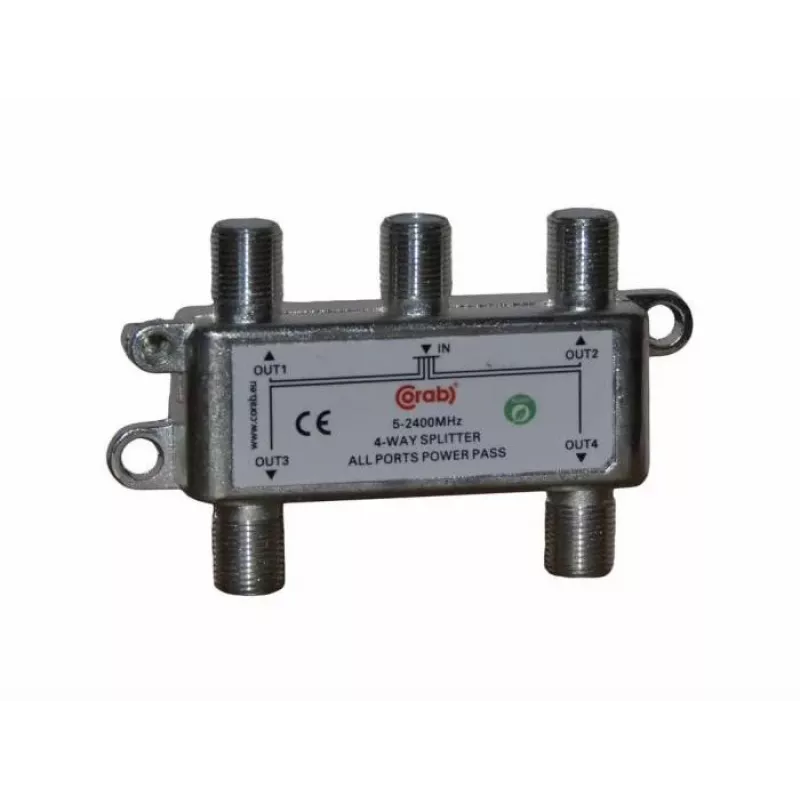

The CORAB Y_SPL0003 is a professional-grade signal splitter designed for satellite and terrestrial TV installations. Its die-cast zinc housing with nickel plating provides excellent shielding against electromagnetic interference, ensuring clean signal transmission even in demanding environments. The unit features one input and four outputs, all with F-type female connectors for secure and reliable connections.

What stands out

• Wide frequency range: 5–2400 MHz, covering terrestrial TV, cable, and satellite bands.
• DC pass-through on one output allows powering an LNB or preamplifier up to 24 V / 500 mA.
• High isolation between outputs (>20 dB below 860 MHz, >16 dB up to 2400 MHz) minimizes crosstalk.
• Low insertion loss across all bands, with maximum 10 dB at the highest frequencies.
• Robust die-cast zinc housing, nickel-plated for corrosion resistance and superior shielding (Class A).

Technical details

• Frequency range: 5–2400 MHz
• Inputs: 1
• Outputs: 4
• Impedance: 75 Ohm
• Connector type: F-type (female)
• DC pass-through: Yes (one output)
• Max DC pass voltage: 24 V
• Max DC pass current: 500 mA
• Insertion loss: <7.5 dB (5–470 MHz), <8.0 dB (470–860 MHz), <9.0 dB (950–1750 MHz), <10.0 dB (1750–2400 MHz)
• Isolation (output-output): >20 dB (5–860 MHz), >16 dB (950–2400 MHz)
• Return loss: >12 dB (5–860 MHz), >8 dB (950–2400 MHz)
• Shielding effectiveness: Class A
• Housing material: Die-cast zinc, nickel-plated

Our verdict

The CORAB 4-way splitter is a reliable choice for multi-room TV and satellite distribution. Its wide bandwidth, DC pass-through capability, and rugged construction make it suitable for both residential and commercial installations. The excellent isolation and shielding ensure that each connected device receives a clean, stable signal.
